BS-1 Precision Dividing Head With 6″ 3-jaw Chuck & Tailstock

Sale!

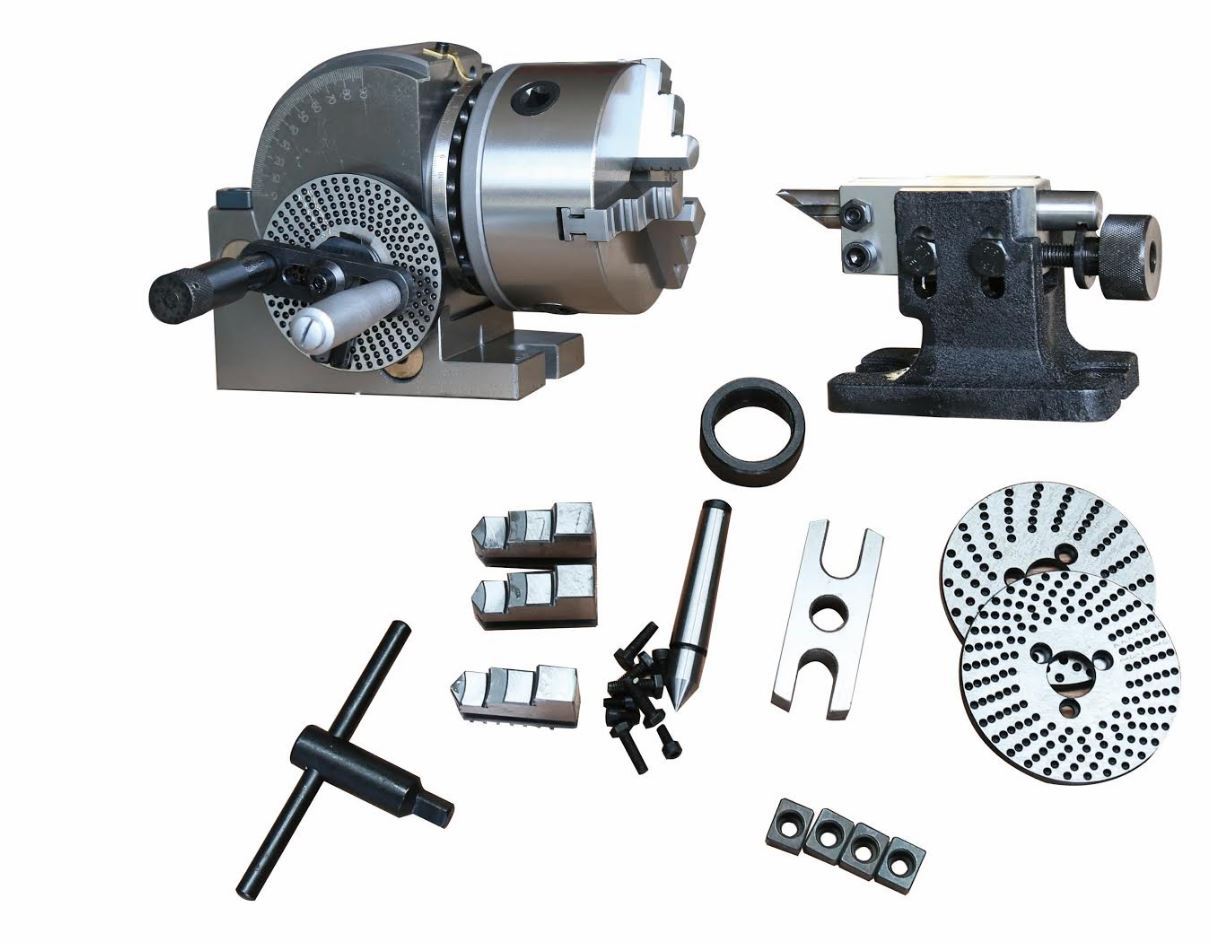

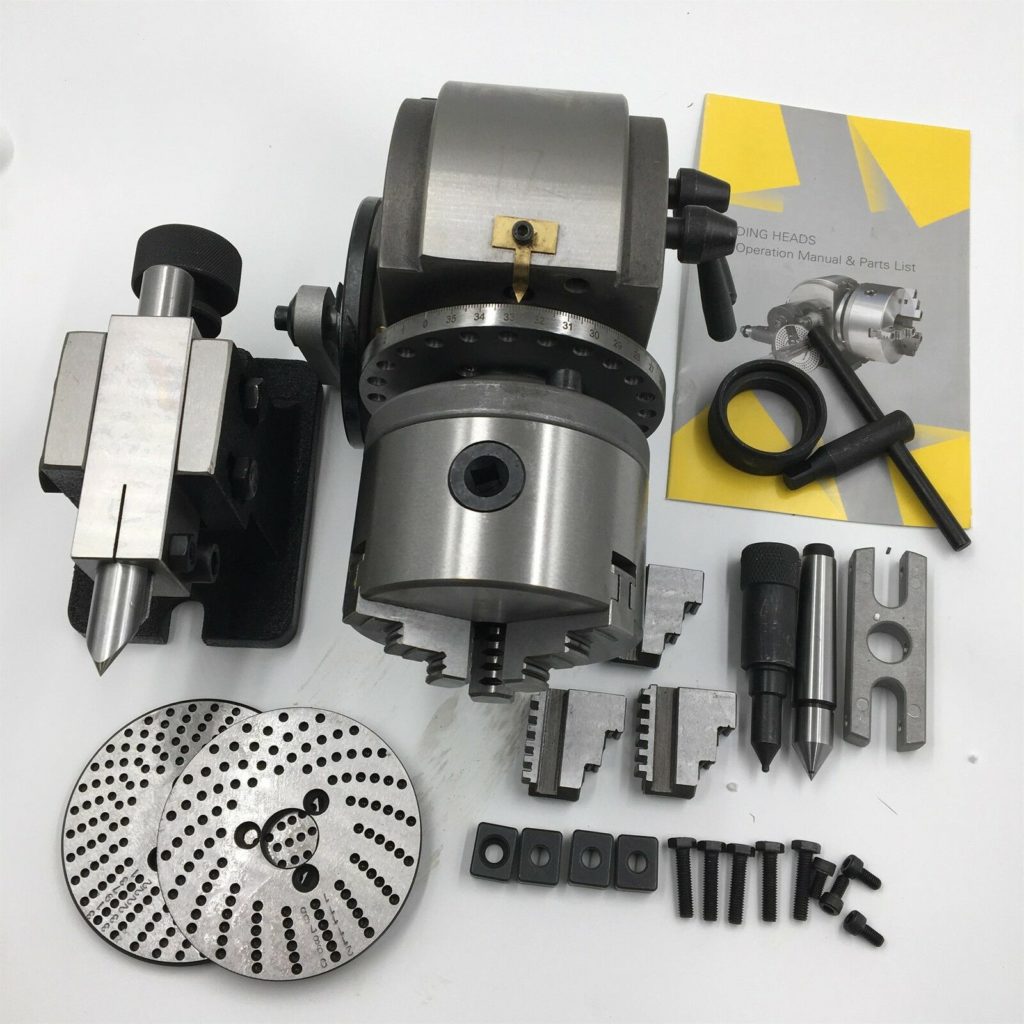

NEW ! BS1 DIVIDING HEAD COMPLETE WITH
DIVIDING PLATES , TAILSTOCK & 6″ 3 JAW CHUCK
FEATURES
Can be easily adjusted to any angle between –
100 to +900 from a horizontal position.

SEMI UNIVERSAL DIVIDING HEAD WITH TAIL STOCK AND DIVIDING PLATES
Hardened and ground spindleis rigidly held in
a taper roller bearing.
Divide any angle by the direct, indirect or
differential methods.
Spiral machining capability.

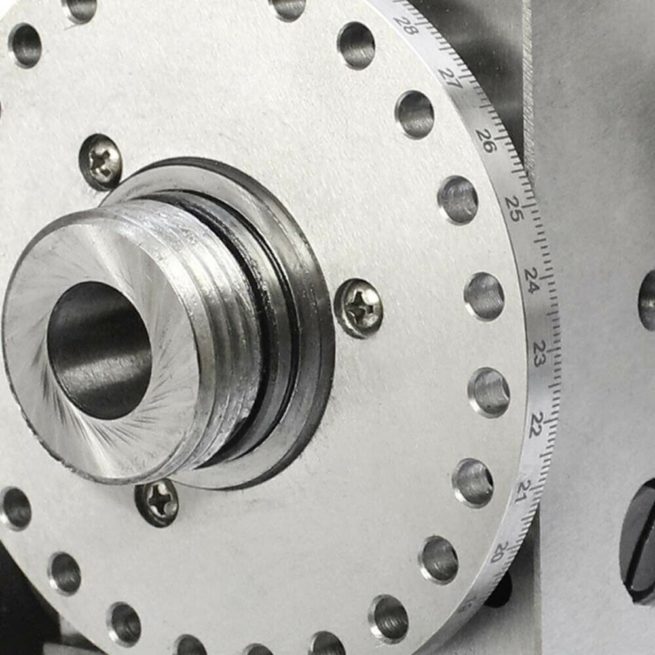

All models have threaded spindle nose and 24
hole dividing plate with easy conversion to fast
direct indexing on numbers 2,3.4.6.8.12,and 24.
Hardened and ground worm gear has a 40 to 1ratio.
Positive locking mechanism uses a 360 °brake shoe.
Accurate precision. Little back lash, fine appearance
and strong structure so can assure smooth rotation.
Three dividing plates are included.
Dividing plates holes are:
plate A:15/16/17/18/19/20,
plate B:21/23/27/29/31/33.
plate C:37/39/41/43/47/49.
160MM 3-jaw chuck included.


£393.71 £374.17

Price includes mainland delivery (UK)

After adding to the basket, you can checkout and choose to pay with PayPal or a credit / debit card. You can also buy this product and pay directly with PayPal by clicking the button below....

Click Here for the User Manual

BS-1 Precision Dividing Head With 6″ 3-jaw Chuck & Tailstock from Chronos.

Contact us for more info on BS-1 Precision Dividing Head With 6″ 3-jaw Chuck & Tailstock Price includes UK mainland delivery. Use the livechat below or email us for more info.

Carriage for the UK Mainland is FREE on all tool orders  - typically arriving within a few days.  NEXT DAY DELIVERY options are also available. Also great prices for European and Worldwide shipping on all engineering tools.

Chronos Product Code:
40208002
