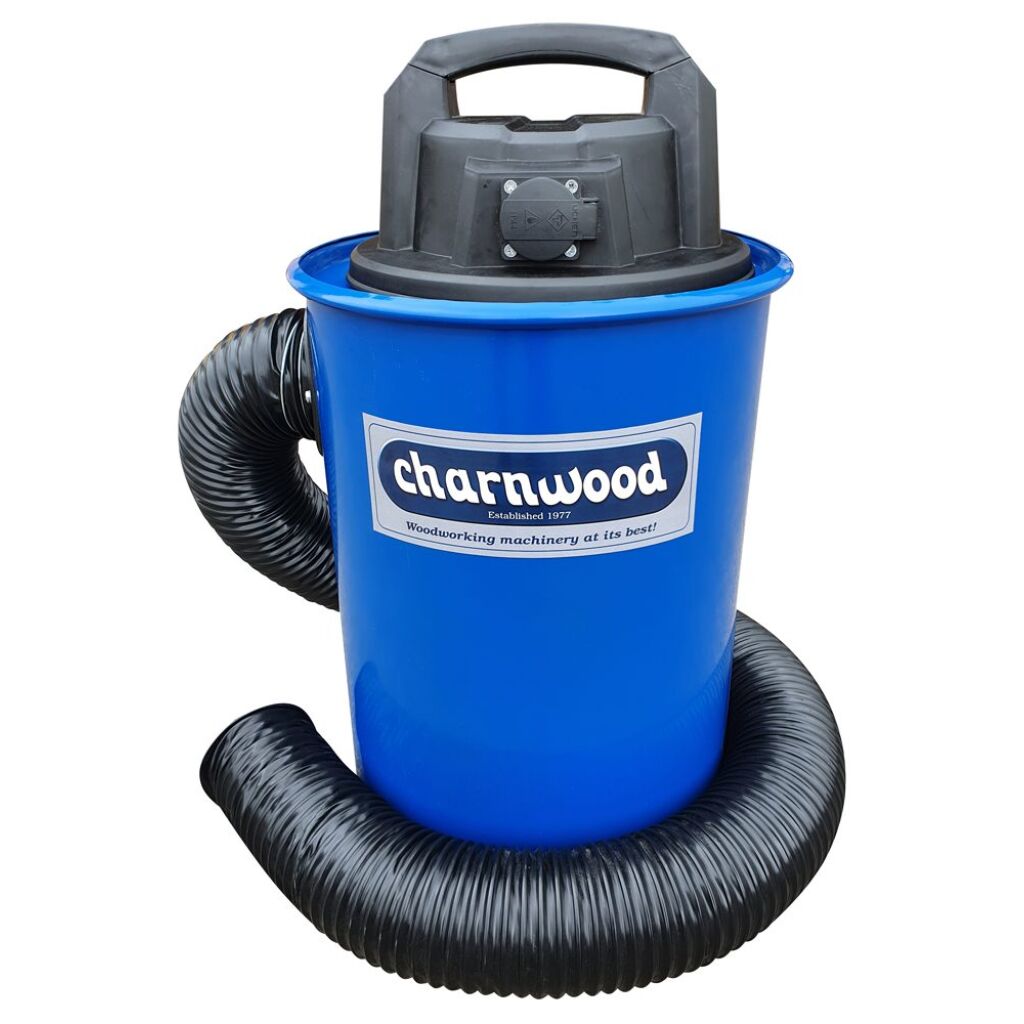

Charnwood DC50AUTO High Filtration Vacuum Extractor with Auto Start, 50L Capacity

£112.00.

High filtration vacuum extractor with auto start function. A great time saving feature, perfect for using with tools which make frequent small cuts, such as a mitre saw or bandsaw.

  • Filters Down to 0.5 Microns
  • Extraction starts and stops automatically
  • 50 Litre Collection Capacity
  • No Loss of Power with Small Diameter Hoses
  • 2 Metre Length of Flexible Hose Included

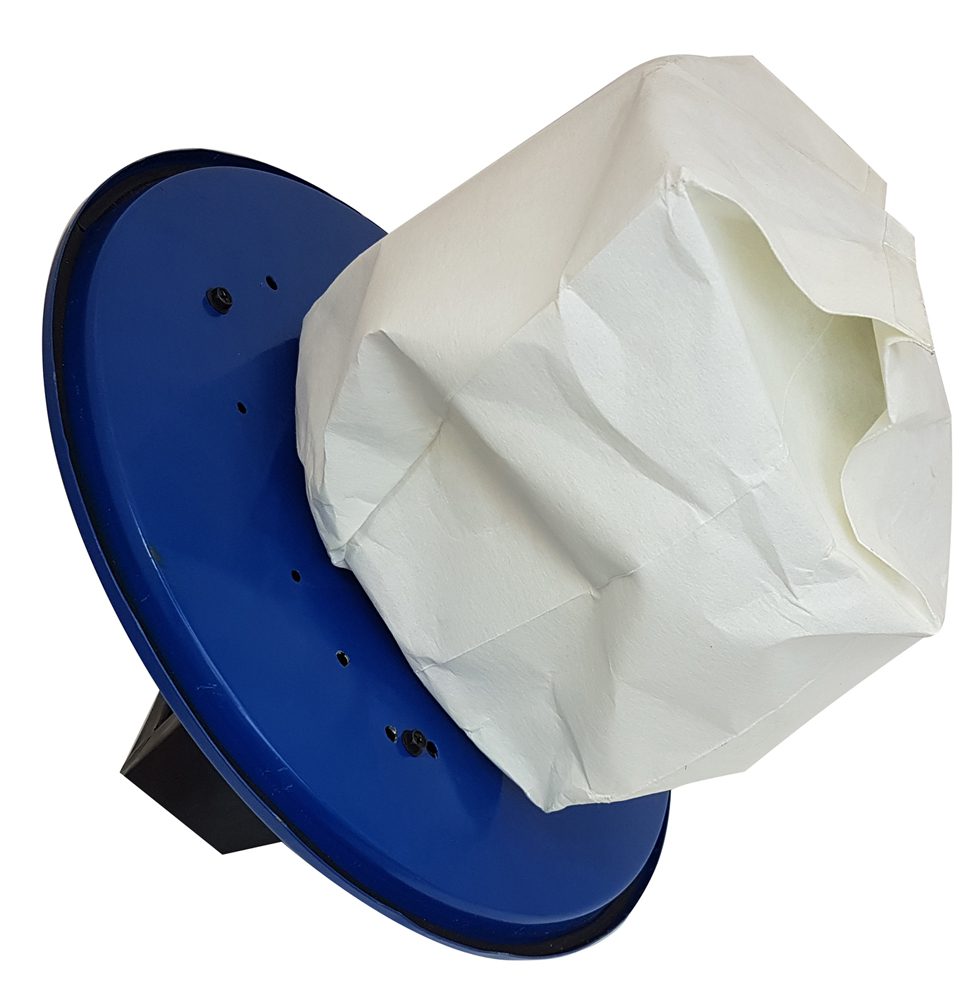

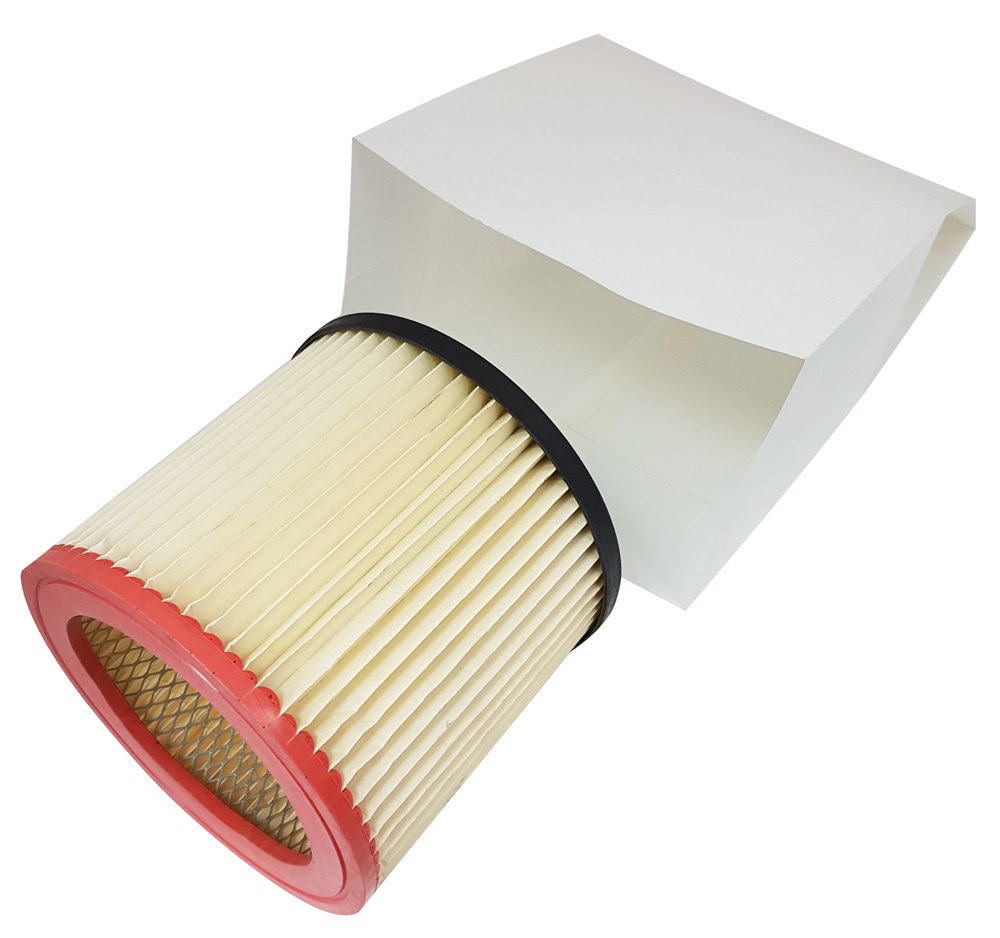

This fine filter vacuum extractor is ideal for small workshops using bench top machinery and power tools. Because these machines generate a high speed of air through the hose they are more suitable for reducing down to a smaller diameter hose for use with portable power tools. At the heart of the extractor is a 2 stage filter which cleans particles out of the air down to 0.5 micron. Fine enough for every machine in the workshop including sanders. The compact size and light weight, makes it particularly appealing for smaller workshops, where space is a premium, and it can be kept underneath a bench. A quick action clamp releases the lid of the drum to empty it out.

These extractors are a great alternative to a standard household vacuum because they do not get blocked and have a larger capacity, so need emptying less often.

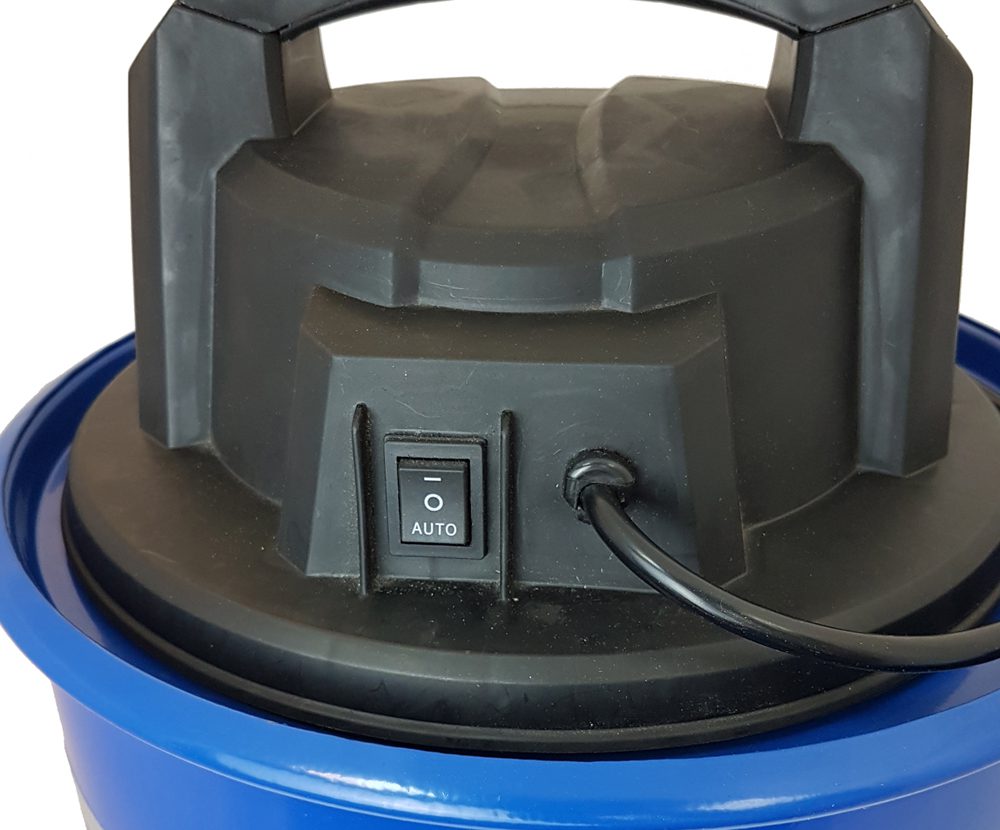

The extractor can be run as normal in manual mode, with a simple on/off switch.

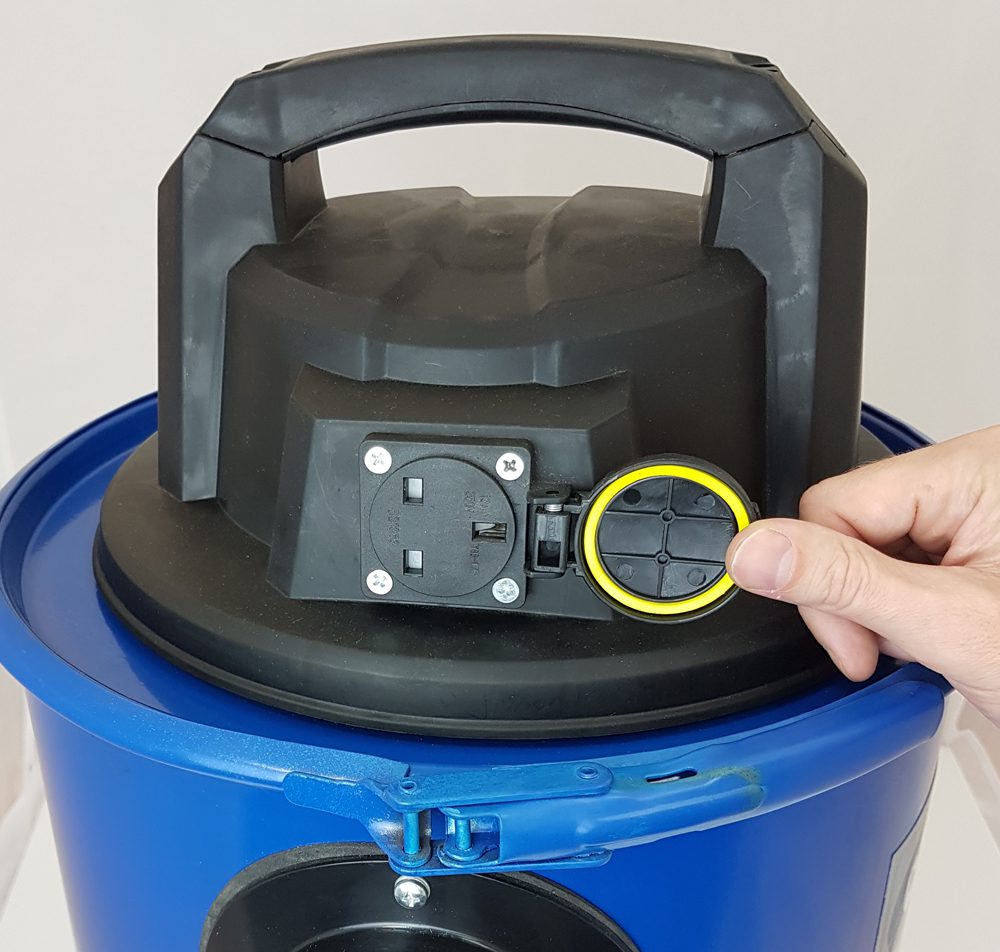

To operate with auto start function, simply plug your power tool into the integral 3 pin plug socket and set the switch to Auto. Now, the extractor will start whenever the power tool starts and will continue to run for a few seconds after the power tool is stopped to clear any remaining dust and chips from the hose.

Supplied with 2m hose, 2 hose clamps, 3 replacement filter bags, 2m cable and plug.

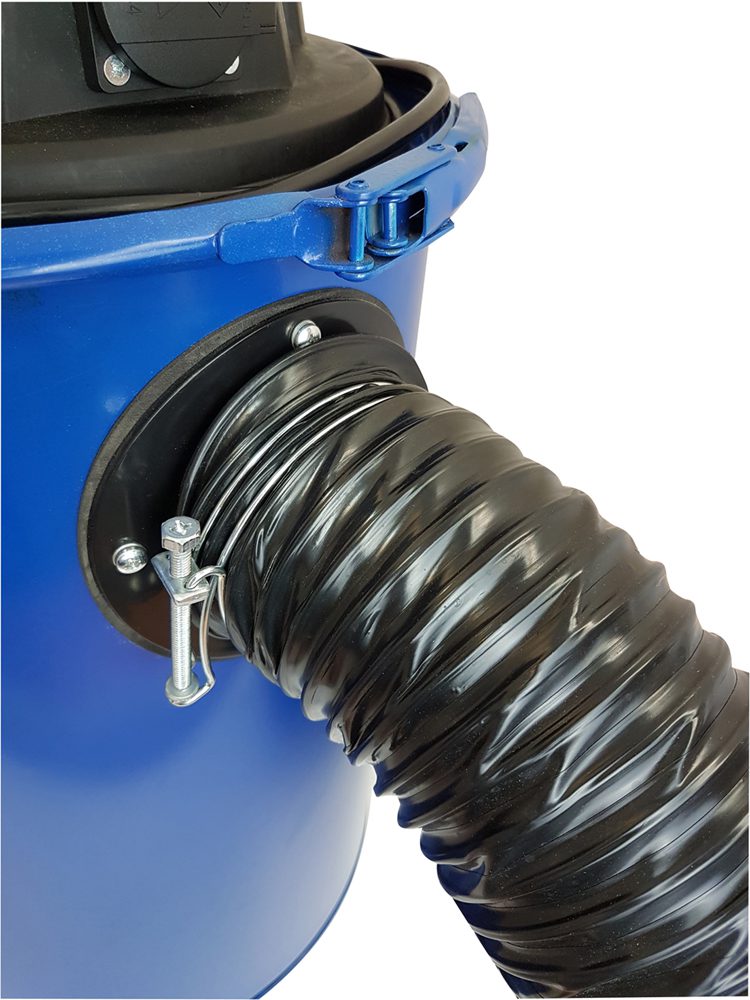

Please Note : Hose is Left Hand thread so for quick connector use 100QCL



Charnwood DC50AUTO Specification

Motor (carbon brush) 1100w (1.5hp), 220-240v, 50Hz
Flowrate 3.05m3/min (53 Litres per second)
Inlet Diameter 93mm (For 100mm Hose)
Maximum Power Tool Rating 2200w
Drum Capacity 50 Litres
Dimensions (WxDxH) 390mm x 450mm x 670mm
Weight 10kg
Assembly Time Required 5 Minutes
Max. Runtime Without Rest 30 Minutes
Rating Hobby
Product Guarantee 5 Years





DC50AUTO-Owners-Manual





Listed with ExportYourStore.com

Availability: In stock
