Glanze Indexable Through Coolant CCMT Boring Bar – 6 mm Shank SORRY OUT OF STOCK

£34.28

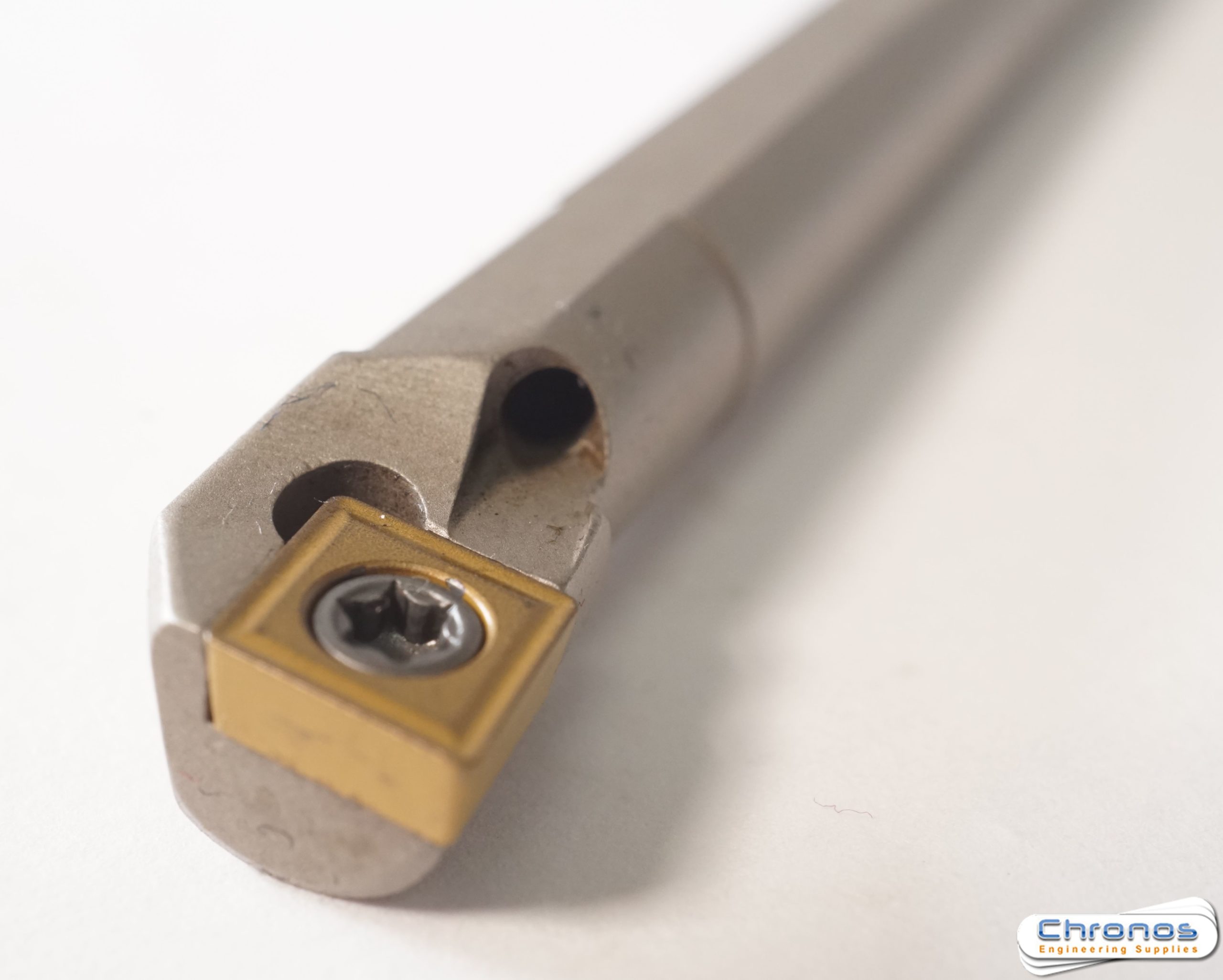

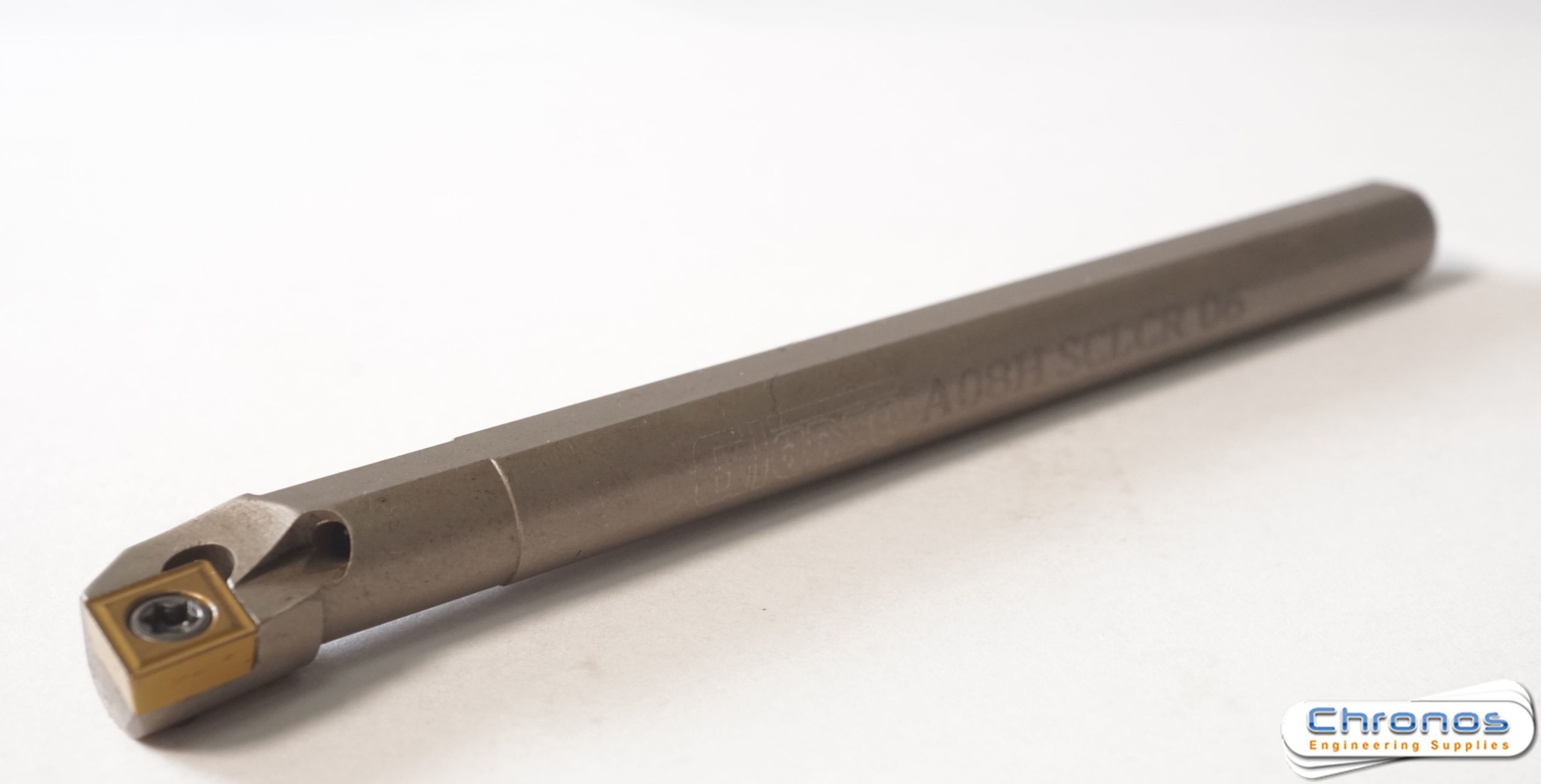

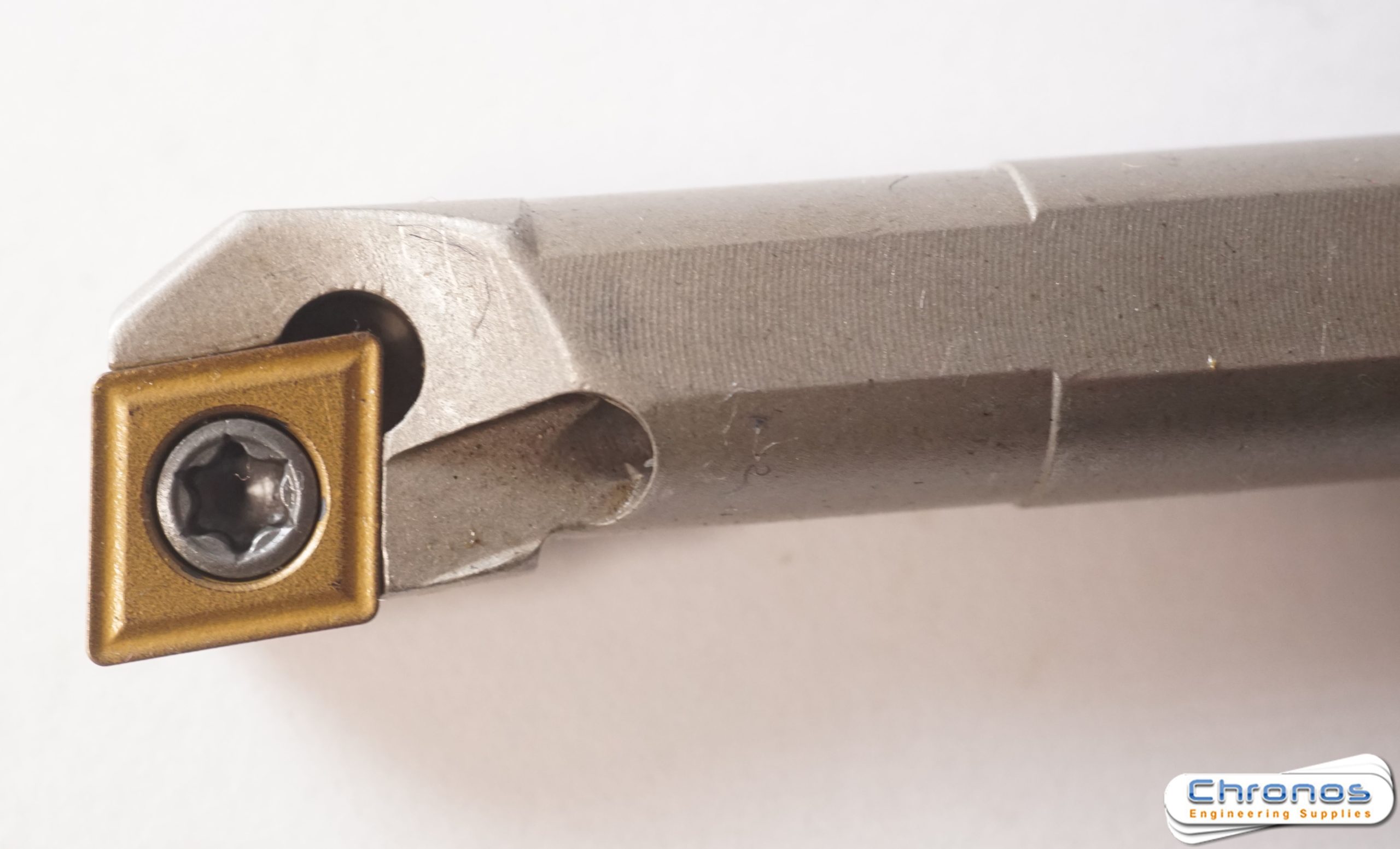

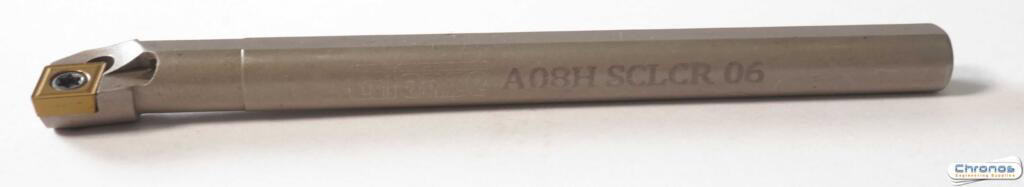

Glanze Indexable Through Coolant Boring Bar  6 mm Shank

Boring Bar with Thru Coolant Hole Suitable for 90 degree Boring & Facing (A-SCLCR)


THROUGH COOLANT HOLE APPLIES COOLANT RIGHT TO THE POINT OF CUT !

6 mm Shank- Can bore with a minimum hole diameter of 10 mm
These boring bars use CCMT inserts . The geometry of the boring bar is designed as such to allow straight boring to a shoulder , as well as internal facing cuts. A very versatile boring bar- useful for a large range of applications to include boring , facing and internal profiling.
These positive rake boring bars have steel shanks and can generally work with overhang of up to 5 times the boring bar diameter.
Shanks have flats top and bottom to allow easy clamping in your lathe toolpost.



Overall Length 100 mm

Out of stock

Chronos Product Code: 780450 Category:
