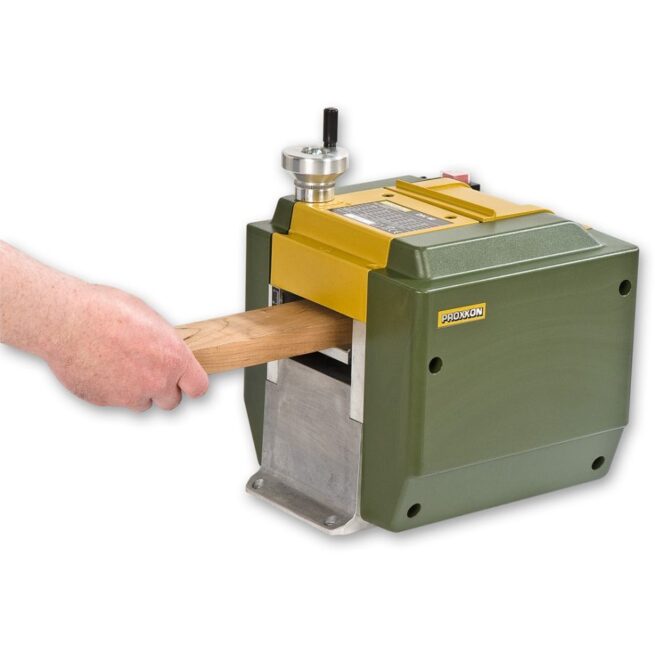

PROXXON DH 40 Thicknesser 702064
PROXXON DH 40 Thicknesser 702064 (SKU: 702064)
Key Features
- Load bearing components made of die-cast aluminium
- Auto feed
- Riffled and spring loaded infeed roller
- Rubber coated outfeed roller
- 2 HSS knives
- Dust protected No-Volt release switch
-
The PROXXON DH 40 is a superb small machine for producing precision stock for fine furniture or musical instruments. Capable of machining even very hard, close grained woods, leaving a fine finish. All load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles, for vibration-free, smooth thicknessing of hard and soft woods. The result is a high grade, very smooth surface. The triple spindled table is made from die-cast aluminium and milled to close tolerances. The handwheel (zero adjustable) allows adjustments to 0.1mm. Auto feed is fitted as standard, as well as an anti-kickback device. The infeed roller is riffled and spring loaded to assist in feeding uneven materials. The outfeed roller is rubber coated to prevent marking the newly planed wood. The cutter block is fitted with two HSS knives. The on/off switch is dust protected and fitted with a no-volt-release switch. Table length 232mm. Overall machine dimensions 280 x 230 x 235mm. Weight approximately 8kg.
SpecificationMore Information Cutterblock Speed 6,000 rpm EAN Barcode 4006274270404 Feed Speed 4.8 m/min Knives HSS (Disposable) x 2 Length of Table 232 mm Max Depth of Cut Thicknesser 0.8 mm Max Planing Width 80 mm Max Thicknessing Height 40 mm Min Thicknessing Height 3.0 mm Model DH40 Motor Power 200 W Nett Weight 8 kg Number of Knives 2 Overall L x W x H 280 mm x 230 mm x 235 mm
£449.00.
In stock
Key Features
- Load bearing components made of die-cast aluminium
- Auto feed
- Riffled and spring loaded infeed roller
- Rubber coated outfeed roller
- 2 HSS knives
- Dust protected No-Volt release switch
-
The PROXXON DH 40 is a superb small machine for producing precision stock for fine furniture or musical instruments. Capable of machining even very hard, close grained woods, leaving a fine finish. All load bearing components are all made of die-cast aluminium, with milled seats for bearings and spindles, for vibration-free, smooth thicknessing of hard and soft woods. The result is a high grade, very smooth surface. The triple spindled table is made from die-cast aluminium and milled to close tolerances. The handwheel (zero adjustable) allows adjustments to 0.1mm. Auto feed is fitted as standard, as well as an anti-kickback device. The infeed roller is riffled and spring loaded to assist in feeding uneven materials. The outfeed roller is rubber coated to prevent marking the newly planed wood. The cutter block is fitted with two HSS knives. The on/off switch is dust protected and fitted with a no-volt-release switch. Table length 232mm. Overall machine dimensions 280 x 230 x 235mm. Weight approximately 8kg.
SpecificationMore Information Cutterblock Speed 6,000 rpm EAN Barcode 4006274270404 Feed Speed 4.8 m/min Knives HSS (Disposable) x 2 Length of Table 232 mm Max Depth of Cut Thicknesser 0.8 mm Max Planing Width 80 mm Max Thicknessing Height 40 mm Min Thicknessing Height 3.0 mm Model DH40 Motor Power 200 W Nett Weight 8 kg Number of Knives 2 Overall L x W x H 280 mm x 230 mm x 235 mm
