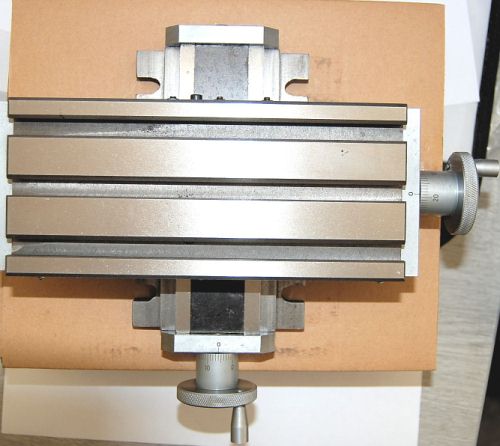

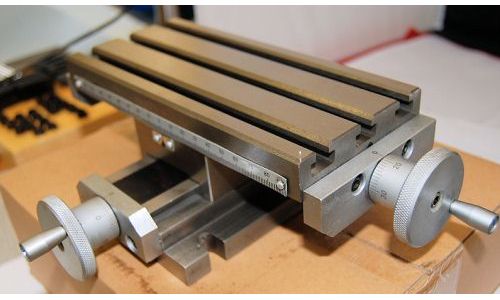

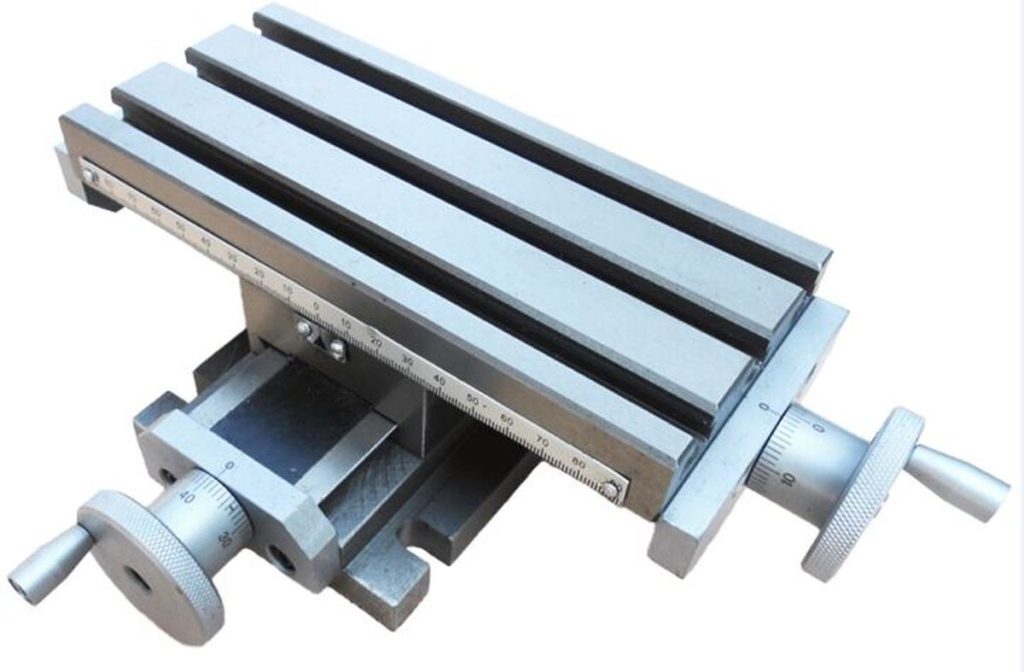

With 2 axes, mini series,Used in precision engineering
and in test and measurement laboratories.
Extremely well made , accurate item , Compact design.
Very versatile
Table size: 200 x 100mm
X-travel: 135 mm, Y-travel:70mm

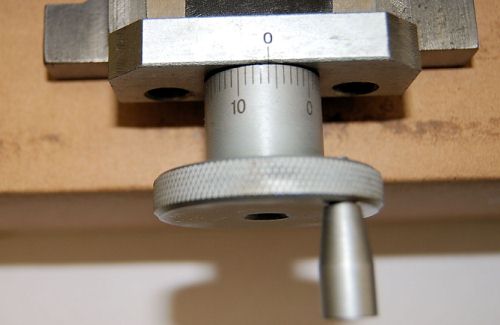

Dial calibration: 0.02mm and travel 1.00mm per
revolution.
Height 75 mm
T-slot: 30mm between two T-slot center.
T-Slot size: 8mm
Weight 6KG
Footprint Area – 100 x 160 mm
Four Mounting Slots (10mm wide) – 100 mm Between Centres
Approximate shipping weight: 6KG
Material:Cast iron
£82.50
