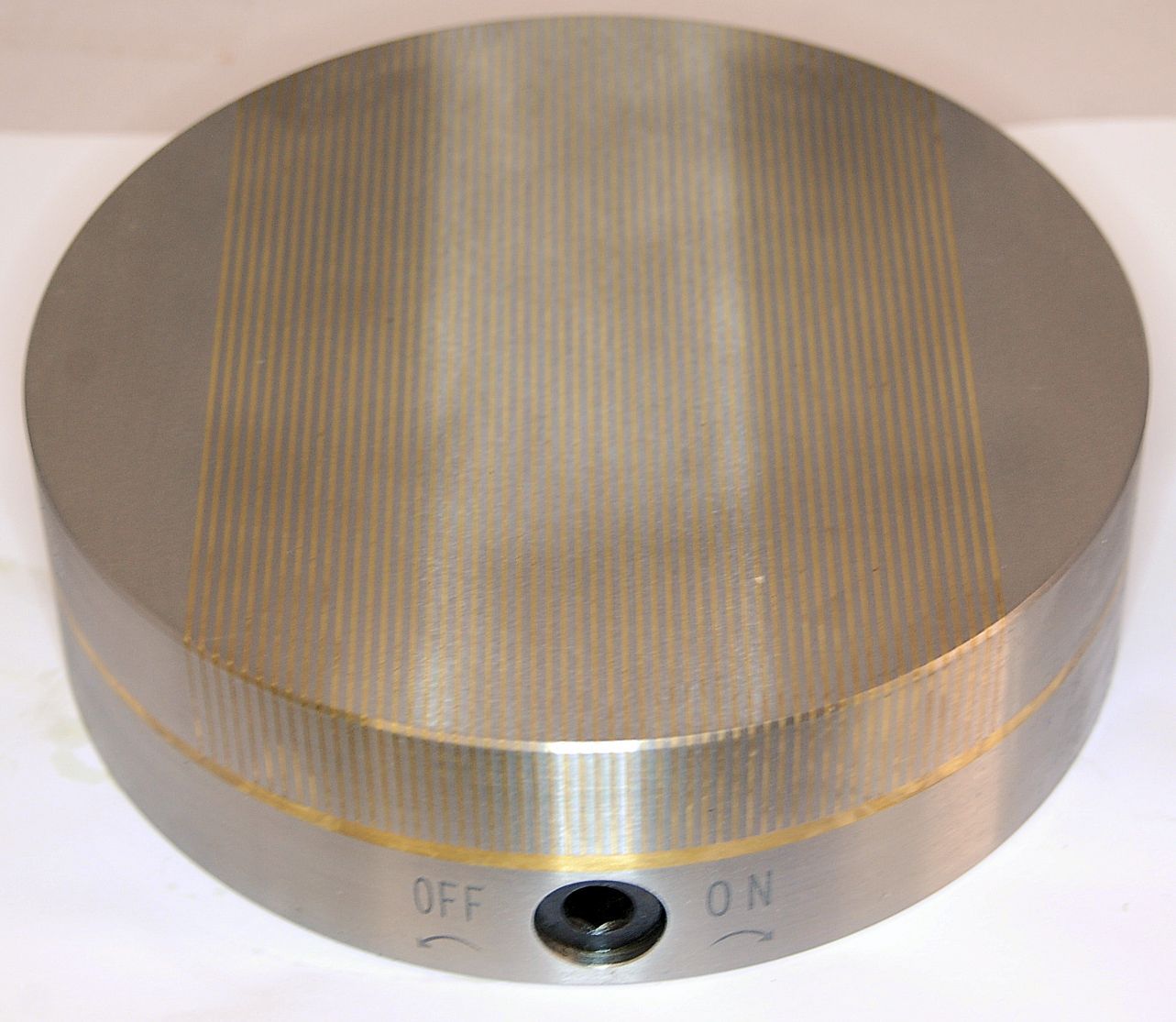

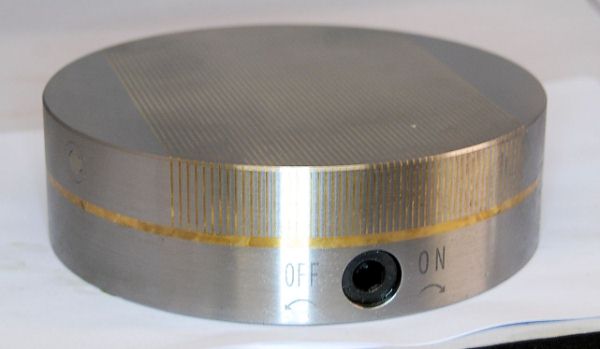

SCT Round Magnetic Chuck 160mm Diameter
SCT Round Magnetic Chuck 160mm Diameter (SKU: X51160)
Round steel permanent-magnetic chuck
Features
1 .Micro pitch permanent magnetic chuck with P:1.5+0.5 mm
2 Extremely low height due to use of neodymiumiron-boron magnets
3. Pole pitch:steel 1.5 mm,brass:0.5mm
4. Nominal holding force:100-120 (N/cm2)(JIS)
5. Pole plate wearing limit:5mm
6. Magnetic field height:8mm
7. Weight 4.6 kg
Application:
The round Micro pitch permanent magnetic chuck is suitable for grinding application, Ideal for smaller and thinner workpiece.
£218.80.
Round steel permanent-magnetic chuck
Features
1 .Micro pitch permanent magnetic chuck with P:1.5 0.5 mm
2 Extremely low height due to use of neodymiumiron-boron magnets
3. Pole pitch:steel 1.5 mm,brass:0.5mm
4. Nominal holding force:100-120 (N/cm2)(JIS)
5. Pole plate wearing limit:5mm
6. Magnetic field height:8mm
7. Weight 4.6 kg
Application:
The round Micro pitch permanent magnetic chuck is suitable for grinding application, Ideal for smaller and thinner workpiece.
SCT Round Magnetic Chuck 160mm Diameter
- Livechat is available if you would like any help with this product. Just mention “SCT Round Magnetic Chuck 160mm Diameter” in the chat.
- Call Chronos on (01582) 471900 for more info.
- Email Chronos at sales@chronos.ltd.uk
