MINI QUICK CHANGE TOOL POST AND HOLDER SET – PISTON TYPE (Ref: 40053101) FROM CHRONOS

Filed Under: 7 x 10 Variable Speed Mini Lathe Accessories, Boxford lathes, Chronos, Clarke Lathes, Clarke Metalworking Lathes, Lathe Chucks & Backplates, Lathe Drive Belts, Lathe Drive Dogs, Lathe Milling Slides, Lathe Quick Change Toolposts, Lathe Turning Tools, Model Engineering - What's New ?

MINI QUICK CHANGE TOOL POST AND HOLDER SET – PISTON TYPE (Ref: 40053101)
MINI QUICK CHANGE TOOL POST AND HOLDER SET - PISTON TYPE This is a scaled down version of the well known Piston Type Toolpost Systems

ALL STEEL

This NEW Mini Piston Type Quick Change Toolpost set provides instant tool changeover from one operation to another.
It is fully hardened and ground and the working parts have maximum rigidity and provide chatter free performance. Units are completely sealed for maintenance free operation. Each QC tool post set comes with 3 different styles of tool holders for turning, facing, and boring operations.

Suitable for Lathe swing 5″- 8″.
Supplied with a T-nut, ( 1 1/2 x 3/4″ x 5/16″ thick ) 8 mm and 10 mm bolt for universal mounting to the compound rest.
Center height 1-1/8″.
Toolholder width:1″.

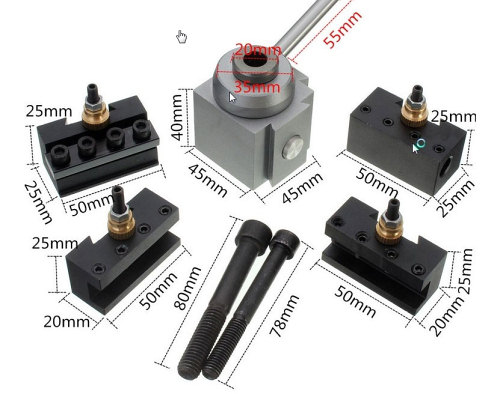

Each set includes:
1pc 250-065(piston type tool post)
2pcs 250-067(turning holder)
1pc 250-069(boring bar holder) – Takes 10 mm / 3/8 Diameter Boring Tools
1pc 250-071(cutoff holder) – Takes a standard 1/2 x 3/32 Parting Blade ( our product numbers 132475 or PT006 )
