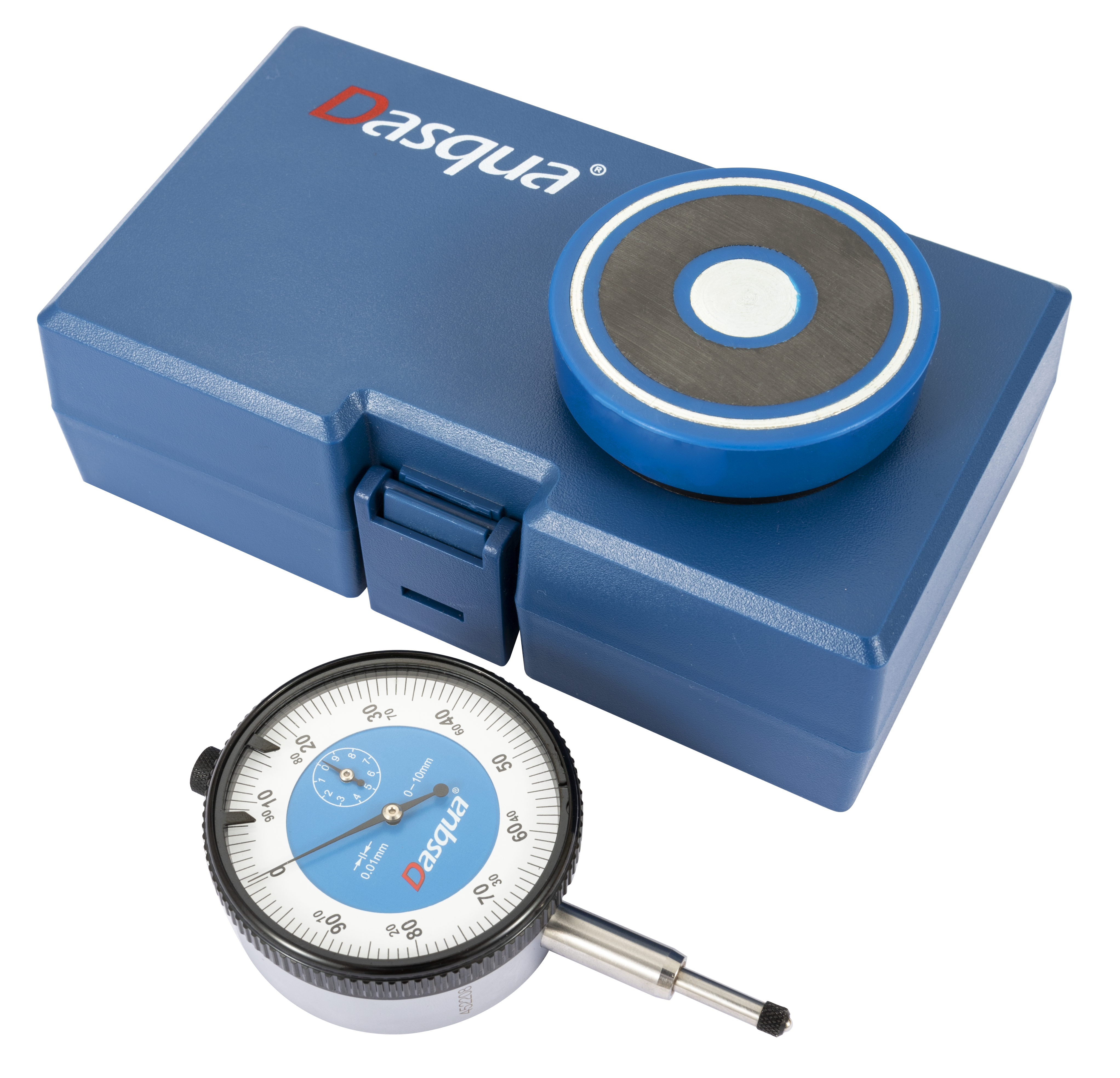

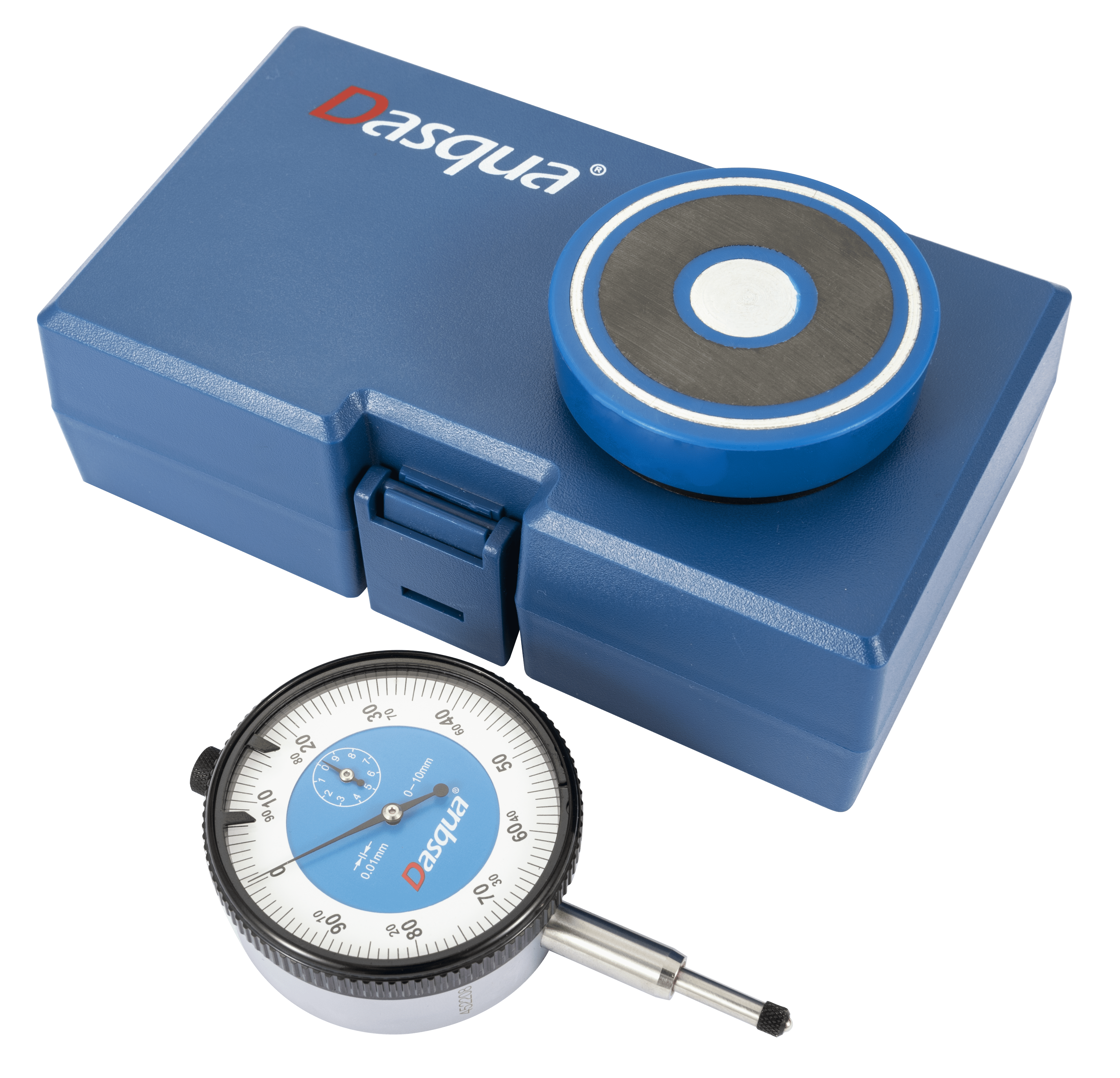

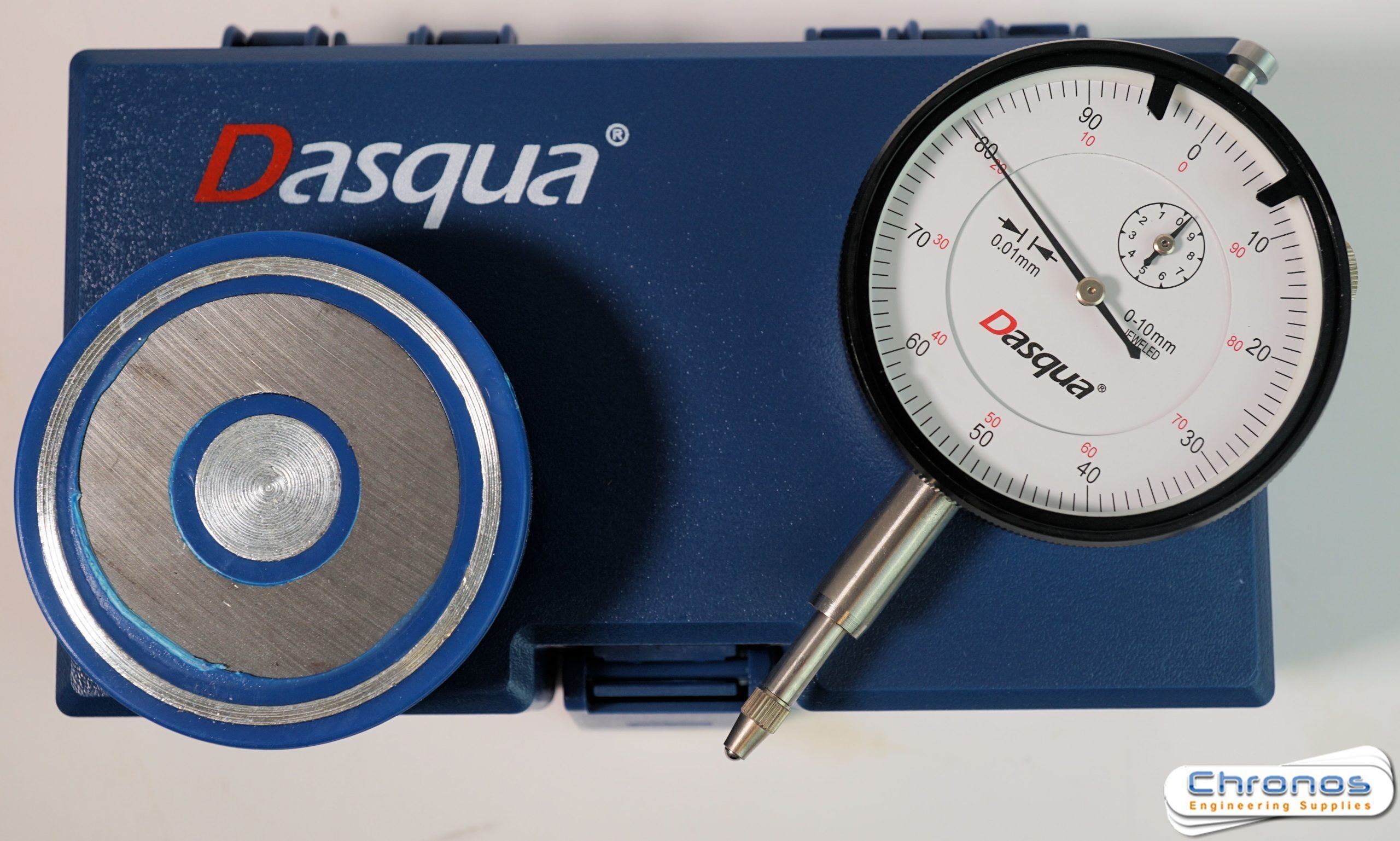

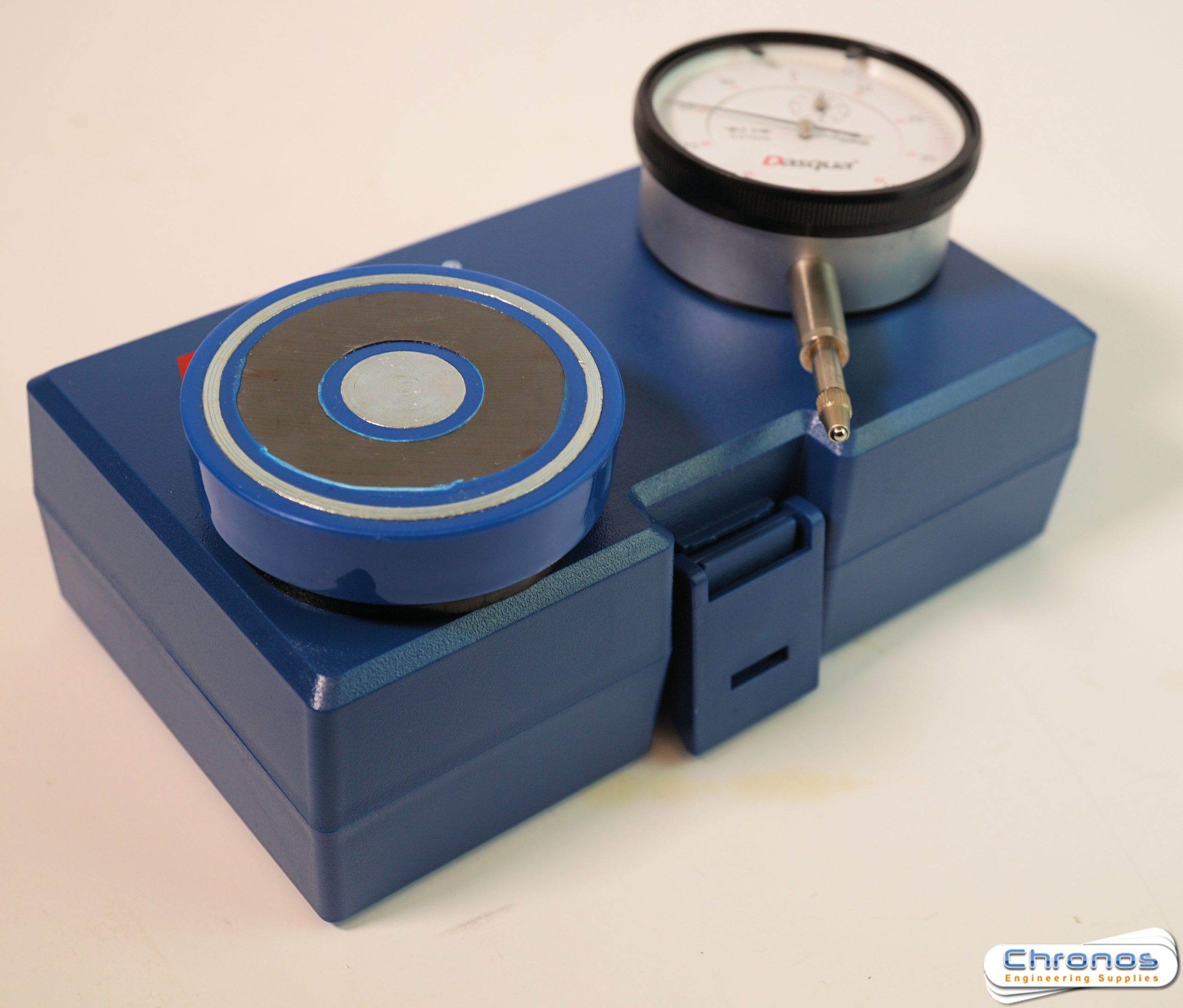

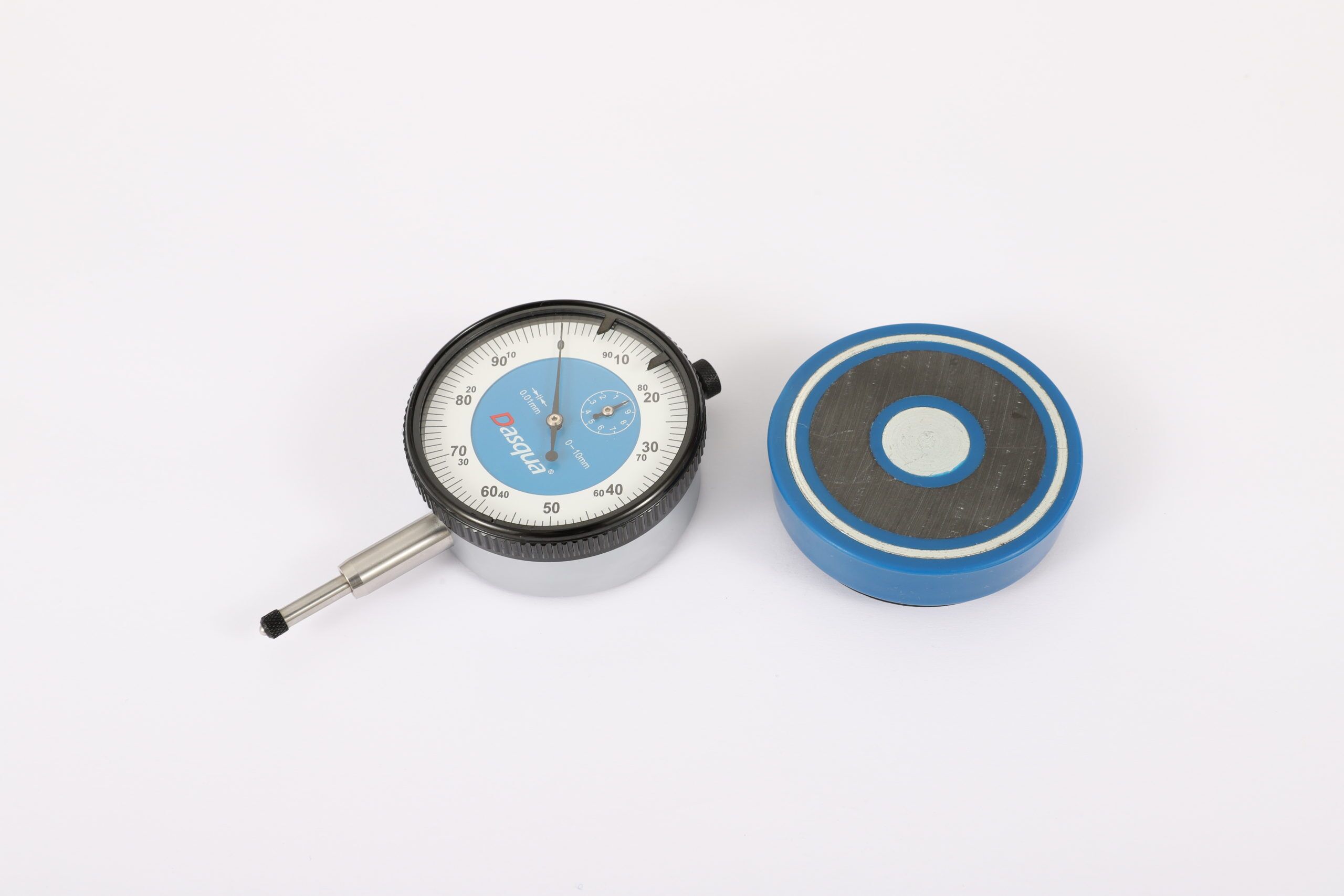

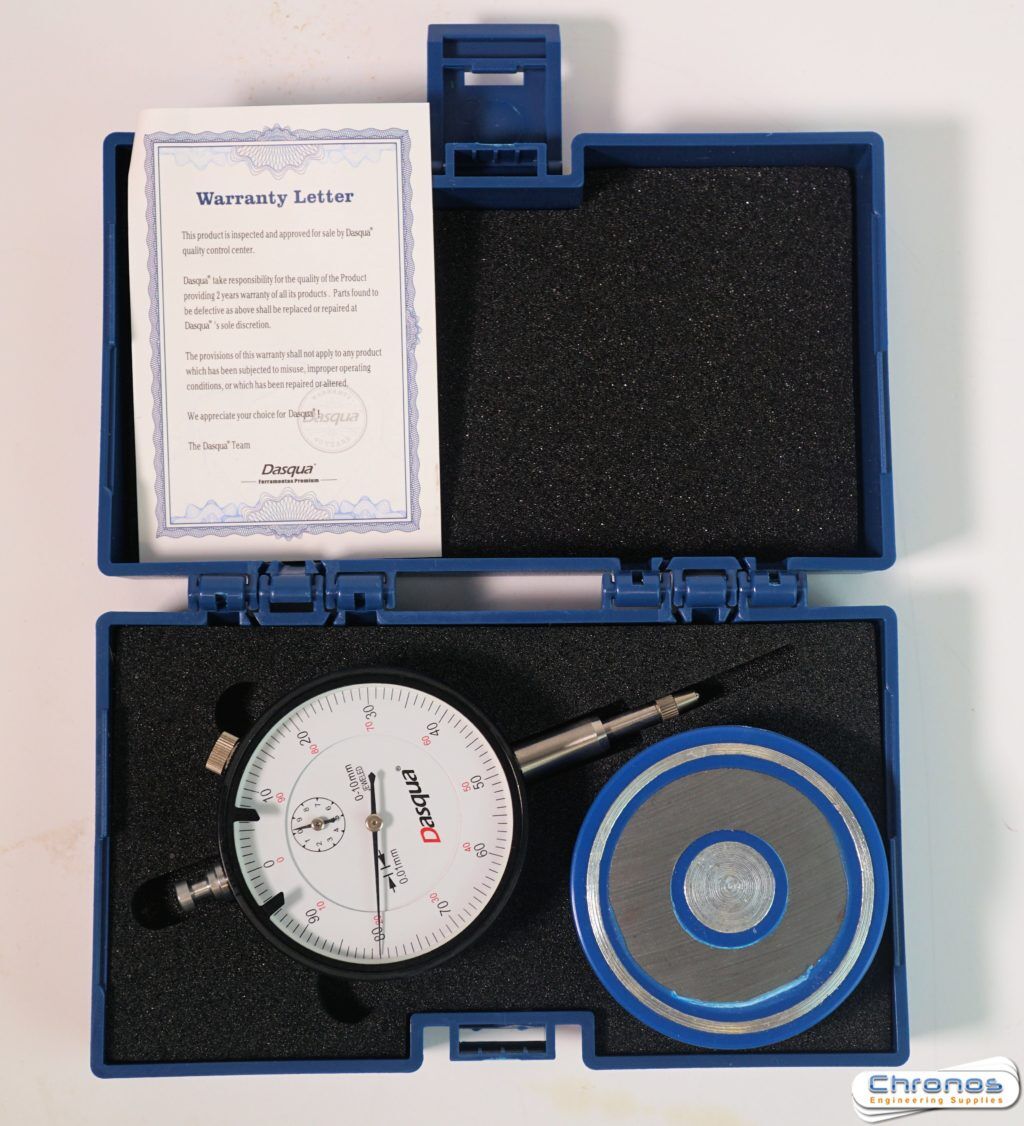

0-10 mm x 0.01 mm Metric Dial Gauge with Flat Magnetic Back

£16.99 (£20.39 incl VAT)

Measuring Range: 0-10 mm
Graduations: 0.01 mm
Indicator Feature
Accuracy meets or exceeds ANSI specifications. AGD 2 standards
Main movement gears are made from high quality brass with resistance to wear and rust
Spindle rack and contact points are made of hardened stainless steel, case is made from forged brass
Tolerance Markers. Rotating Bezel with clamp is making easy to set up measuring range.

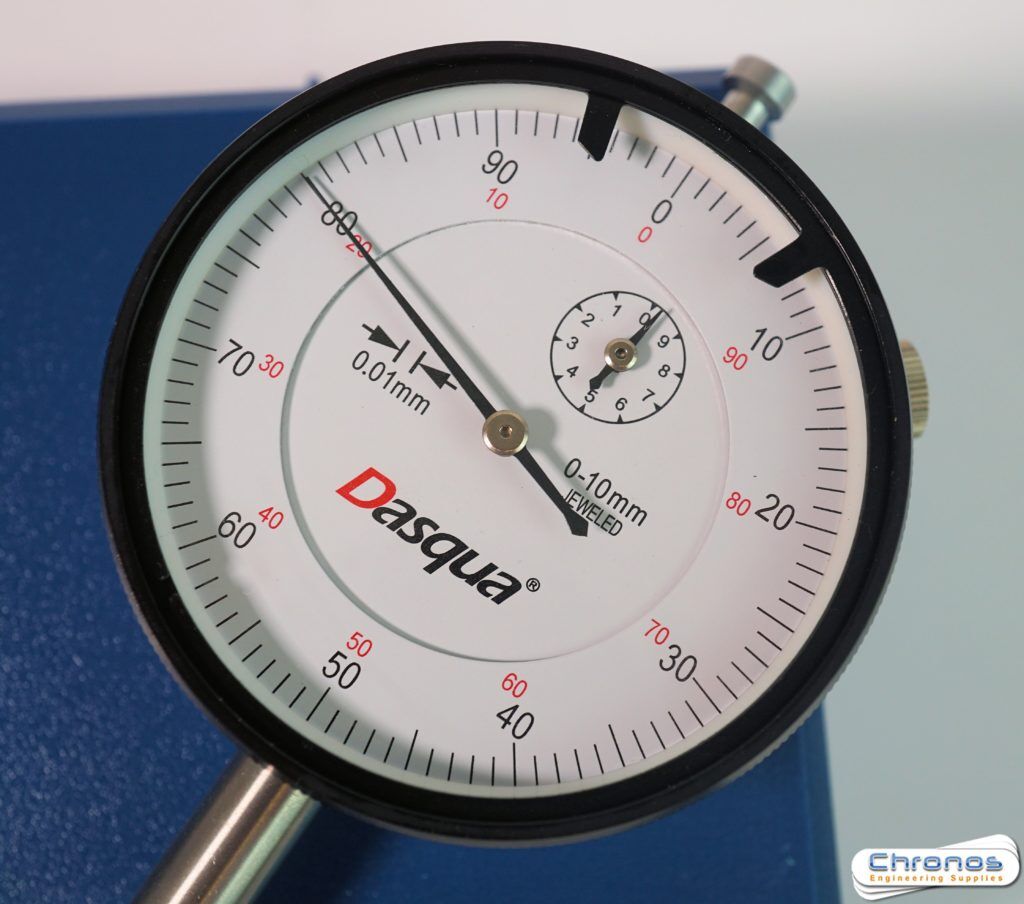

Easy to read aluminum dial face with anti-glare finish
Interchangeable contact point with 4-48 thread.
Reverse Counter

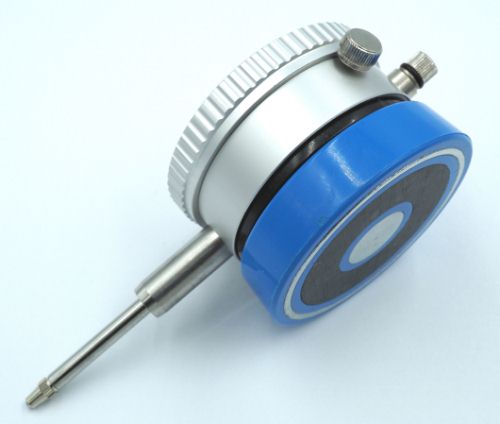

Magnetic Indicator Back Feature
Magnet screws off
Powerful Magnet
Reading 0-10 mm
Lug Back: 1/4″ Holes
Dial Diameter: 2-3/8″
Stem Diameter: 3/8″
Accuracy (1st 2.5 Rev): +/- 0.01 mm
Accuracy (Overall): +/- 0.002″
Magnetic Indicator Back:
Size 2-1/4″
Direct fits 2″ dial indicators
Magnet screws off base, holding power: 44 lbs
Diameter 9/16″

PRICE INCLUDES DELIVERY TO UK MAINLAND

Chronos Code: 9903001 Category:

0-10 mm x 0.01 mm Metric Dial Gauge with Flat Magnetic Back from Chronos Engineering Supplies

Please like our Facebook page and share this product with friends. If you have any questions about this product, use our live chat facility. Just leave a message if we are offline stating “0-10 mm x 0.01 mm Metric Dial Gauge with Flat Magnetic Back “. Please remember to leave your email address so we can reply.

Additional Information

Weight 0.2 kg
