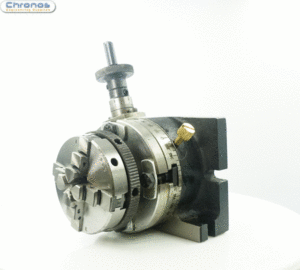

3 inch Rotary Table With 65mm 4 Jaw Self Centering Chuck and Clamping Kit
NEW 3″/ 80 MM SOBA ROTARY TABLE COMPLETE WITH CHUCK & CLAMPING KIT

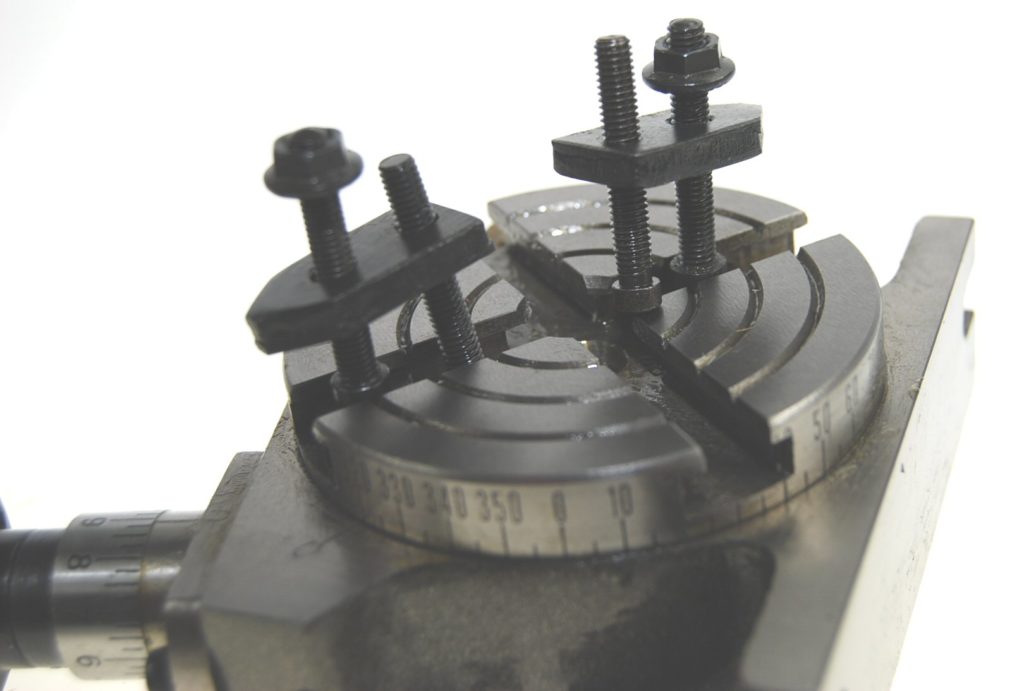

Overall height of table is 1 1/2″ – a useful feature if it is to be used with smaller milling attachments. The table can be locked in any position. Centre height in vertical position 1 1/2 in bringing the table within the range of most model engineering lathes & mills. The hand wheel scale which can be zeroed, is marked in degrees and 10 min divisions. The table is calibrated in 5 deg increments around the rim. Bronze worm wheel and steel worm with 36 to 1 ratio. Gear meshing is adjustable to take up wear.

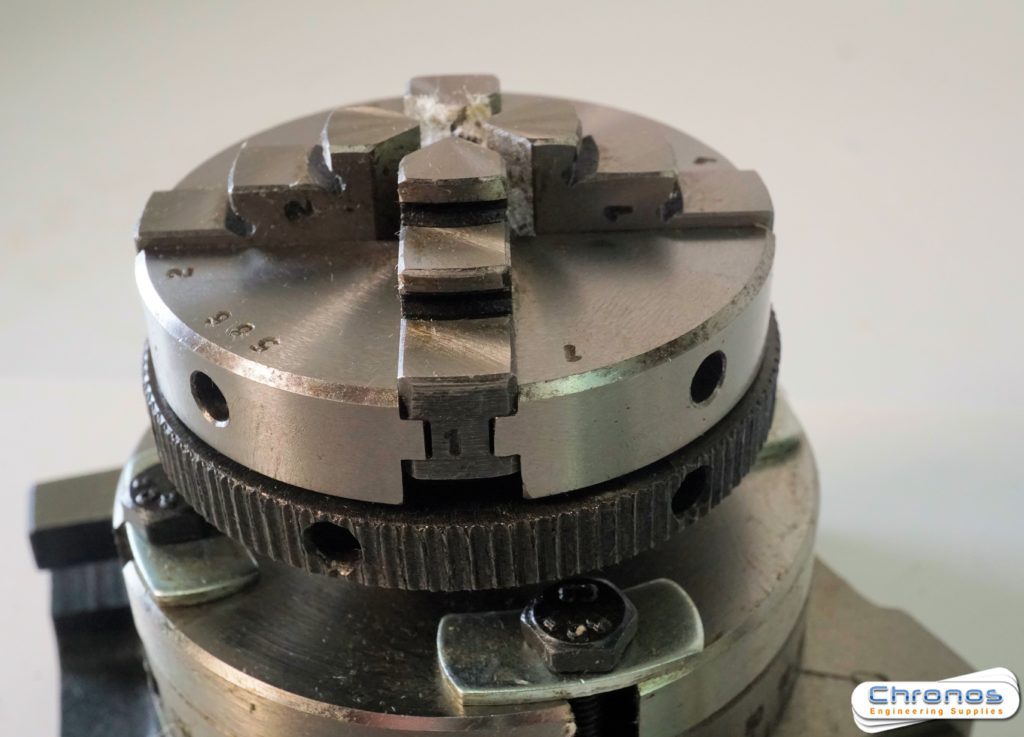

Complete with 65 mm 4 Jaw Self Centering Chuck
