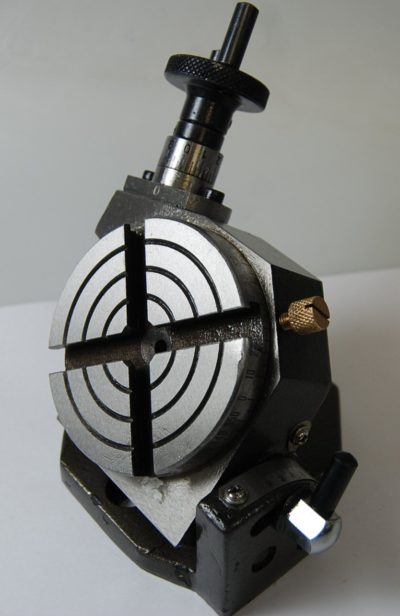

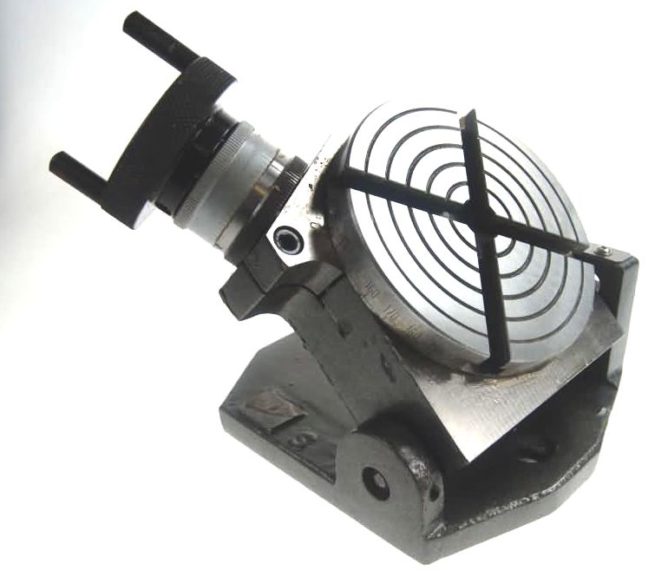

4″ Tilting Rotary Table

£68.00 (£81.60 incl VAT)

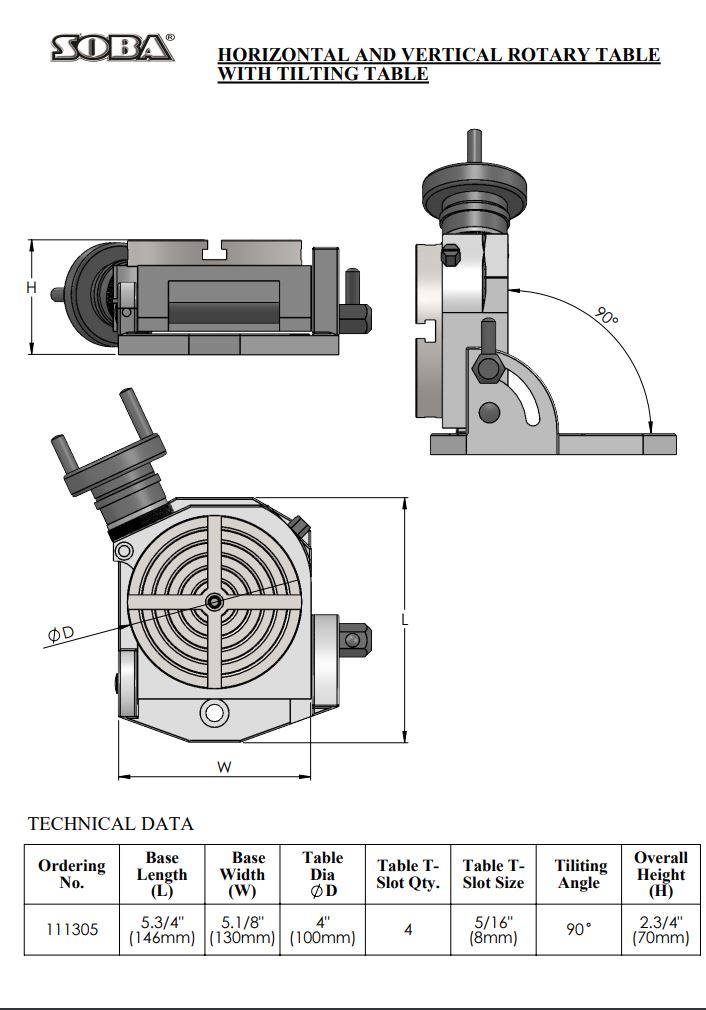

Excellent 4″ table within the range of most model engineering lathes & mills. The hand wheel scale which can be zeroed, is marked in degrees and 10 min divisions. The table is calibrated in 5 deg increments around the rim. Bronze worm wheel and steel worm with 36 to 1 ratio. Gear meshing is adjustable to take up wear. Complete with Tiliting Table – Adjusts to 90 degrees!!


4″ Tilting Rotary Table from Chronos Engineering Supplies

Please like our Facebook page and share this product with friends. If you have any questions about this product, use our live chat facility. Just leave a message if we are offline stating “4” Tilting Rotary Table”. Please remember to leave your email address so we can reply.

Additional Information

Weight 3.96 kg
