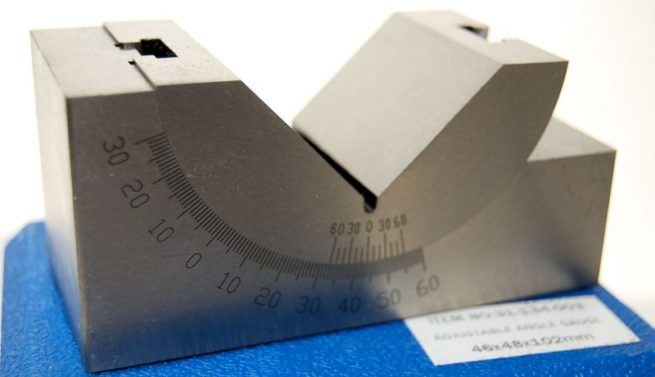

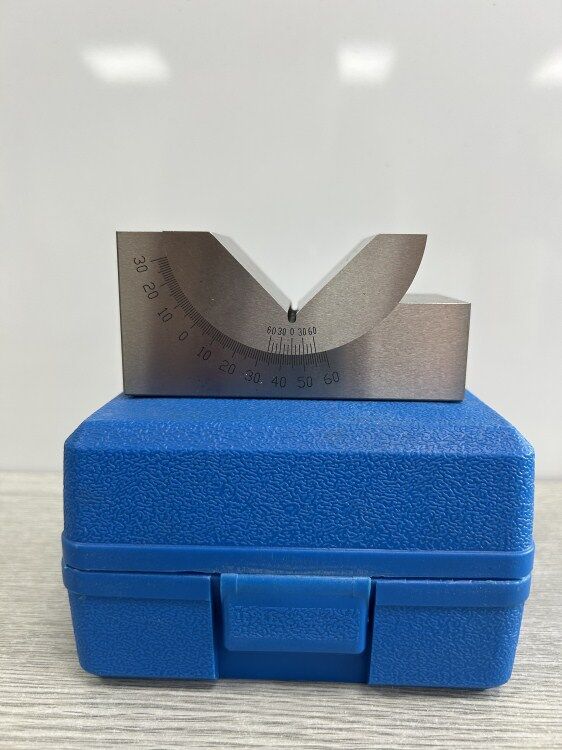

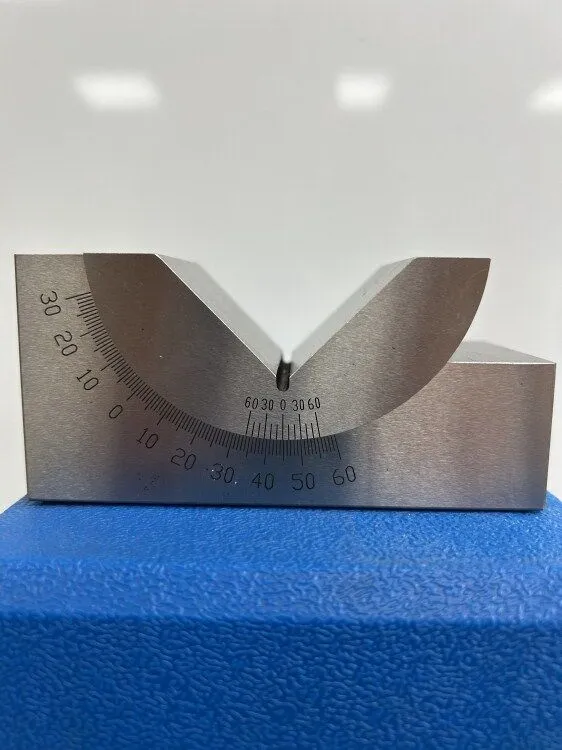

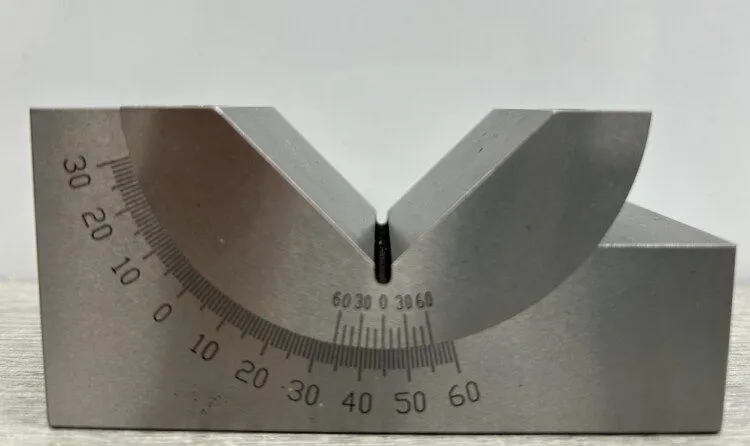

Adjustable Angle Gauge Metric
Adjustable Angle Gauge Metric (SKU: SMT1343)
Manufactured from chrome steel hardened and micro lapped
90º vee located in precision tee slot

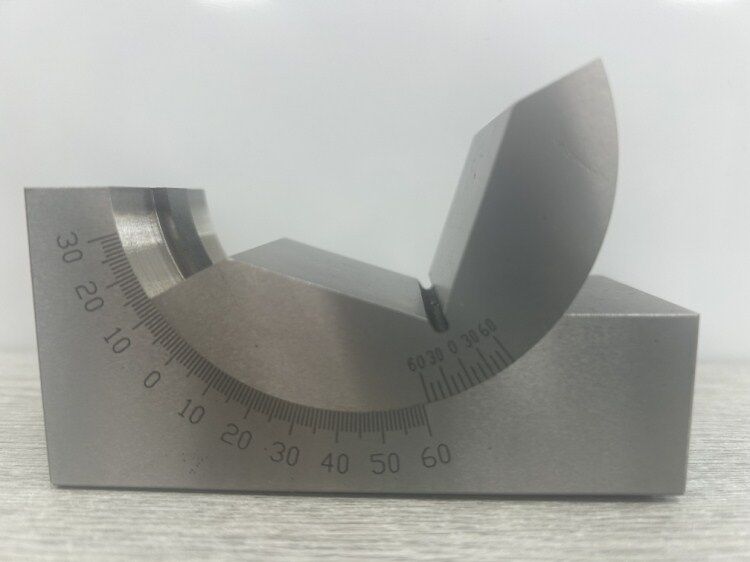

Vee movement:- 60º anti clockwise, 30º clockwise
Vernier scale on vee reads in 10 min divisions
Vee locked in place by 2 tee nuts
Length:- 102mm, height 48mm, width 46 mm 0-60 deg Adjustable angle – by locking the hex screw. V angle is 90 deg.
Squareness 0.0004″/0.01mm
Size – 46 x 48 102 mm
£32.00.
Manufactured from chrome steel hardened and micro lapped
90º vee located in precision tee slot
Vee movement:- 60º anti clockwise, 30º clockwise
Vernier scale on vee reads in 10 min divisions
Vee locked in place by 2 tee nuts
Length:- 102mm, height 48mm, width 46 mm 0-60 deg Adjustable angle – by locking the hex screw. V angle is 90 deg.
Squareness 0.0004″/0.01mm
Size – 46 x 48 102 mm
