Charnwood BGCS4 Bench Grinder Chisel Sharpening System

The universal sharpening system for wood turners can be used in conjunction with a bench grinder to create accurate cutting angles and straight edges.

The system consists of 2 base clamps which are fitted underneath each wheel of the grinder allowing concurrent grinding set ups. The base clamp has a quick action lock to quickly change between different chisel types.

There then 4 attachments which can be fitted into either base clamps for sharpening particular types of chisels:

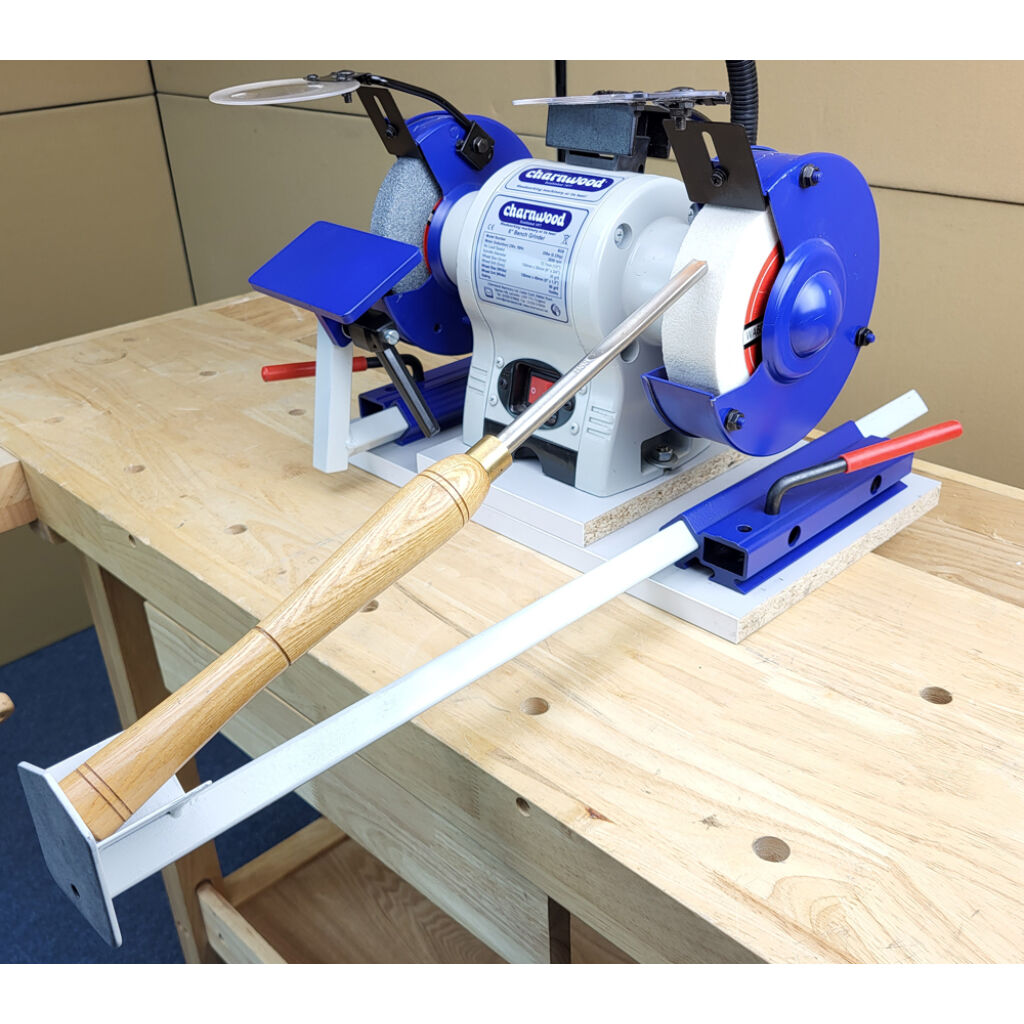

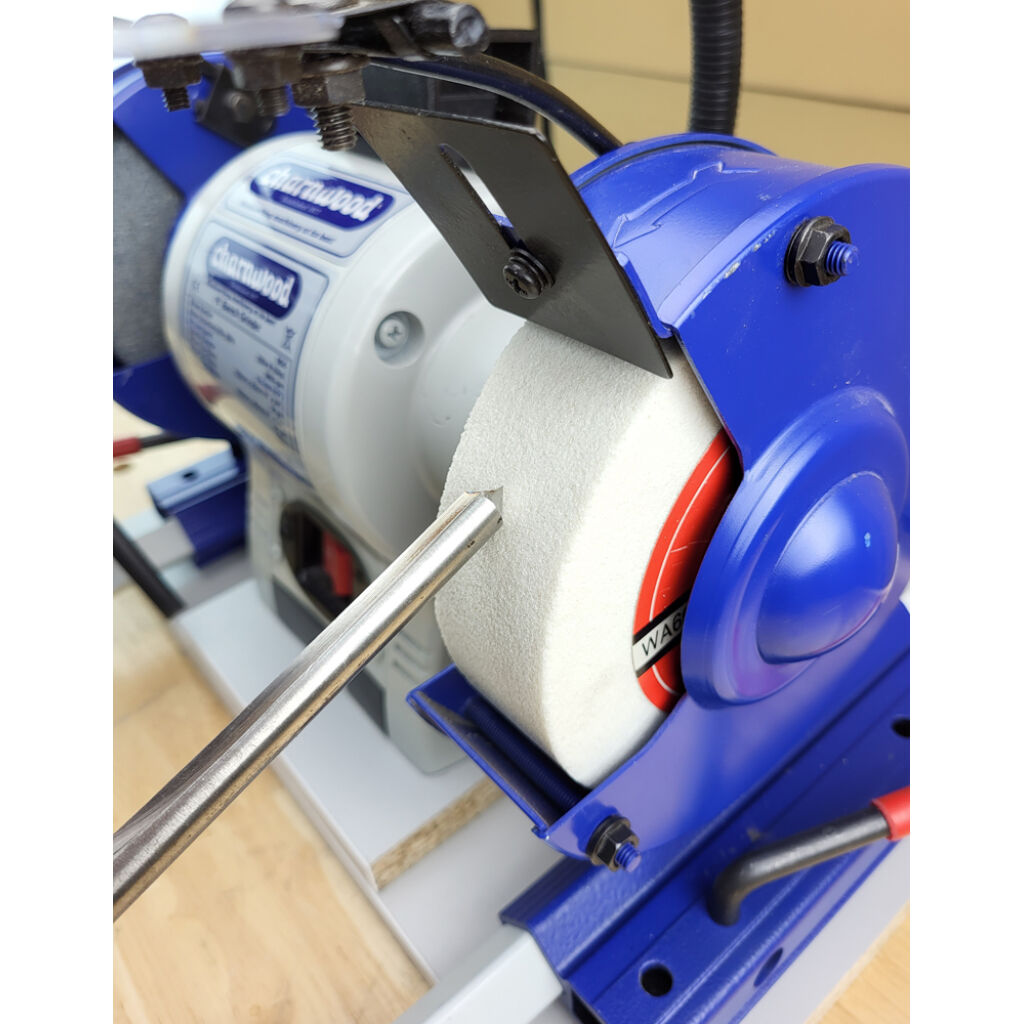

Long Support Arm – For Bowl Gouges & Roughing Gouges

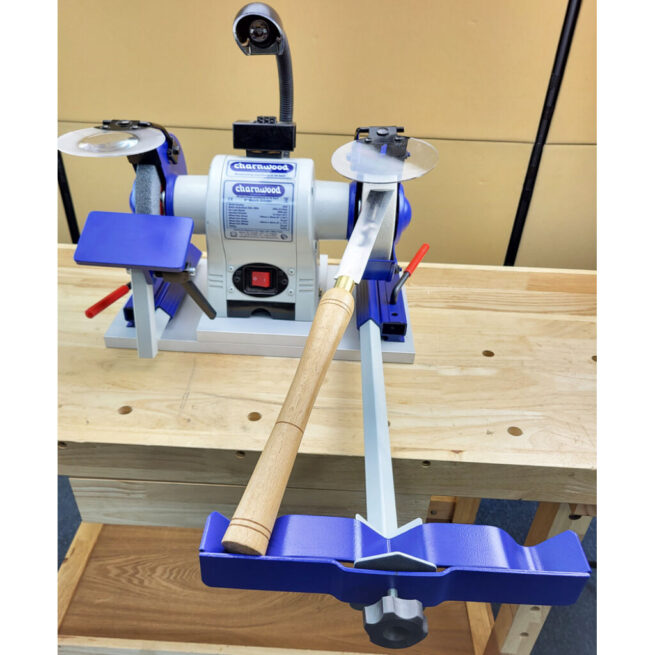

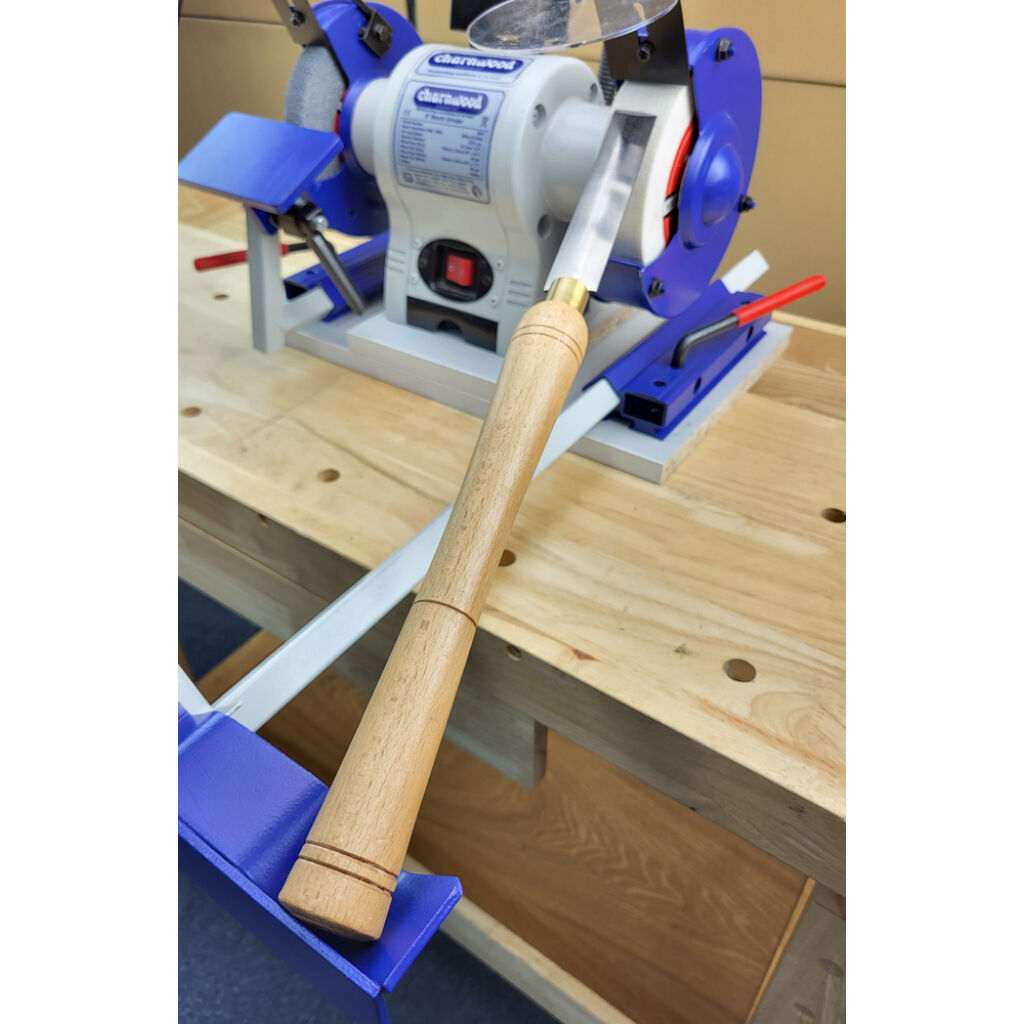

Skew Jig Attachment – For Flat or Curved Skews & Scrapers

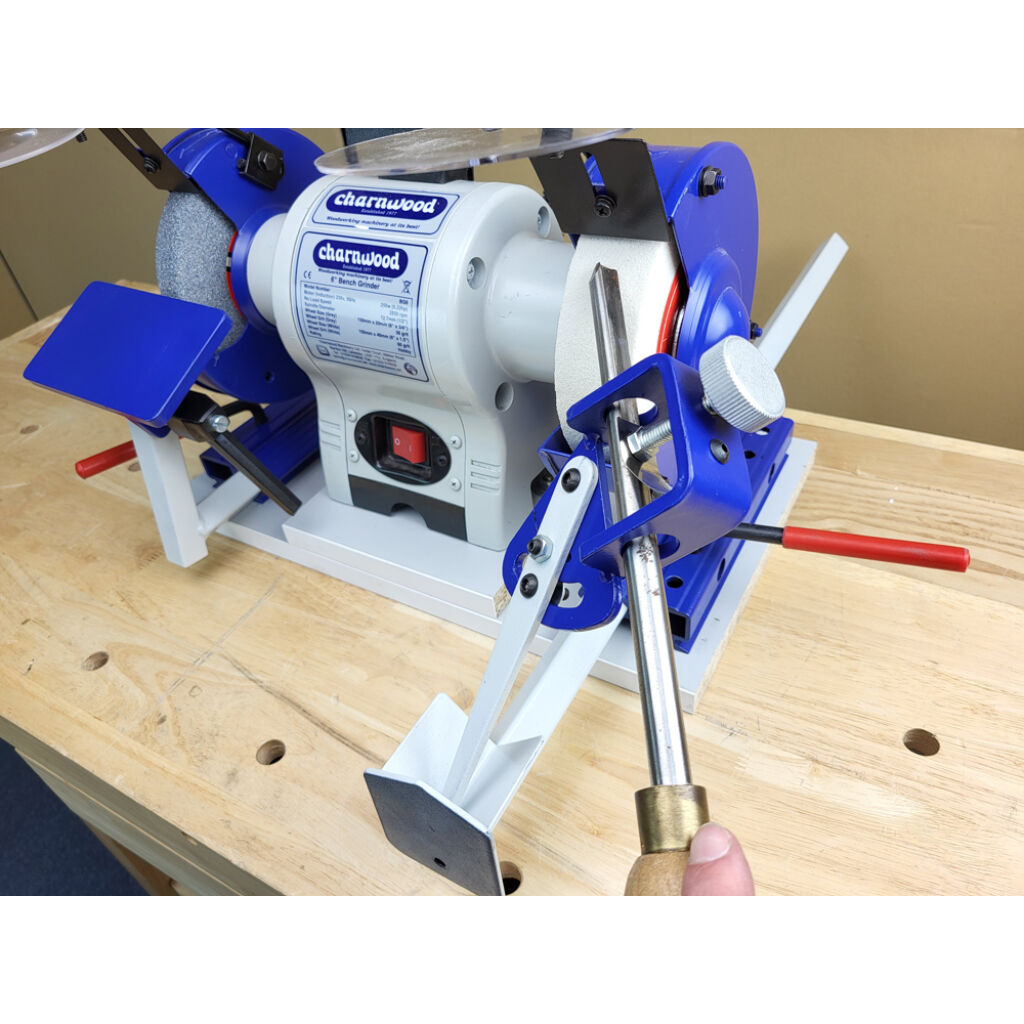

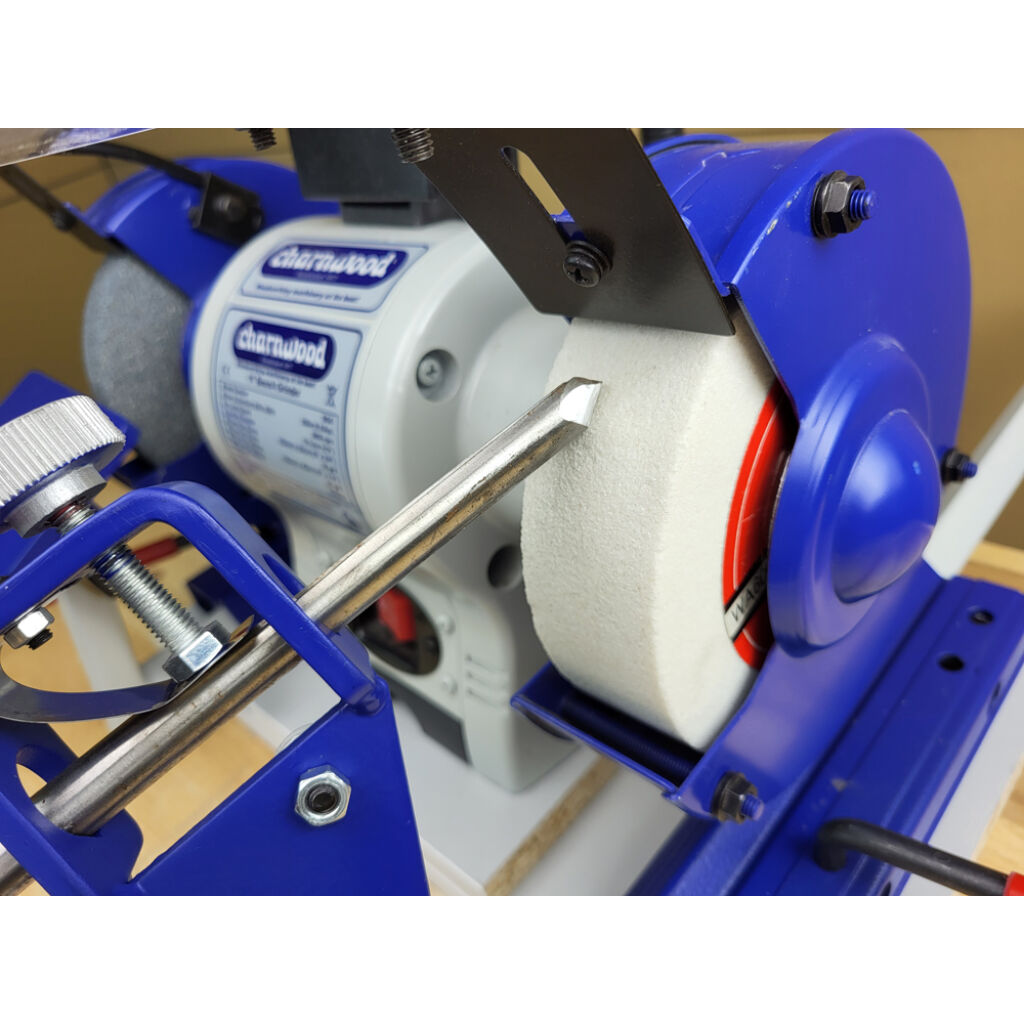

Fingernail Gouge Jig – For Fingernail Gouges & Spindle Gouges

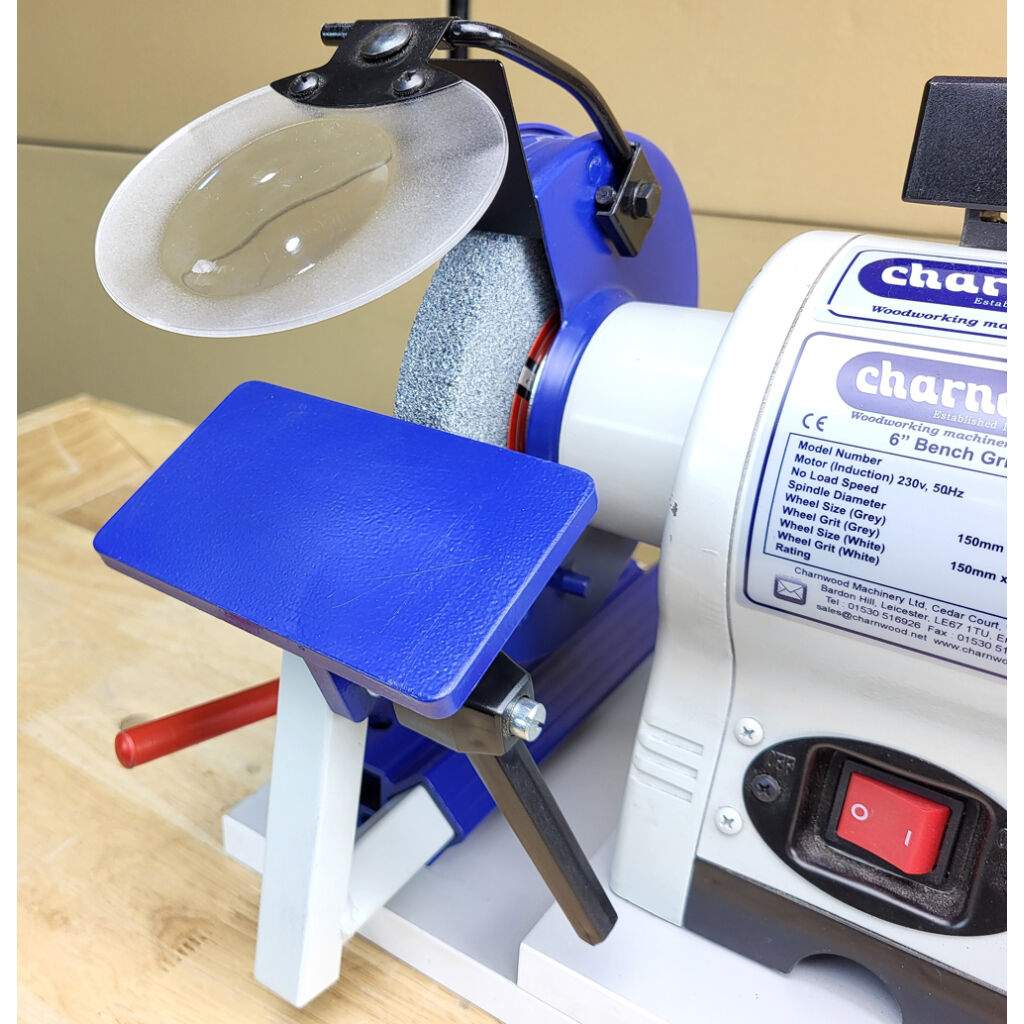

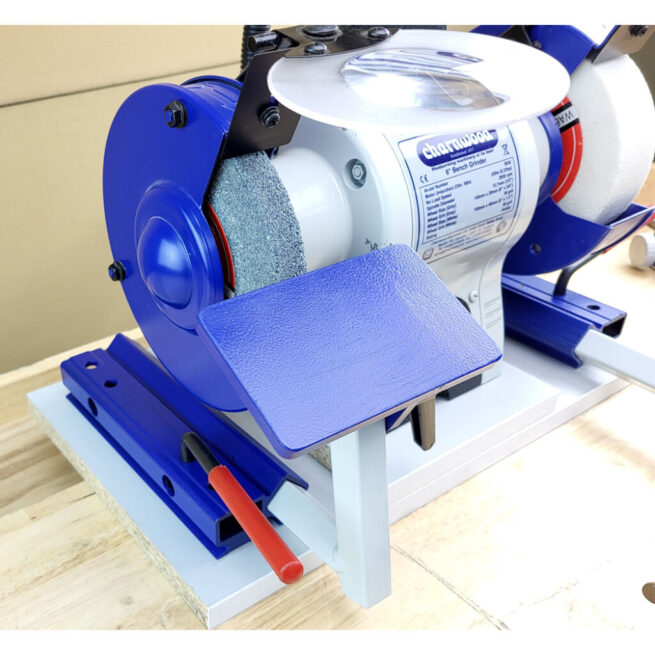

Flat Platform – For Parting Tools, Straight Edge Skews & Bench Chisels

Compatible with most 6″ and 8″ double end bench grinders. Ideally both the bench grinder and the base clamp should be fixed to the bench to ensure repeatable results. For a more portable solution attach everything to a base board which can be moved off the bench when required.

INCLUDES:
• Left & right base clamp
• Long Support Arm
• Fingernail Gouge Jig
• Skew Jig Attachment
• Flat platform
• Instructions

GRINDER NOT INCLUDED
