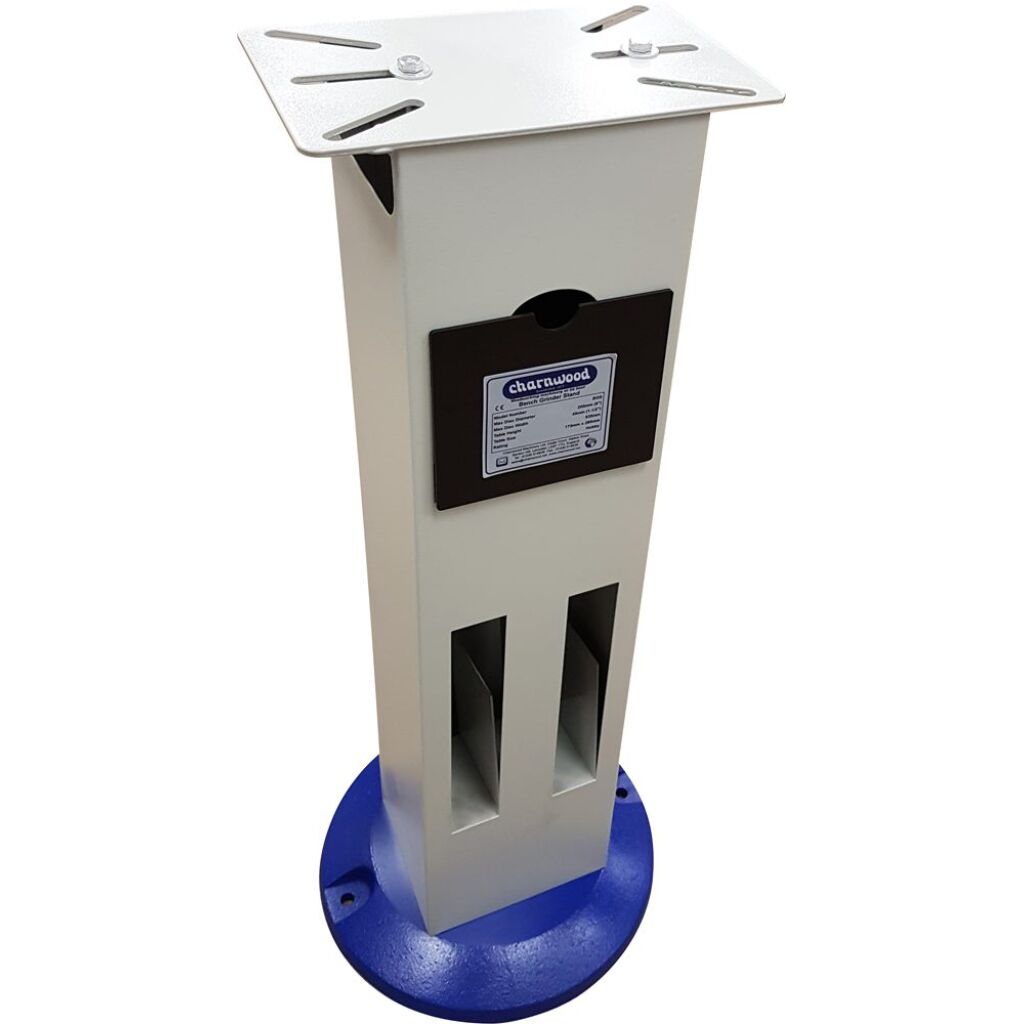

Charnwood BGS Floor Stand For Bench Grinders
Universal floor stand for use with any bench grinder.

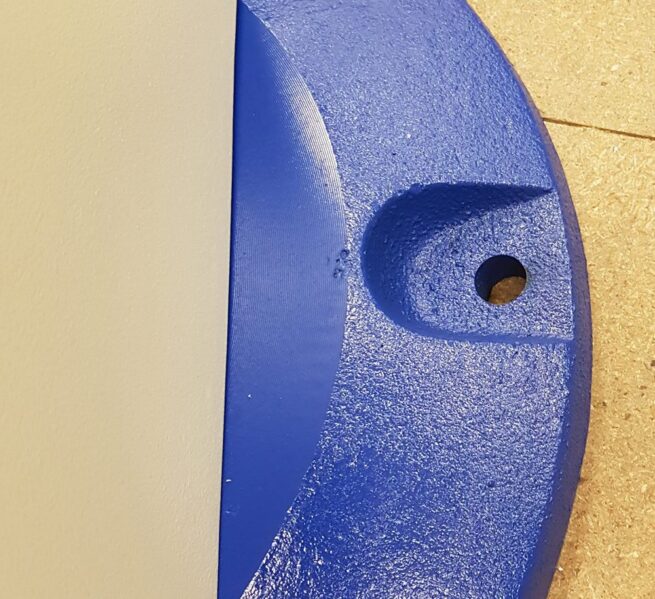

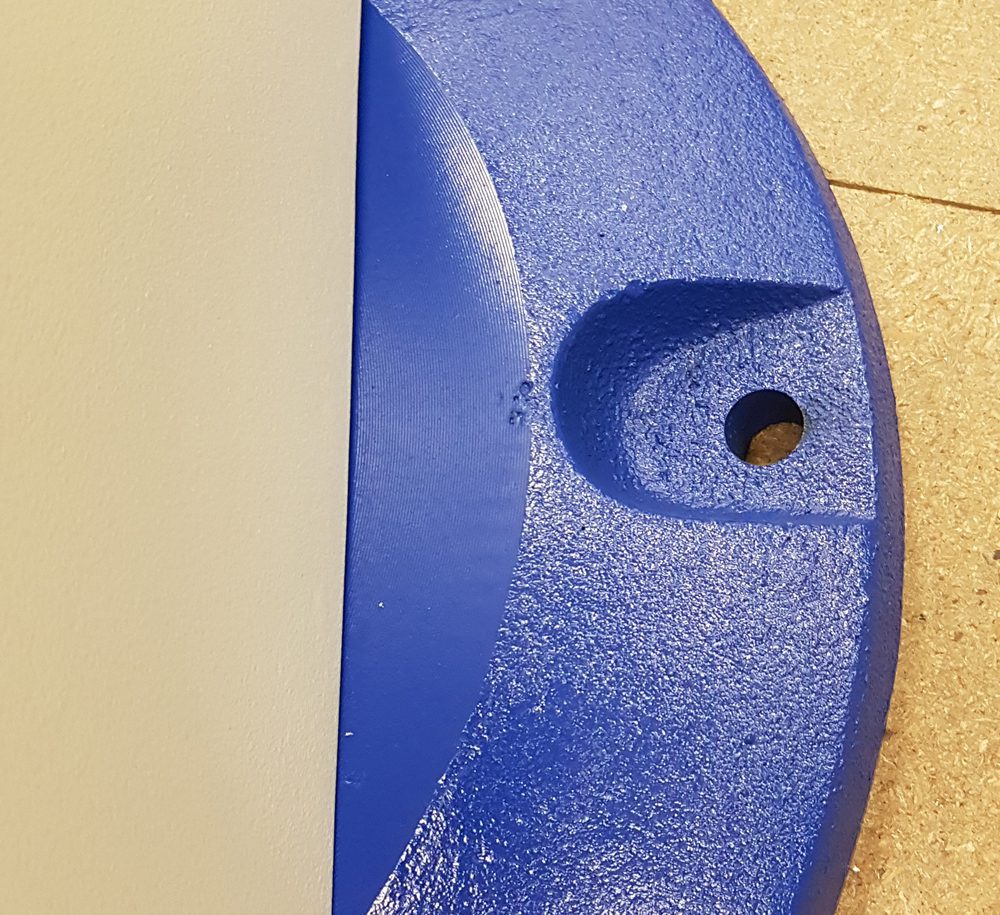

The cast iron base adds the weight to give good stability. There are holes for anyone wishing to secure it to the workshop floor.
The body is a rigid steel frame with a welded mounting plate which does not flex or vibrate during use.

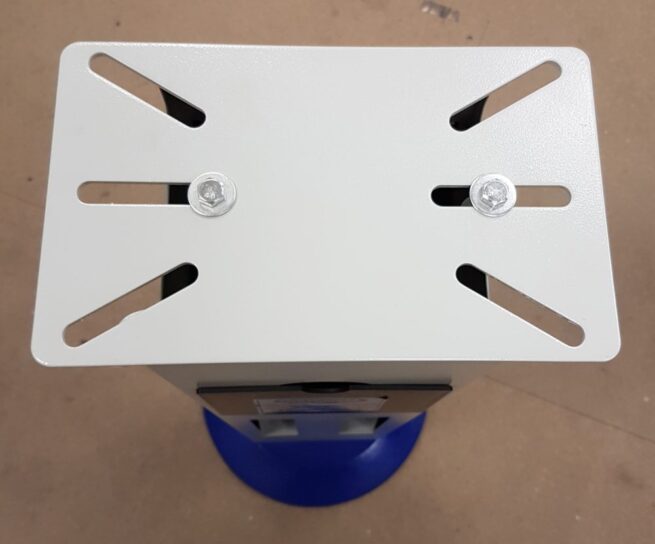

The universal mounting plate has slots to accommodate any bench grinder with up to 200mm (8″) sized wheels.

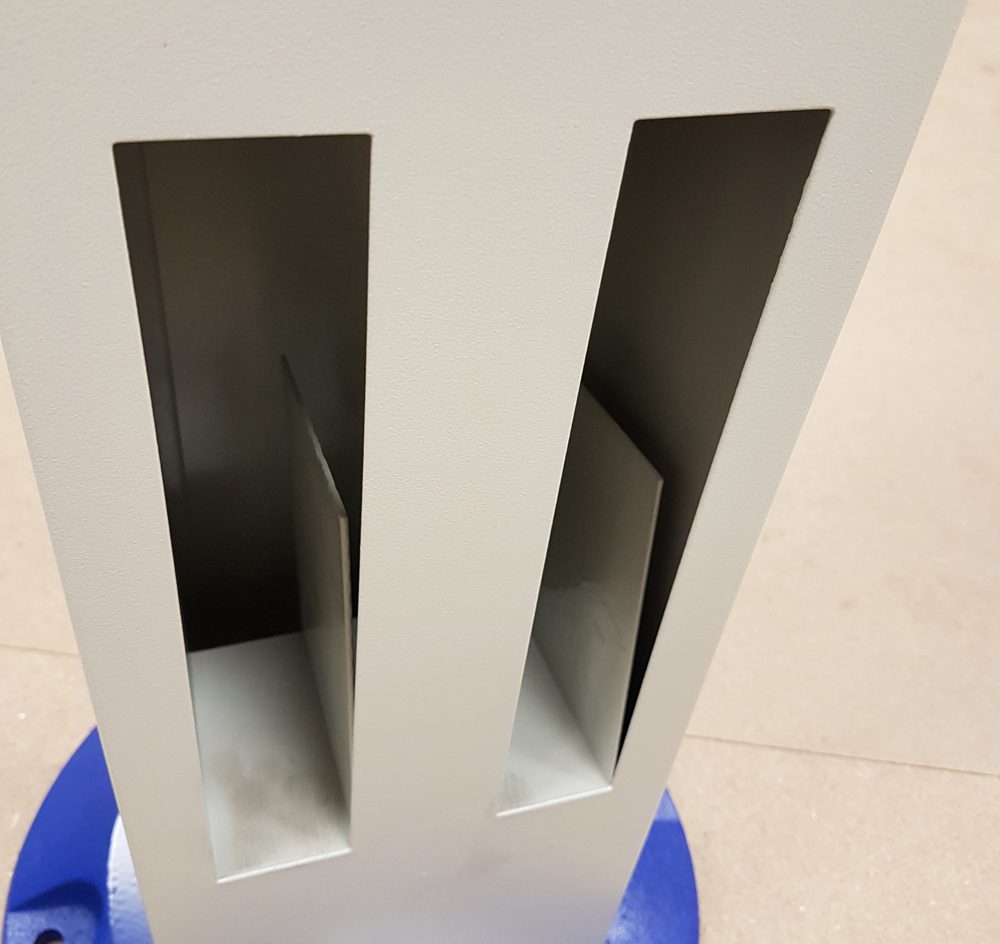

There are 2 storage slots to hold spare grinding discs of any size up to 200mm diameter and 40mm width.
There is also a draw compartment for keeping accessories handy.
Charnwood BGS Specification
|Mounting Plate Height||835mm|
|Mounting Plate Dimensions||170mm x 280mm|
|Disc Storage Slots||200mm x 40mm|
|Draw Storage Compartment||140mm x 140mm x 120mm|
|Fixing Bolts (x2)||M8 x 60mm|
|Overall Dimensions (WxDxH)||840mm x 340mm x 340mm|
|Shipping Dimensions (WxDxH)||800mm x 370mm x 250mm|
|Assembly Time Required||5 Minutes|
