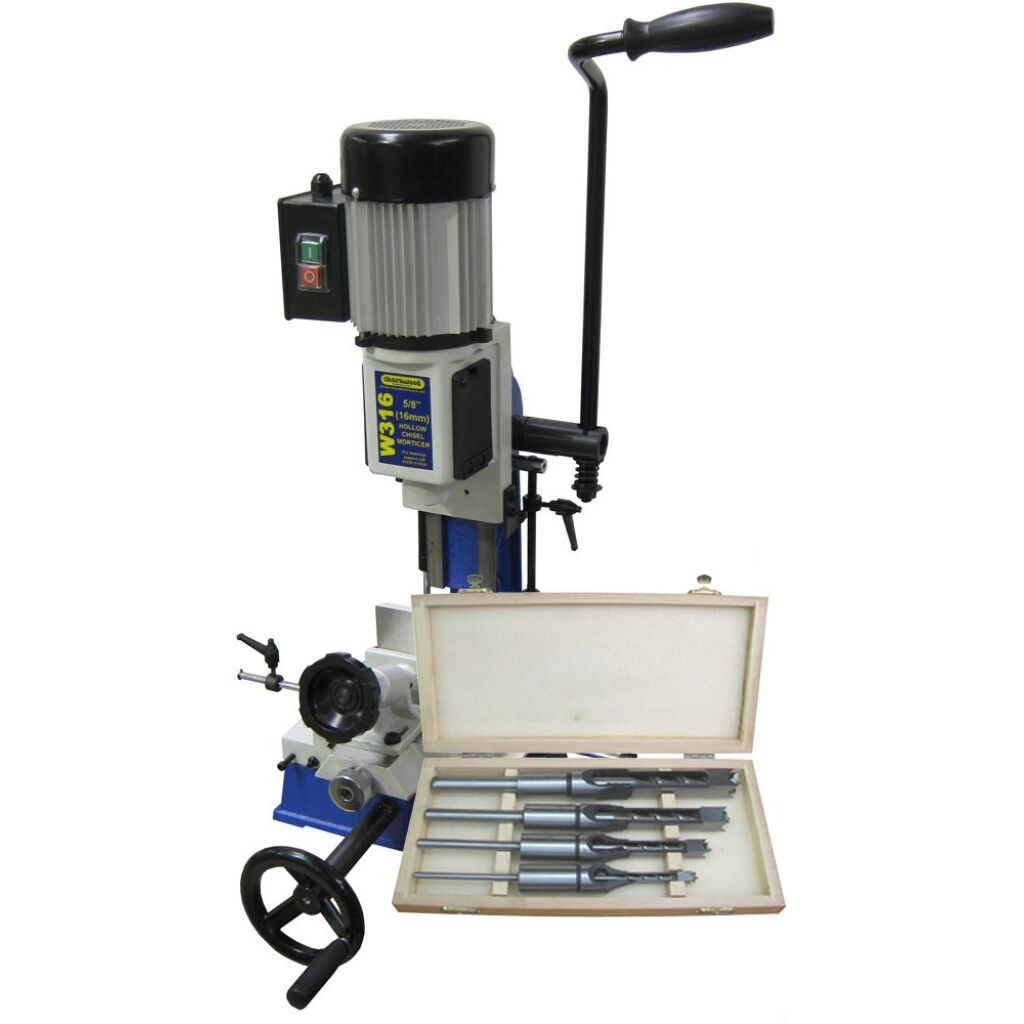

Charnwood W316 Bench Top Morticer 5/8” Capacity with Sliding Bed Package Deal



Package consists of:

  • W316 5/8″ Bench Top Morticer
  • MCCSET4 Chisel Set including 1/4″, 3/8″, 1/2″ & 5/8″ chisel

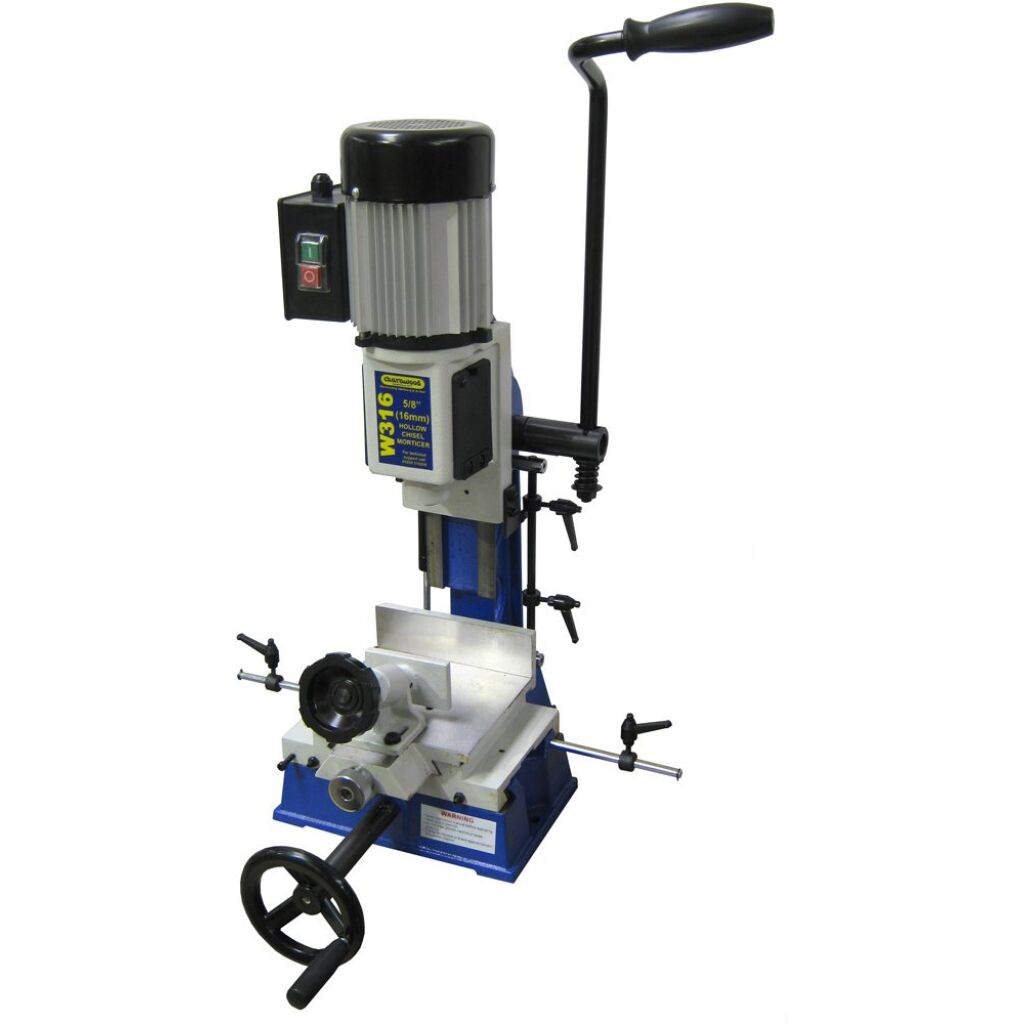

W316 5/8″ Bench Top Morticer
Bench top hollow chisel mortiser with an accurate sliding table system.

  • Adjustable Down feed Handle

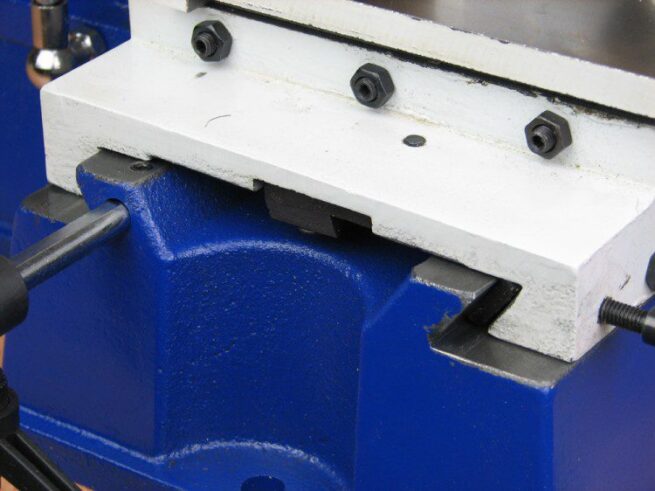

  • Table Moves Through X and Y Axis
  • Cast Iron Head, For Strength & Stability
  • Cast Iron Table, Hard Wearing For A Long Life
  • Cast Iron Fence, For Secure Work piece Clamping
  • Cast Iron Base, For Fixing to a Workbench
  • Plunging Head Controlled by Gas Filled Spring
  • Quite Induction Motor Delivers The Power

Using Cast Iron throughout gives the strength and rigidity to this morticer, to allow timbers of up to 125mm deep and 145mm high to be clamped securely.

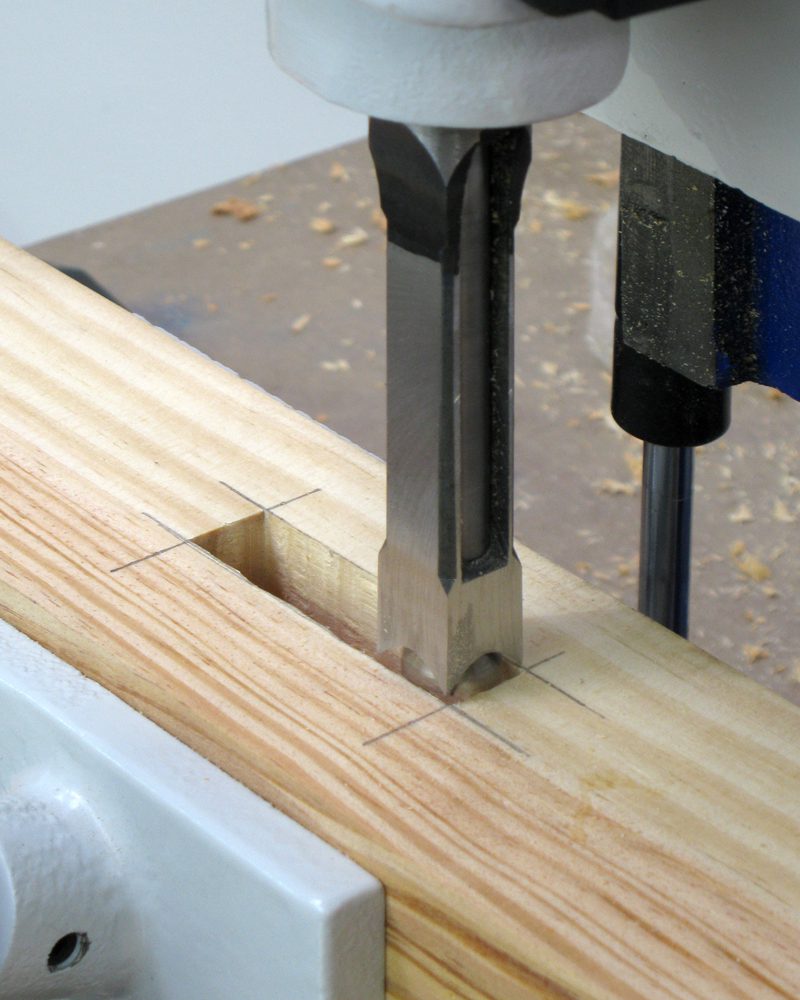

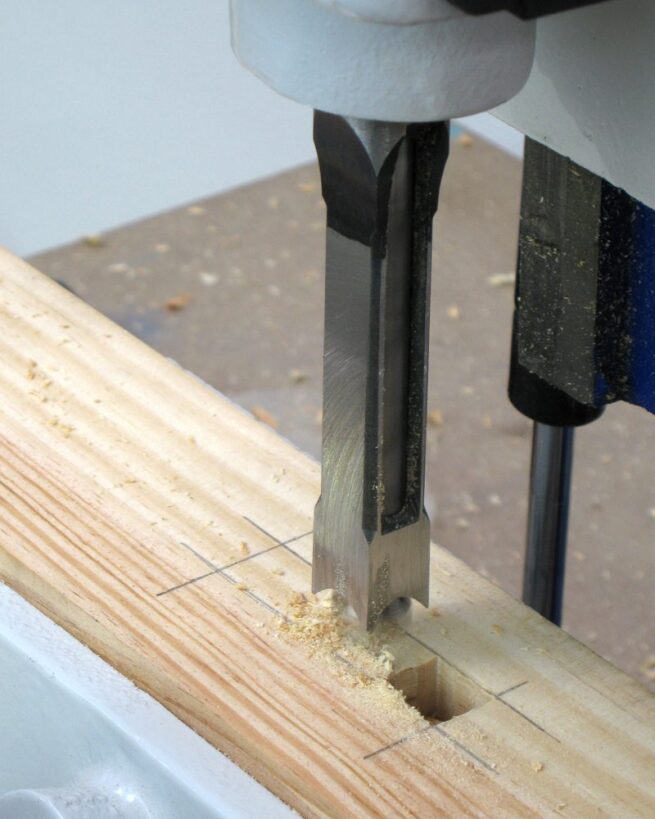

There are two separate controls for moving the table. Firstly the operator winds the table forwards or back until the chisel is aligned with the back edge of the mortice. Secondly the hand wheel is turned to move the table left or right until the chisel is positioned at one end of the mortice. Pulling the down feed handle lowers the chisel and begins the cut. Once the first square has been cut, the chisel is withdrawn, and the table moved over to begin the next square. Once the complete length of the mortice has been cut, the table can then be wound backwards as required to create a wider mortice.

A recent upgrade to this model is the inclusion of an adjustable mechanism on the down feed handle. It allows a comfortable handle starting position to be set, regardless of the height of the work piece.

A morticer with a sliding bed is more accurate and faster to achieve results. Also, a great deal easier to use than using the traditional style of morticer with a fixed bed.

The motor has been specially produced to run at a lower rpm than standard motors, which gives a better cut, with less chance of burning.

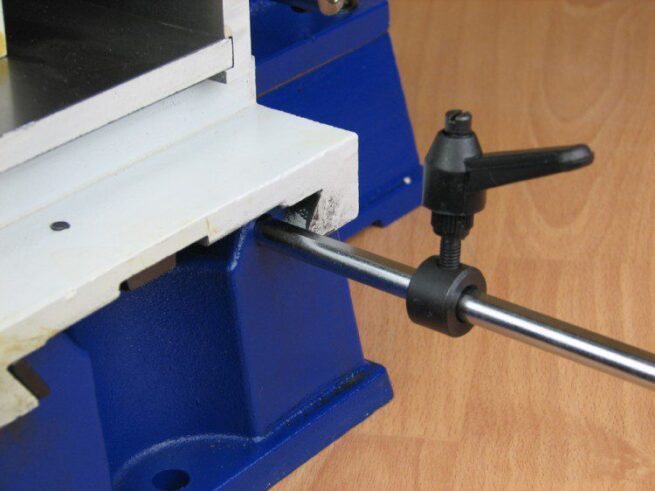

For anyone wanting to make a series of identical cuts there is a limit stop for the left and right side of the table movement.

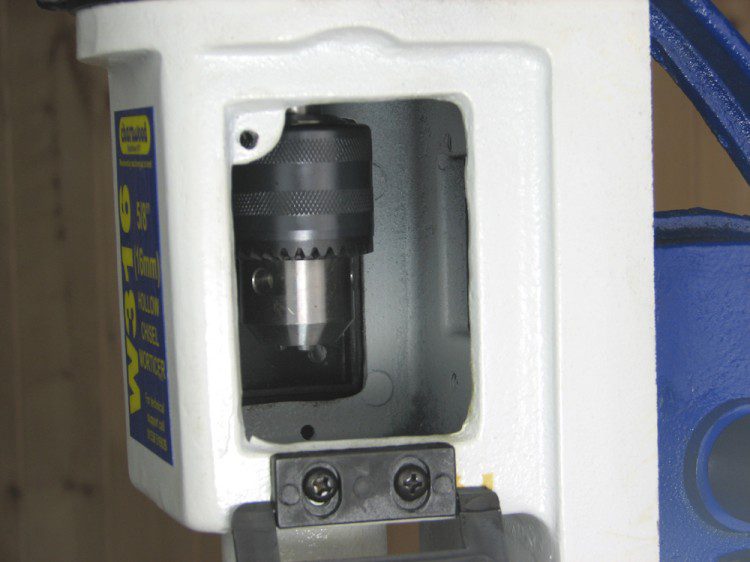

Supplied with, mortice depth stop, handle return stop, chuck key, work clamp, 3/4″ chisel bush, 1.75m cable and plug. Chisels are supplied separately.

Charnwood W316 Specification

From Chisel Bush to Table 220mm
Maximum timber height with a 1/2″ Chisel Fitted 110mm
Timber Clamping width 25mm (1″) to 100mm (4”)
Chisel capacity 1/4″ to 5/8″
Vertical Chisel Stroke 105mm (4”)
Accepts chisel shank size 3/4″
Table travel (left to right) 170mm (6.5”)
Table travel (front to back) 75mm (3”)
Motor (induction) 370w (1/2hp), 240v
Motor Speed 1400rpm
Dimensions (WxDxH) 520mm x 550mm x 790mm
Weight 42kg
Assembly Time Required 5 Minutes
Rating Hobby
Product Warranty 5 Years

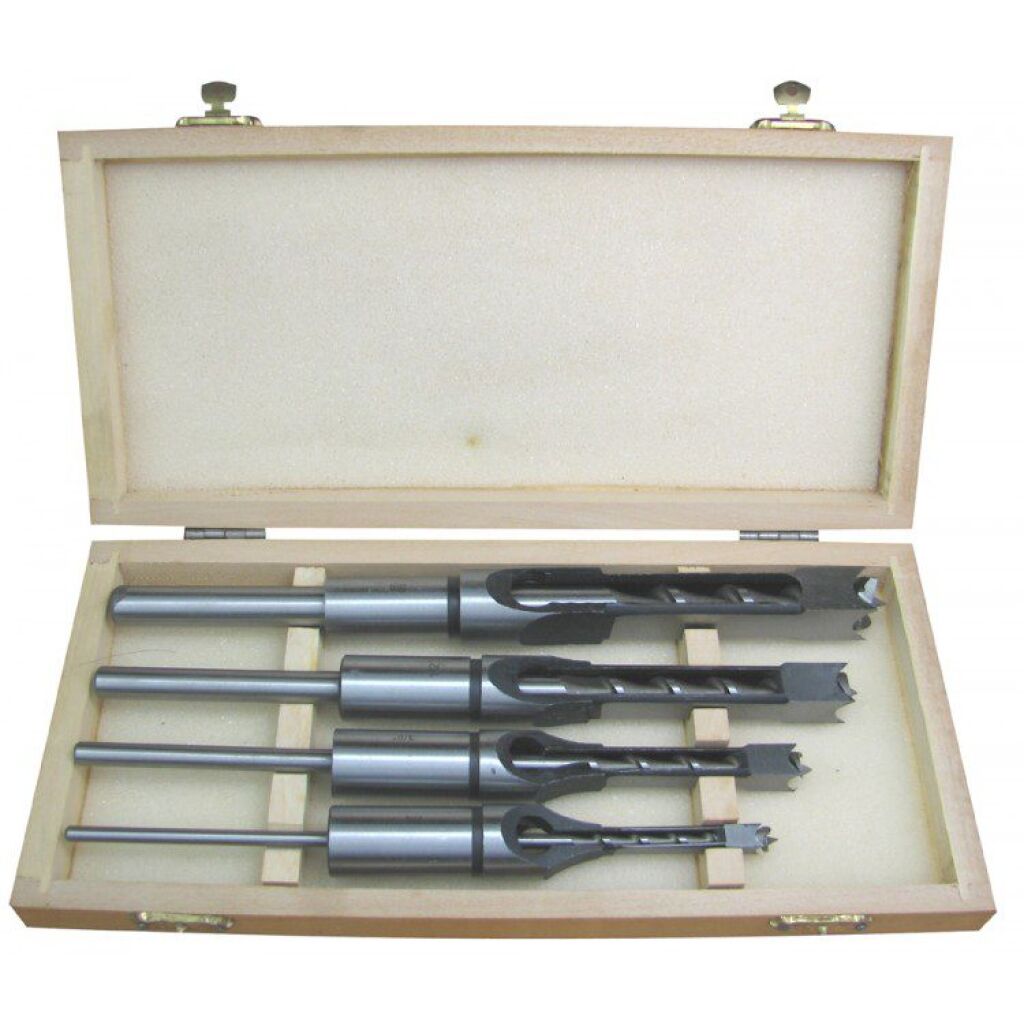

MCCSET4 4 Piece Hollow Chisel & Auger Set.

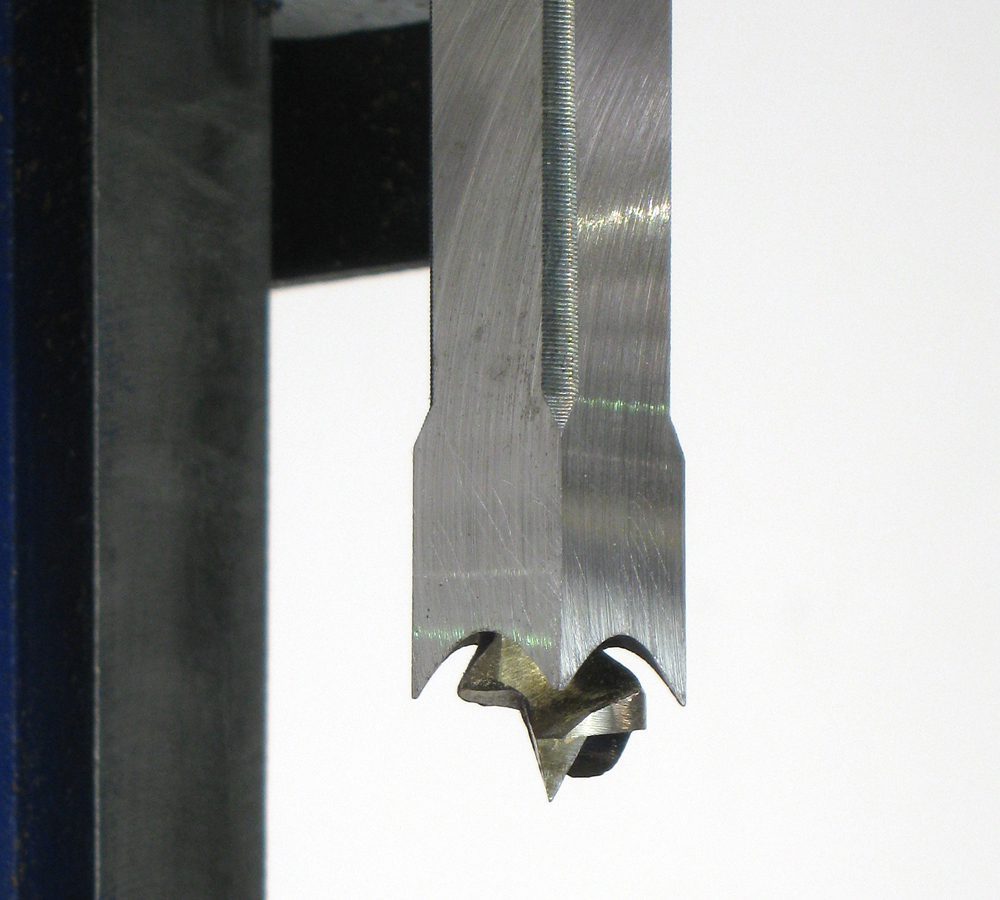

A set of 4 imperial sized mortice chisels, with full length windows for fast chip ejection. Supplied in a wooden storage case.


Chisel Size Shank Size Max. Cutting Depth Auger Diameter Auger Length
1/4″ 3/4″ 40mm 4mm 160mm
3/8″ 3/4″ 50mm 6mm 200mm
1/2″ 3/4″ 70mm 9mm 215mm
5/8″ 3/4″ 70mm 12mm 225mm


Chisels are supplied separately.
