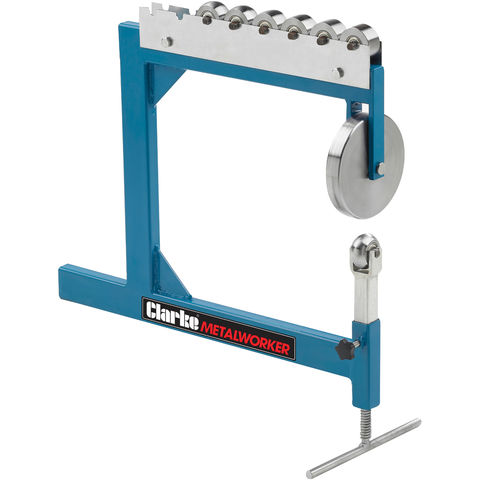

Clarke CBMEW1 Bench Mounted English Wheel

£173.00

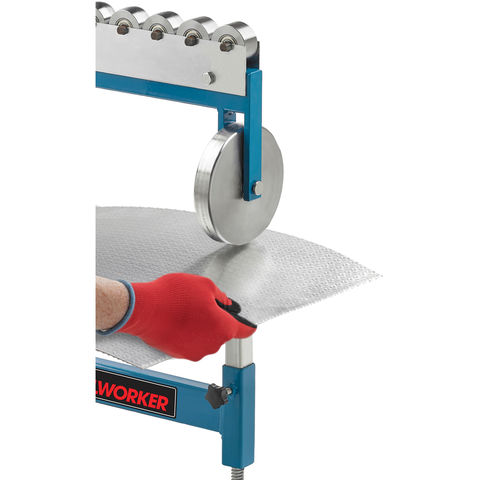

Lightweight and durable bench mounted english wheel, compatible with our range of bench-top vices. The CBMEW1 is ideal for shaping large panels of mild steel, copper or aluminium with smooth or compound curves without the need for heating or hammering. The English wheel comes supplied with a main rolling wheel and a range of 7 different anvil dies, which can be stored on the practical storage rack built into the top of the English wheel.

  • Robust and sturdy steel frame with durable finish
  • Convenient anvil die storage rack
  • Anvil yoke allows fast anvil change and easy pressure adjustment
  • Anvils fitted with sealed bearings for smooth accurate movement
  • Steel capacity: 16 gauge (1.5mm)
  • Copper & aluminium capacity: 14 gauge (1.8mm)
  • 7 anvil rollers; 1/2″, 1″, 1 1/2″, 2 1/2″, 5″ 9″, F (Flat)
  • English Wheel manual

Model CBMEW1
Dimensions
Length (mm) 700
Width (mm) 146
Height (mm) 630
Throat (mm) 400
Frame Thickness (mm) 3.2
Weight (kg) 12.15
Capacity
Mild Steel 16 Gauge, 1.5mm
Aluminium 14 Gauge, 1.8mm
Copper 14 Gauge, 1.8mm
