DASQUA PRECISION WORKSHOP TOOLS – GUARANTEED FOR LIFE

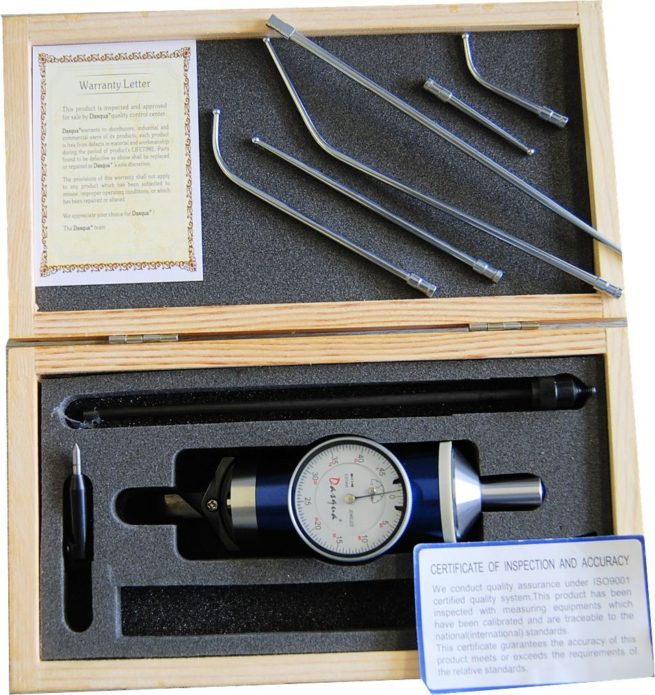

• Use this indicator to quickly center work pieces or fixtures on your
boring and milling set-up.
• Determining the centres of bores and shafts.
• Sturdy metal housing suitable for all workshops.
• Internal or External centering.
• Operates at any angle from vertical to horizontal without a change.

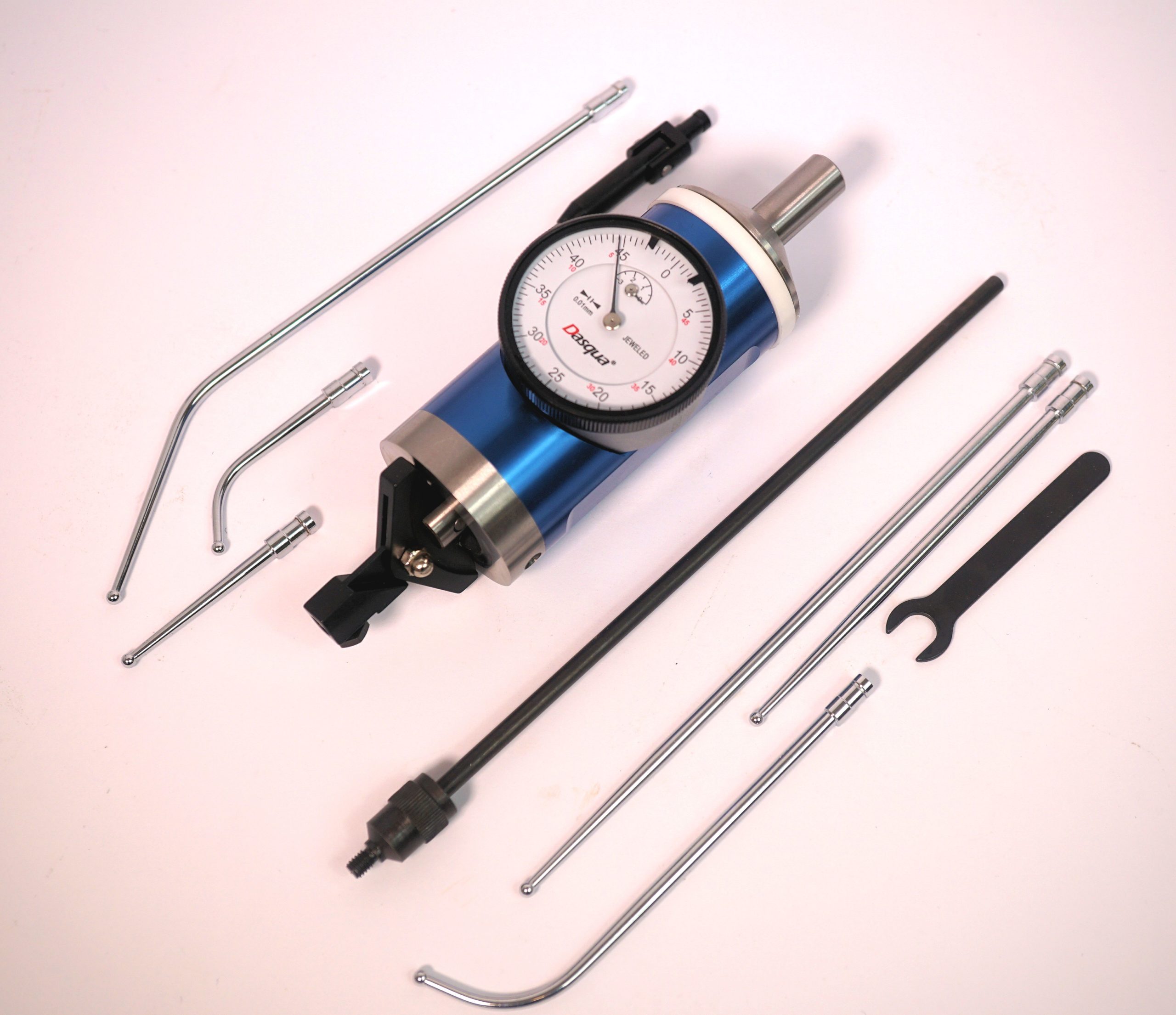

• 3 internal and 3 external feelers.
• Restraining arm.
• Center point feeler.
• The shank is 10mm diameter and 20 mm long.
• The indicator is 180mm long with 45 mm Straight Feeler.
• Internal diameter is from 4mm to 300 mm.
• External diameter is from 0mm to 300 mm.
• Straight feeler length: 45 mm /100mm/154 mm.
• Curved feeler length: 46 mm /100 mm /154 mm.
• Center point feeler length: 52.5 mm.
Measuring Range 0 – 6 mm
