NEW- ER 32 COLLET SETS COMPLETE WITH CHUCK FOR YOUR LATHE

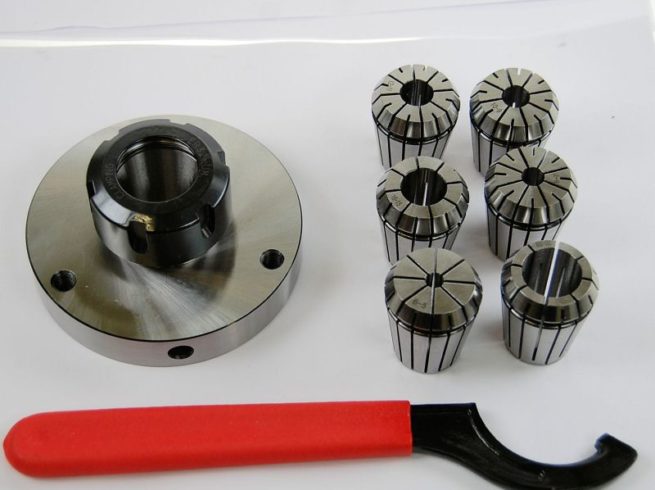

This set consists of a 100 mm Diameter ER32 Collet Chuck complete with clamping nut , spanner and 6 ER32 Collets in the following sizes
5-6 7-8 9-10 11-12 15-16 19-20 mm
The Chuck is of the recess mount type- the recess being 72 mm dia
It can be fixed to your existing backplate etc via the three M8 x 1.25 Threaded holes. (screws not inc)
PCD 84 mm
