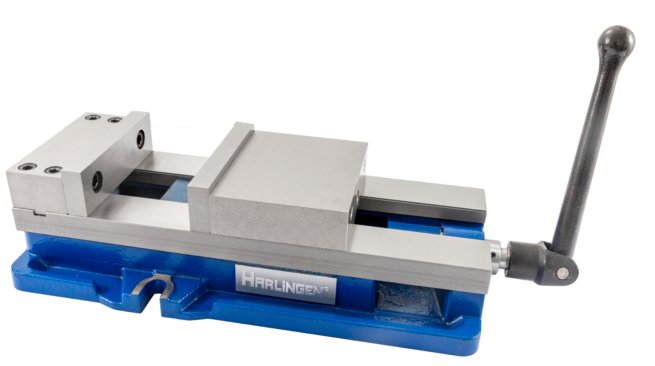

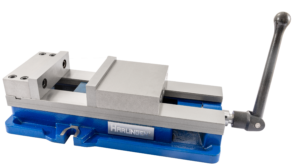

HARLINGEN 150 mm ANGLE TIGHT POSITIVE LOCK MACHINE VICE

£285.00

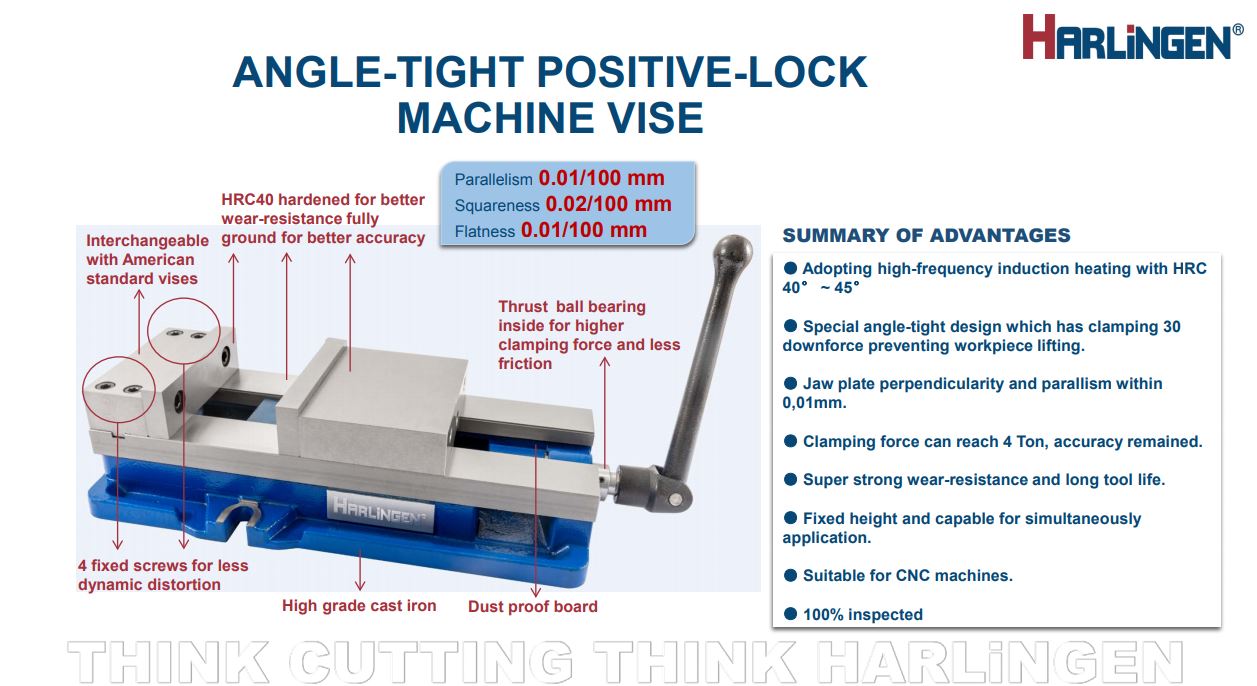

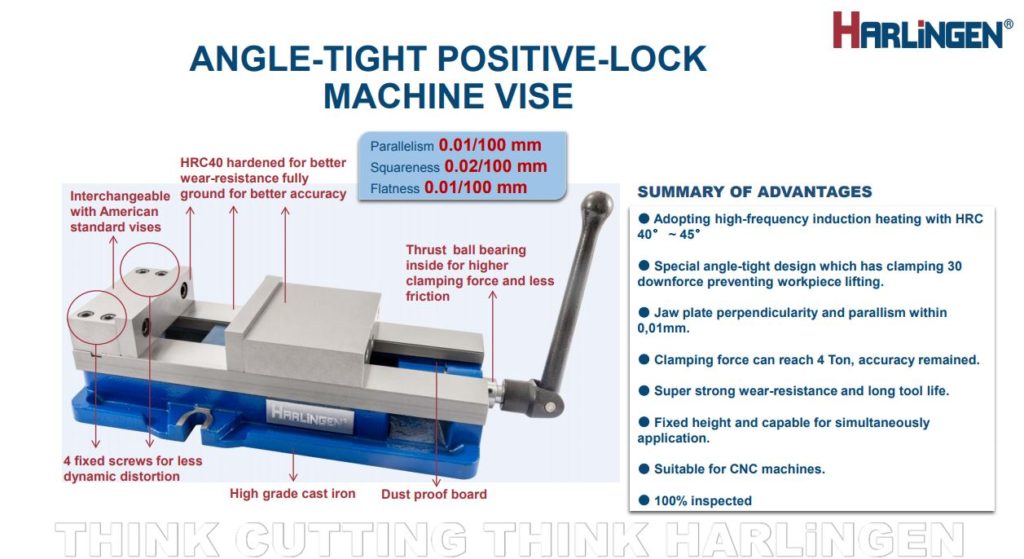

● Adopting high-frequency induction heating with HRC
40° ~ 45°
● Special angle-tight design which has clamping 30
downforce preventing workpiece lifting.
● Jaw plate perpendicularity and parallism within
0,01mm.
● Clamping force can reach 4 Ton, accuracy remained.
● Super strong wear-resistance and long tool life.
● Fixed height and capable for simultaneously
application.
● Suitable for CNC machines.
● 100% inspected

JAW WIDTH 150 MM

HEIGHT – 118 MM

WIDTH – 234 MM

JAW OPENING – 230 MM

LENGTH – 496 MM

WEIGHT – 33 KGS

Chronos Product Code: 40085007H Category:
