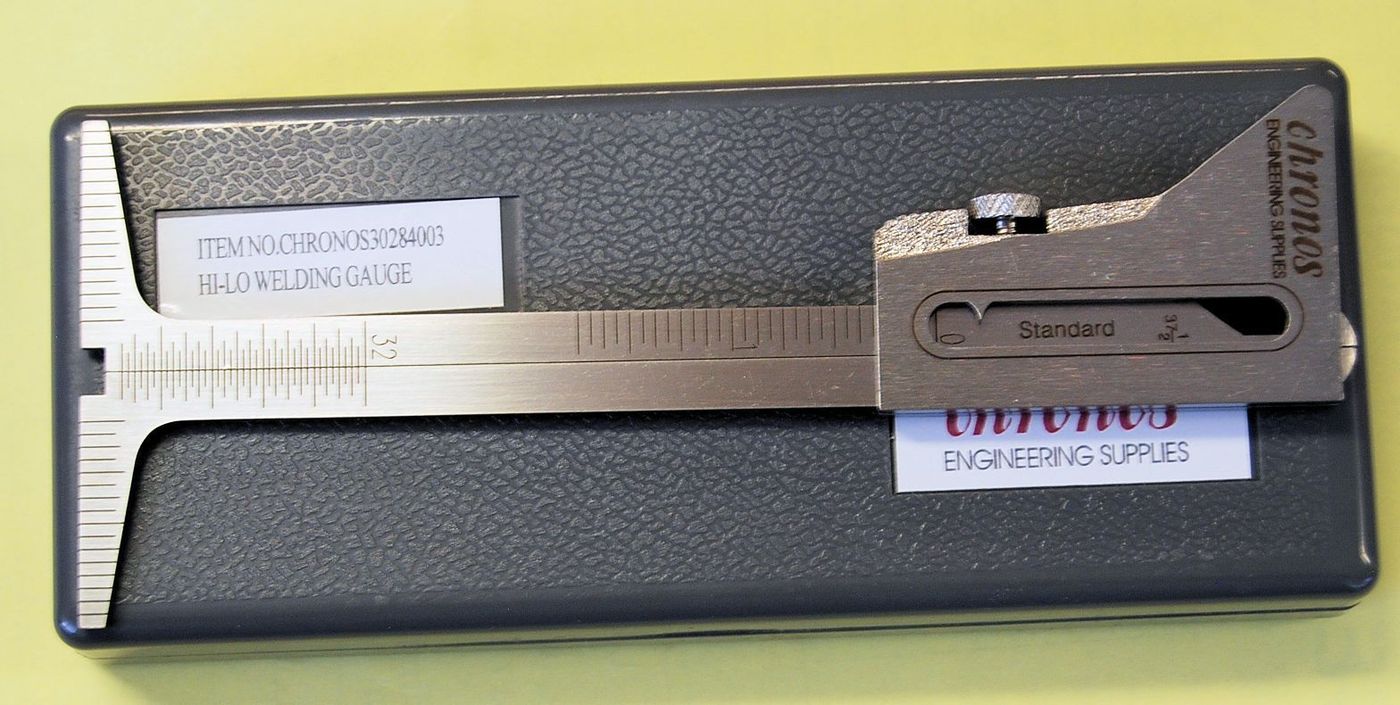

Hi – Lo Welding Gauge

Hi-lo Welding Gauge for Internal Alignment

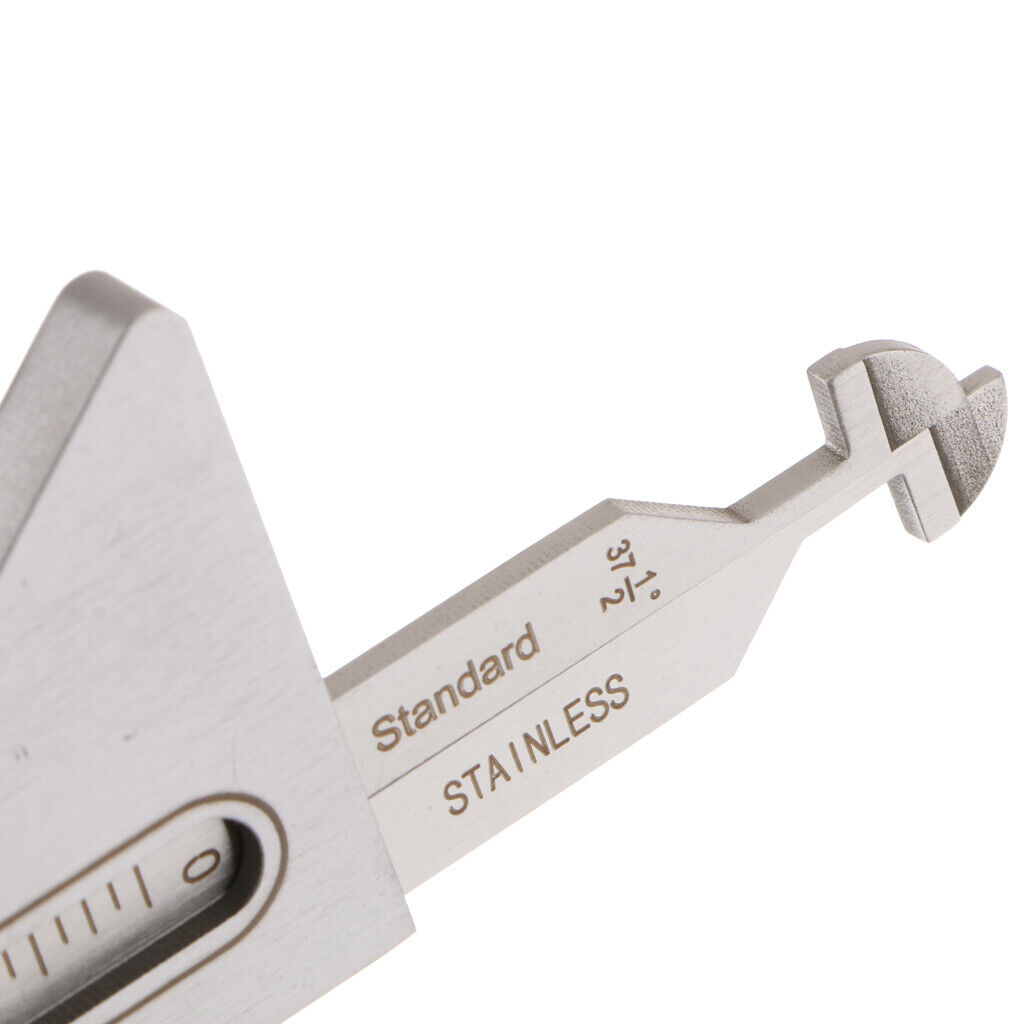

Hi-Lo gauge. Measures internal , Fit-up gap, Bevel on Pipe and Plate end preparation, Crown height, and Pipe and Plate wall thickness.Fit-up gap; Internal misalignment; Weld crown height; Scribe line, socket welds; Fillet weld size; Pipe wall thickness; Angle of bevel on end preperation to an accuracy of 0.8 mm (1/32”).It is widely used in oil pile inspection.
.
Features:
Hardened steel,
High Accuracy.
Highly polished surface.
Measurements read Imperial one side, Metric opposite side
With Lock screw.
COMPLETE WITH STORAGE CASE & INSTRUCTIONS
