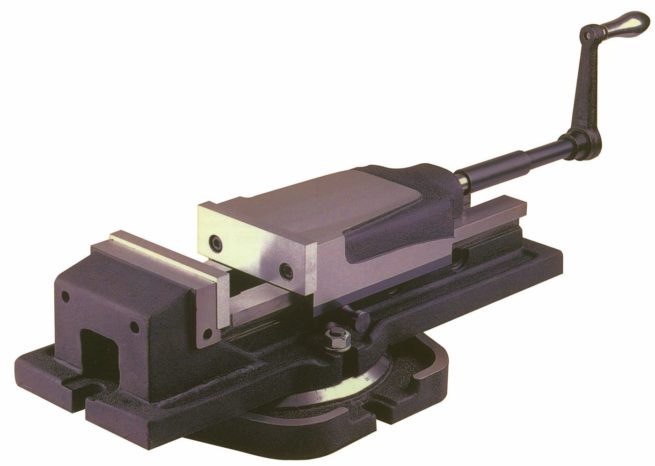

Hydraulic machine vice with swivel base
150 MM JAW WIDTH MODEL 220-003

Features:

· Solid structure for milling, drilling and grinding
· Vice body made of high quality casting which resists deflection or bending
· Hardened and ground guide surfaces
· Hardened and ground clamping jaws,
· Booster system, little effort, high pressing power when clamping
· Protected spindle which magnifies a small force into an enormous clamping force
· Large clamping range due to locking bolts with different hole spacings
· With swivel base, 360° turnable

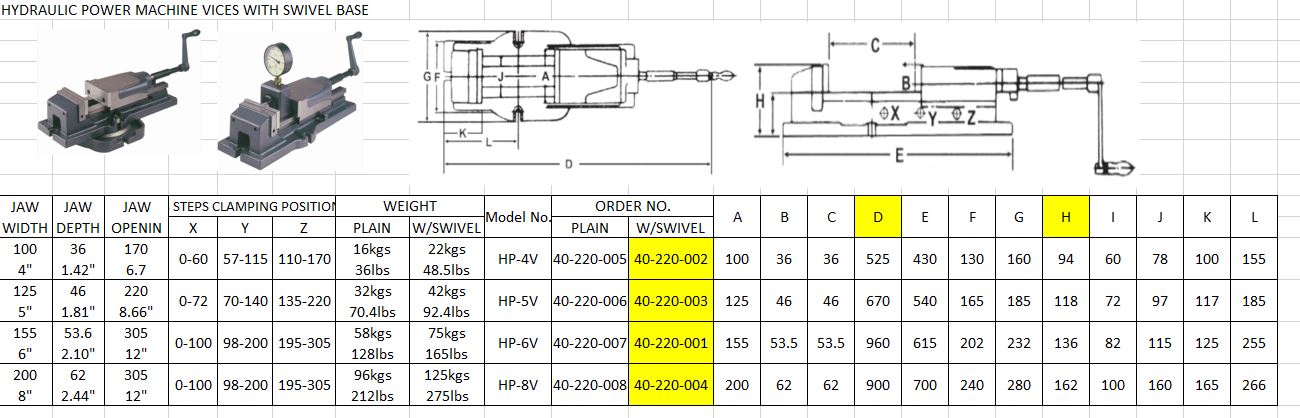

JAW WIDTH – 150 MM

JAW DEPTH – 46 MM

JAW OPENING – 210 MM

3 STEPS CLAMPING POSITION – 0-72 MM , 70-140 MM , 135-220 MM

WEIGHT 45KG

HEIGHT 118MM

LENGTH – 540 MM (WITHOUT HANDLE)
