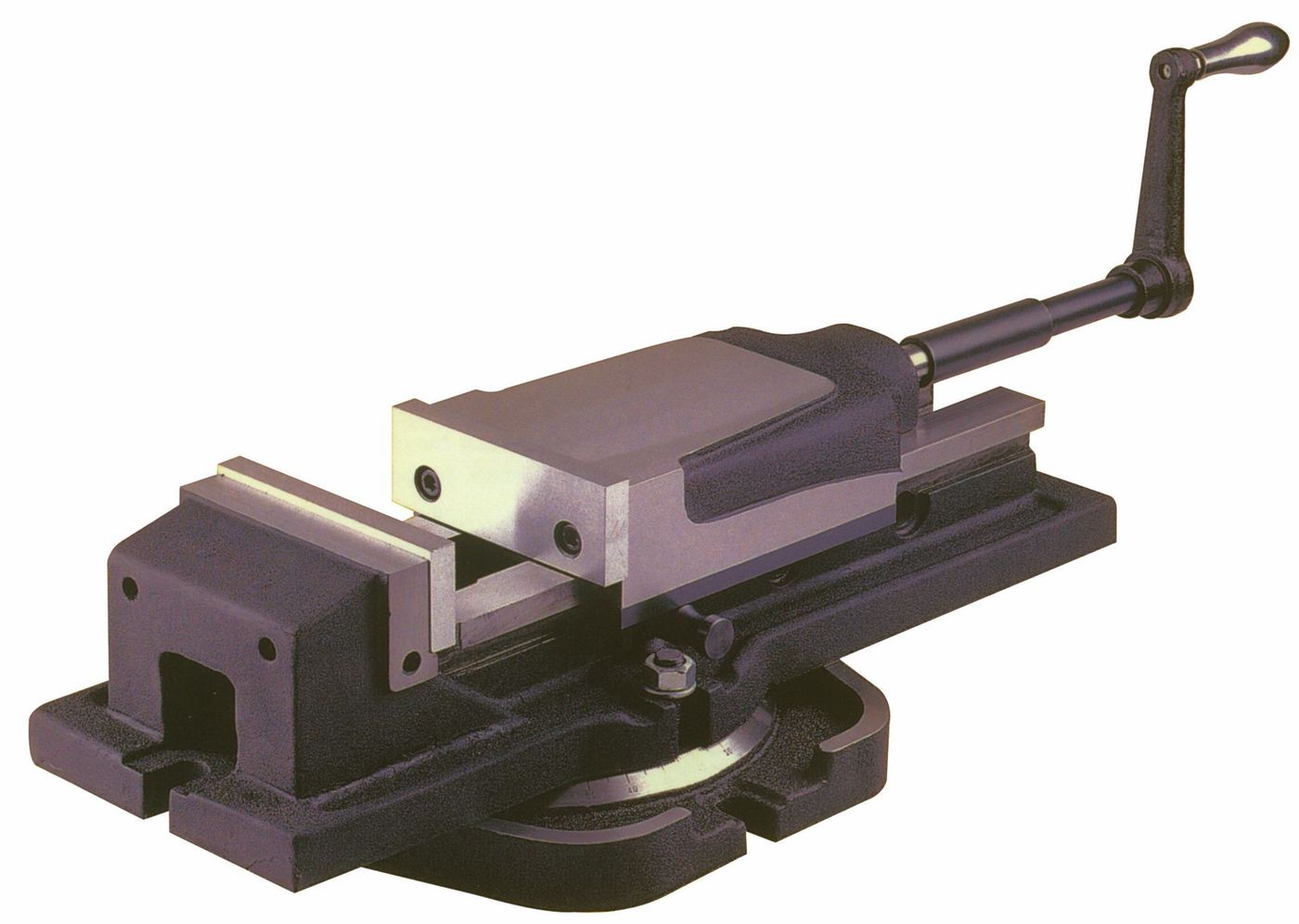

Hydraulic machine vice with swivel base
155 MM JAW WIDTH MODEL 220-001

Features:

· Solid structure for milling, drilling and grinding
· Vice body made of high quality casting which resists deflection or bending
· Hardened and ground guide surfaces
· Hardened and ground clamping jaws,
· Booster system, little effort, high pressing power when clamping
· Protected spindle which magnifies a small force into an enormous clamping force
· Large clamping range due to locking bolts with different hole spacings
· With swivel base, 360° turnable

JAW WIDTH – 155 MM

JAW DEPTH – 53.6 MM

JAW OPENING – 300 MM

3 STEPS CLAMPING POSITION – 0-100 MM , 98-200 MM , 195-305 MM

WEIGHT 58KG

HEIGHT 136MM

LENGTH – 615 MM (WITHOUT HANDLE)

WE CAN ONLY SHIP THIS TO THE UK MAINLAND
