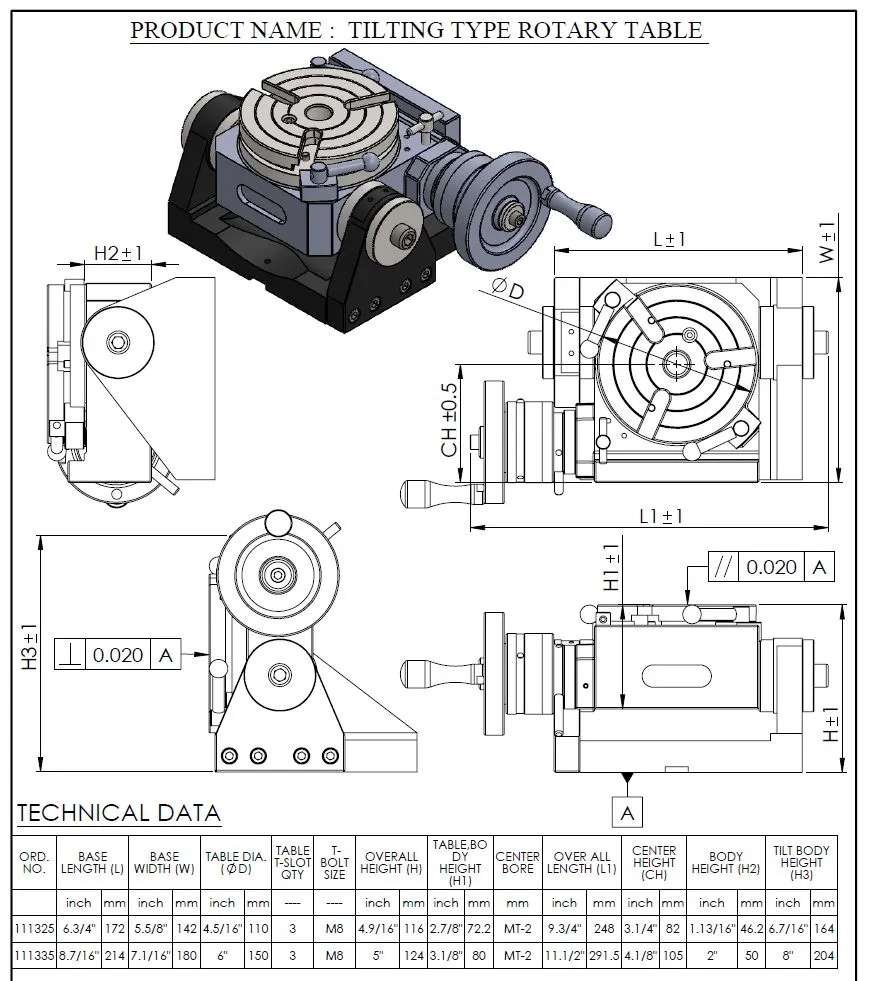

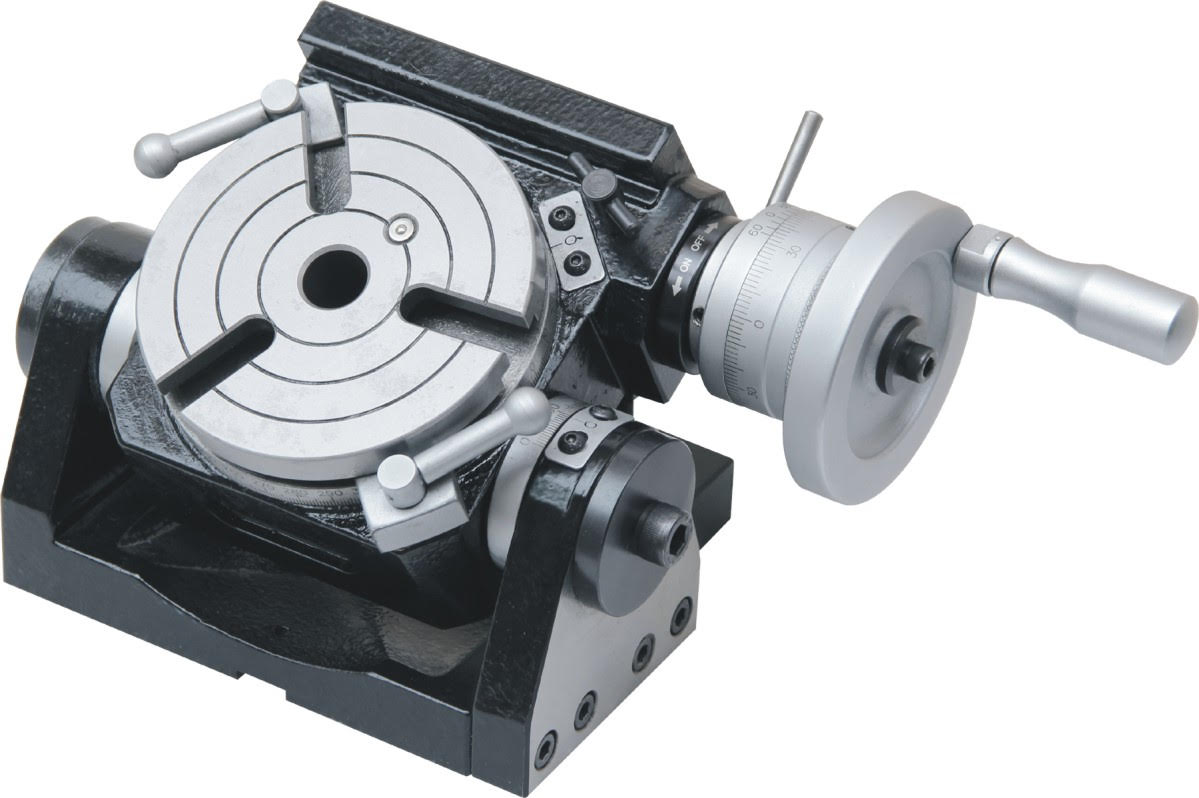

NEW ! Soba 4 5/16″ / 108 mm Tilting Rotary Table & Dividing Set

£181.45

FANTASTIC OFFER- PRICE INCLUDES THE ROTARY TABLE & SET OF 3 DIV PLATES
They have a totally ground finish which provides high precision and smooth rotation – The centre of the table is fitted to an inner conical Morse tapered MT2 sleeve.
The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.

  • Tilting by rigid & strong design, 2 supports & rigid clamping system construction.
  • Accurate and built for use in milling , boring and other machines.
  • Indexing, facing and other application can be done rapidly with extreme precision
  • Worm shafts are hardened and precision ground.
  • Indexing can be done with the included dividing plates.



Chronos Product Code: 111325 Category:
