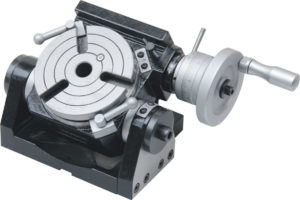

NEW Soba 4 5/16 inch / 108mm Tilting Rotary Table and Dividing Set
NEW Soba 4 5/16 inch / 108mm Tilting Rotary Table and Dividing Set (SKU: 111325)
FANTASTIC OFFER- PRICE INCLUDES THE ROTARY TABLE & SET OF 3 DIV PLATES
They have a totally ground finish which provides high precision and smooth rotation – The centre of the table is fitted to an inner conical Morse tapered MT2 sleeve.
The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.
- Tilting by rigid & strong design, 2 supports & rigid clamping system construction.
- Accurate and built for use in milling , boring and other machines.
- Indexing, facing and other application can be done rapidly with extreme precision
- Worm shafts are hardened and precision ground.

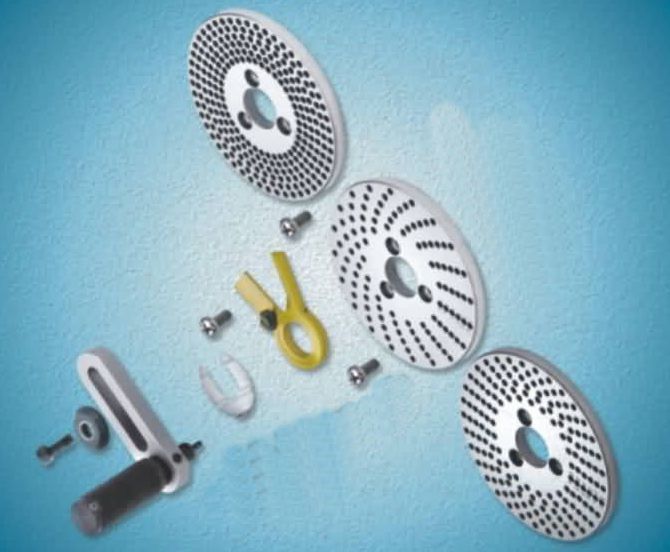

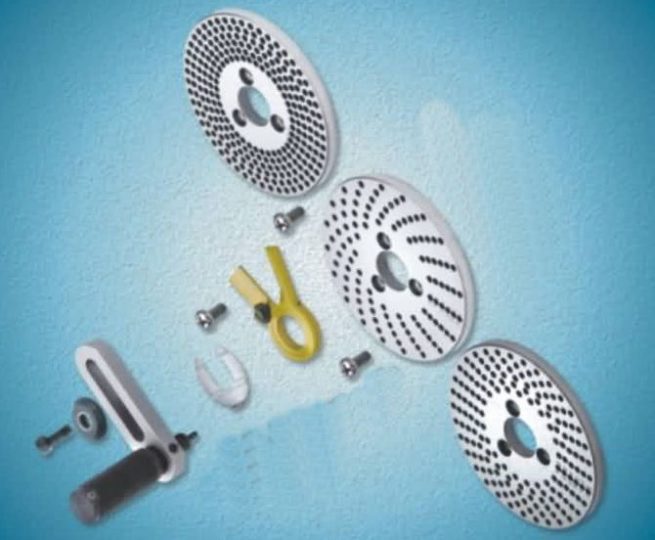

- Indexing can be done with the included dividing plates.
£181.45.
In stock
FANTASTIC OFFER- PRICE INCLUDES THE ROTARY TABLE & SET OF 3 DIV PLATES
They have a totally ground finish which provides high precision and smooth rotation – The centre of the table is fitted to an inner conical Morse tapered MT2 sleeve.
The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.
- Tilting by rigid & strong design, 2 supports & rigid clamping system construction.
- Accurate and built for use in milling , boring and other machines.
- Indexing, facing and other application can be done rapidly with extreme precision
- Worm shafts are hardened and precision ground.
- Indexing can be done with the included dividing plates.
