PP-U3 Cutter & Tool Grinder

Sale!

NEW FROM CHRONOS !

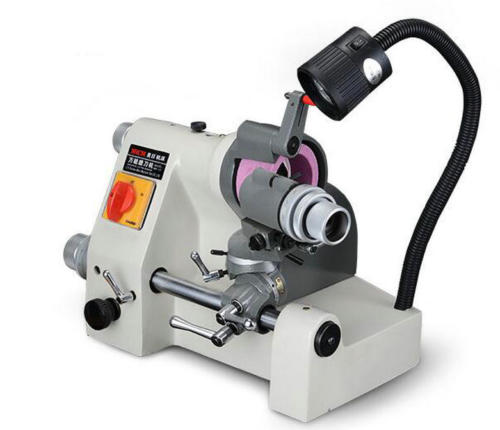

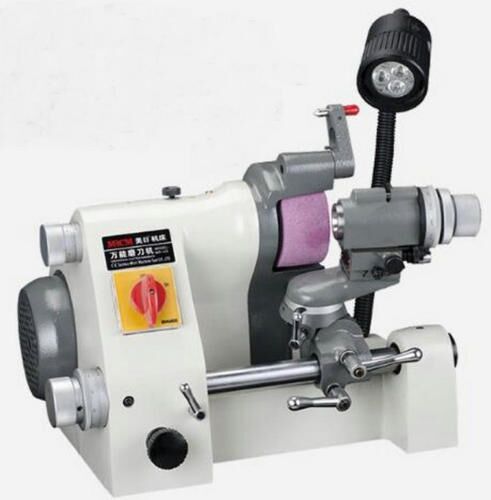

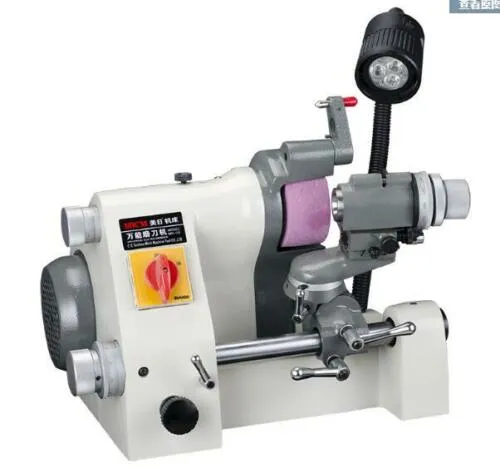

PP-U3 CUTTER & TOOL GRINDER
INCLUDES ATTACHMENTS FOR SHARPENING TWIST DRILLS , ENDMILLS , SLOT DRILLS & LATHE TOOLS !
TWO GRINDING WHEELS INCLUDED – FOR HSS & CARBIDE
Description
1. Used for grinding of HSS and carbide engraving/carving cutters with single and multiple flutes in various shapes.
2. With accessories provided the cutter grinder can be set up to grind end mills, drill bits and turning tools.
3. Grinding wheel size 100 X 50 X 20mm
4. Halogen Light 12V
5. Includes 5C Collets 4 – 6 – 8 -10 & 12 mm – Others available
SPECIFICATIONS:
MODEL PP-U3
Max. Collect capacity Ø 16/28mm(5C collet: 3-25mm)
Max. Grinding capacity Ø 25mm
Taper angle 0° ~ 180°
Relief angle 0° ~ 45°
Negative angle 0° ~ 25°
Spindle speed 5, 000 RPM
Cup grinding wheel 100 X 50 X 20mm
Motor 1/4HP, 220V, 50/60Hz
N. W. / G. W 46kgs / 60kgs
Packing size 55X44X40cm

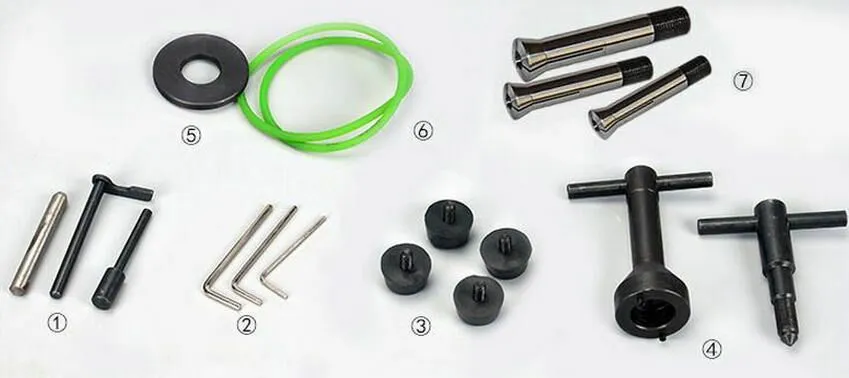

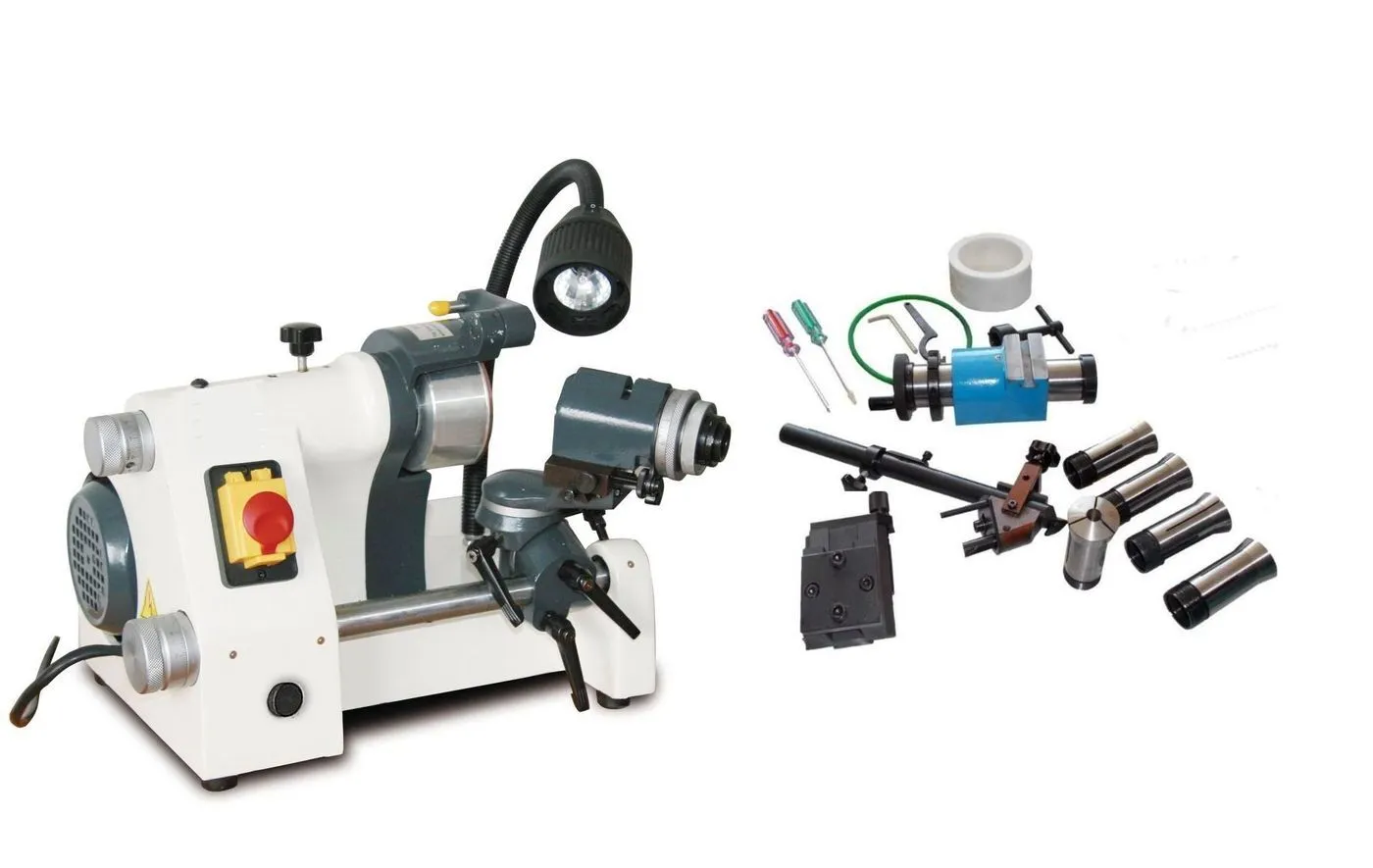

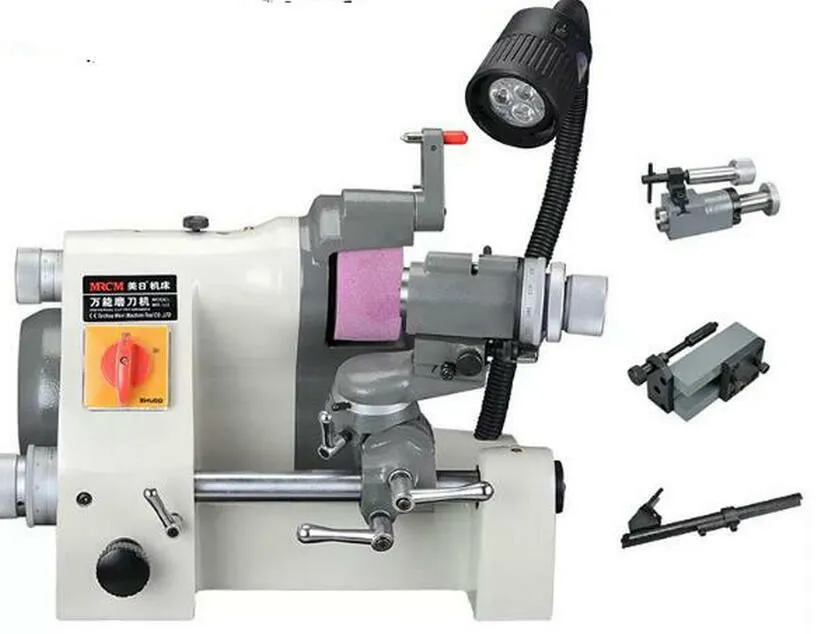

Standard Accessories:

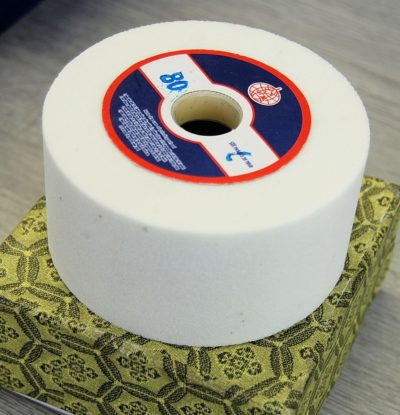

Grinding wheel Ø 100X50XØ 20mmx1PC
Hexagon Wrench M2.5X1PC M3X1PC M4X1PC M5X1PC M6X1PC M8X1PC
Cross screw driver 5X100X1PC
Screw driver 5X100X1PC
Drive belt 1 PCS
Wheel dresser with diamond 1 PCS
Wheel flange mounted 1 PCS
Collect Ø 4, 6, 8, 10, 12mm(5PCS)
Twist drill grinding attachment 1 PCS
End mill grinding attachment 1 PCS
Lathe tool grinding attachment 1 PCS
WE CAN ONLY SHIP THESE TO THE UK MAINLAND

PP-U3 operation manual

£645.00 £604.16

Price includes mainland delivery (UK)

After adding to the basket, you can checkout and choose to pay with PayPal or a credit / debit card. You can also buy this product and pay directly with PayPal by clicking the button below....

CLICK HERE FOR THE PRODUCT MANUAL

PP-U3 Cutter & Tool Grinder from Chronos.

Chronos Product Code: 41133001 Categories: ,
Contact us for more info on PP-U3 Cutter & Tool Grinder Price includes UK mainland delivery. Use the livechat below or email us for more info.

Carriage for the UK Mainland is FREE on all tool orders  - typically arriving within a few days.  NEXT DAY DELIVERY options are also available. Also great prices for European and Worldwide shipping on all engineering tools.
