Proxxon FD 150/E Lathe 24150


Key Features
Accurate bed made from cast aluminium
Spindle made from diecast aluminium
Speed range of 500-5000rpm

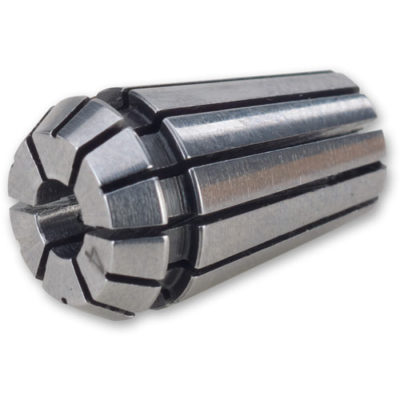

Headstock suibtable to take ER11 collets
Tailstock has a MK0/short bore
Quick change tool post for 6mm tooling

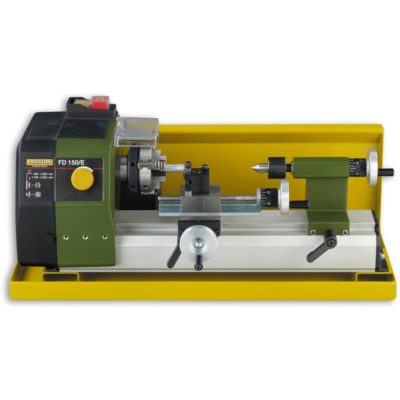

The Proxxon FD150/E is a compact metal working lathe for facing and longitudinal turning, boring, taper turning, parting and drilling. The high maximum speed (5000rpm) allows very small diameters to be machined. The lathe has an accurate bed made from cast aluminium and the spindle from diecast aluminium. It is run using a powerful, quiet running DC motor which has a two stage belt drive used in conjunction with an electronic speed control to achieve the full speed range (500-5000rpm). The main spindle runs with precision bearings and has a continuous bore of 8.5mm. A three jaw self-centring chuck is supplied with an inside jaw range of 1.5-32mm and 12-65mm outside. The tailstock comes with a live centre and has an MK0/short bore. There is a quick change tool post with the machine accepting 6mm tooling.
Specification for Proxxon FD 150/E Lathe:
Cross Slide Travel (X) 40mm, (Z) 60mm
Distance Between Centres 150mm
Height Over Cross Slide 33mm
Model FD 150/E
Nett Weight 4.5kg
Overall L x W x H 360 x 150 x 150mm
Speed Range 500 – 5000rpm
Spindle Bore 8.5mm
Spindle Speed MK0/short bore

Price includes delivery to the UK mainland (excl Scottish Highlands). You can add this product to the shopping basket and pay with a credit/debit card, or with PayPal.

Chronos Product Code:  502015 Category:
