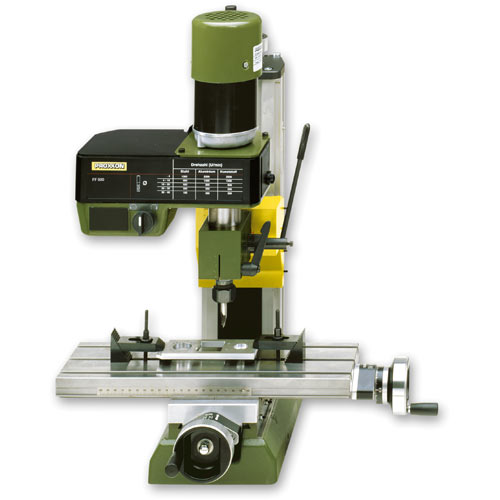

Proxxon FF 500 MICRO Mill 211074

£1,650.00.

* A very accurate European made machine
* Powerful, quiet and shock-free condenser motor (400W)
* Solid column with dovetail slideway
* Poly-V belt drive for 6 spindle speeds between 180 and 2,500rpm
* Plane-milled table in steel (400 x 125mm) with three T-slots
* Handwheels with adjustable scale ring 1 rev. = 2.0mm, 1 coarse division = 0.1mm, 1 fine division = 0.02mm

Quiet, good looking and multifunctional. For accuracies of up to 0.05 mm. A machining centre for milling, drilling and countersinking which has yet to be equalled. Made in Europe.Milling head can be pivoted by 360° (with degree graduation). Preset rotational speed by simple moving of Poly V-belt. Sleeve feed (30mm) using drilling lever with scale ring (1 graduation line = 1mm).Workpiece fixing using 6 – 8 – 10 and 12mm chucks (included in delivery). Extension height adjustment using hand wheel with scale ring (1 turn = 2mm). Solid, plane-milled compound table in steel with three continuous T-slots for size 8 standard T-nuts.Technical data: 220 – 240V. 400W. 50/60Hz. Spindle speeds 180, 350, 550, 800, 1,300 and 2,500rpm. Extension (to spindle centre) 100mm. Column 120 x 100 x 420mm. Table 400 x 125mm. Traverse range vertical (z-axis) 220mm, transverse (x-axis) 310mm, depth (y-axis) 100mm. Total height 780mm. Weight approx. 47kg.
Specification for Proxxon FF 500 MICRO Mill:
Technical data:
220 – 240V. 400W. 50/60Hz.
Spindle speeds 180 – 350 – 550 – 880 – 1300 and 2500rpm.
Throat (to spindle centre) 125mm.
Column (120 x 100 x 420mm) of aluminium continuous casting, intricately ribbed for greatest rigidity.
Table 400 x 125mm.
Traverse range vertical (z-axis) 220mm, transverse (x-axis) 310mm, depth (y-axis) 100mm.
Total height max. 780mm.
Weight approx. 47kg.
Note:
The MICRO miller FF 500 is also available as FF 500/CNC with CNC control of 3 tool axes, including recirculating ball spindles, step motors and user-friendly WINDOWS-compatible software.
