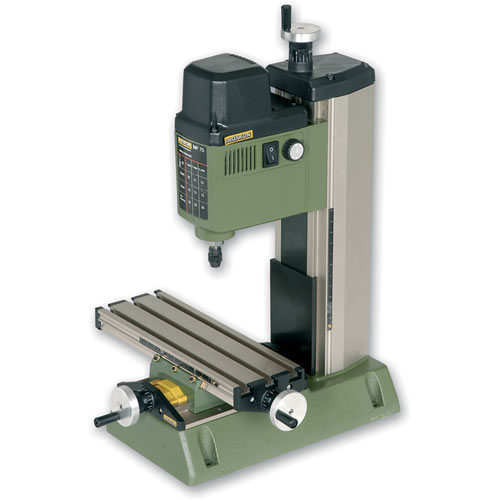

Proxxon MF 70 Milling Machine 371104


This is a super little machine, well suited to modelling work and for the manufacture of small precision components in a variety of materials. The extruded aluminium compound table has low backlash leadscrews and adjustable gib plates for smooth, accurate movement. Supplied complete with a set of six collets of 1.0mm, 1.5mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm diameter and a work clamping kit. An optional set of solid carbide cutters is available, sizes 1.0mm, 2.0mm and 3.0mm.

Specification for Proxxon MF 70 Milling Machine:
Base Size 130 x 225mm
Collets Supplied 1.0mm,1.5mm,2.0mm,2.4mm,3.0mm,3.2mm
Lateral Table Movement 46mm
Longitudinal Table Movement 134mm
Model MF70
Nett Weight 7kg
Overall L x W x H 270 x 270 x 340mm
Power 100W
Spindle Speed 5,000-20,000rpm
Spindle Travel 80mm
T Slot Size 12 x 6 x 5mm
Table Size 200 x 70mm
Table Travel 134 x 46mm

Price includes delivery to the UK mainland (excl Scottish Highlands). You can add this product to the shopping basket and pay with a credit/debit card, or with PayPal.
