Proxxon Universal Milling System UF/E

Proxxon Universal Milling System UF/E (SKU: 107267)

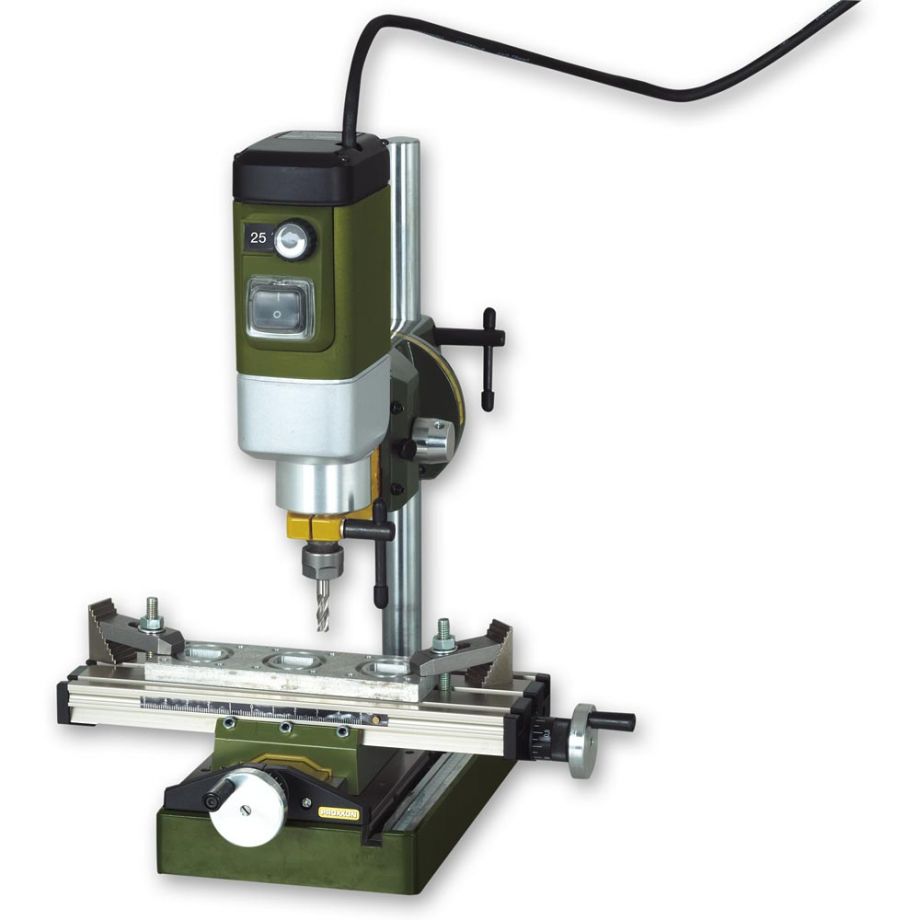

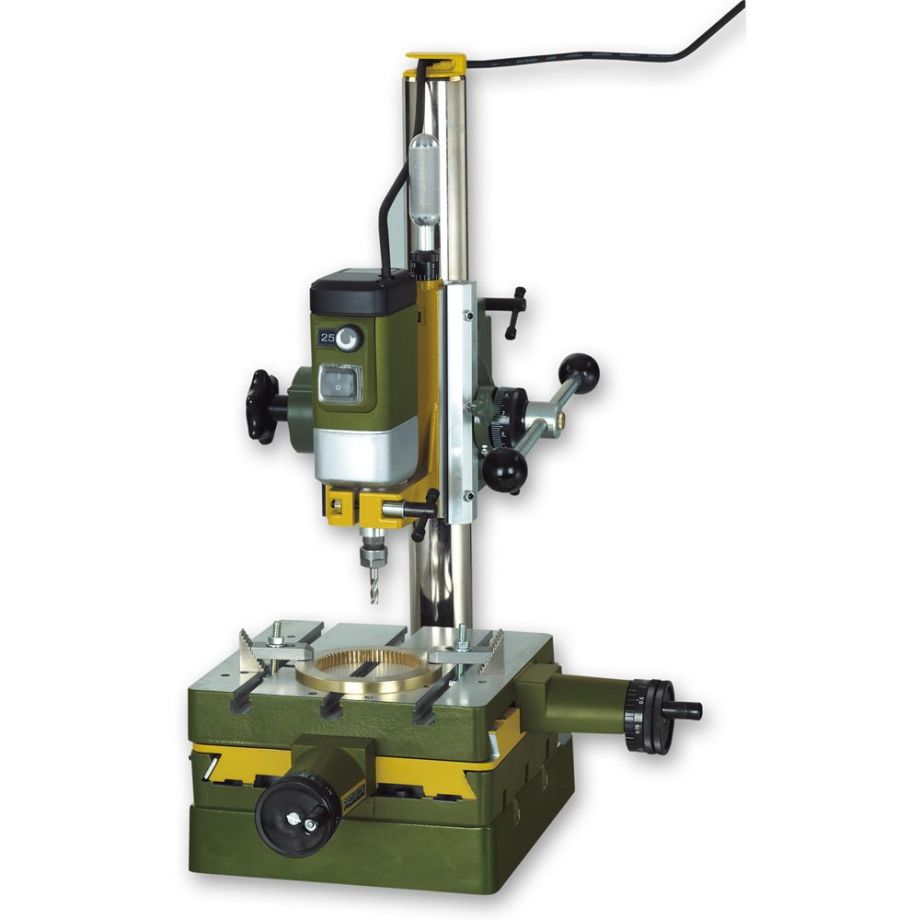

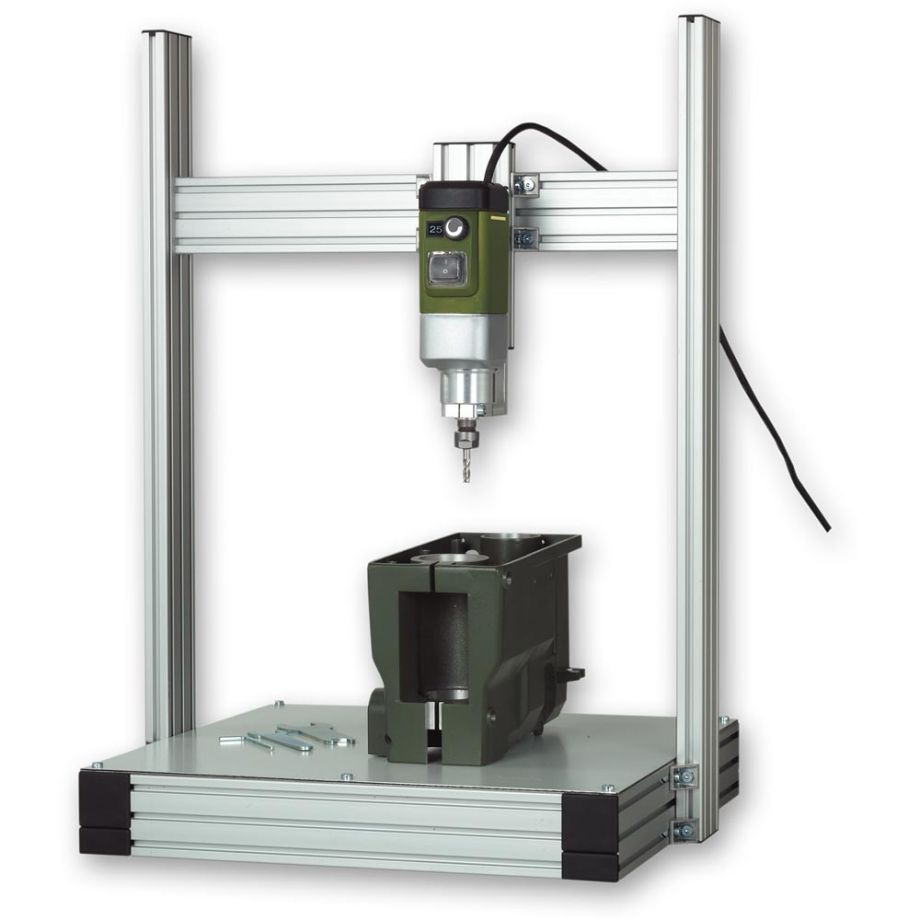

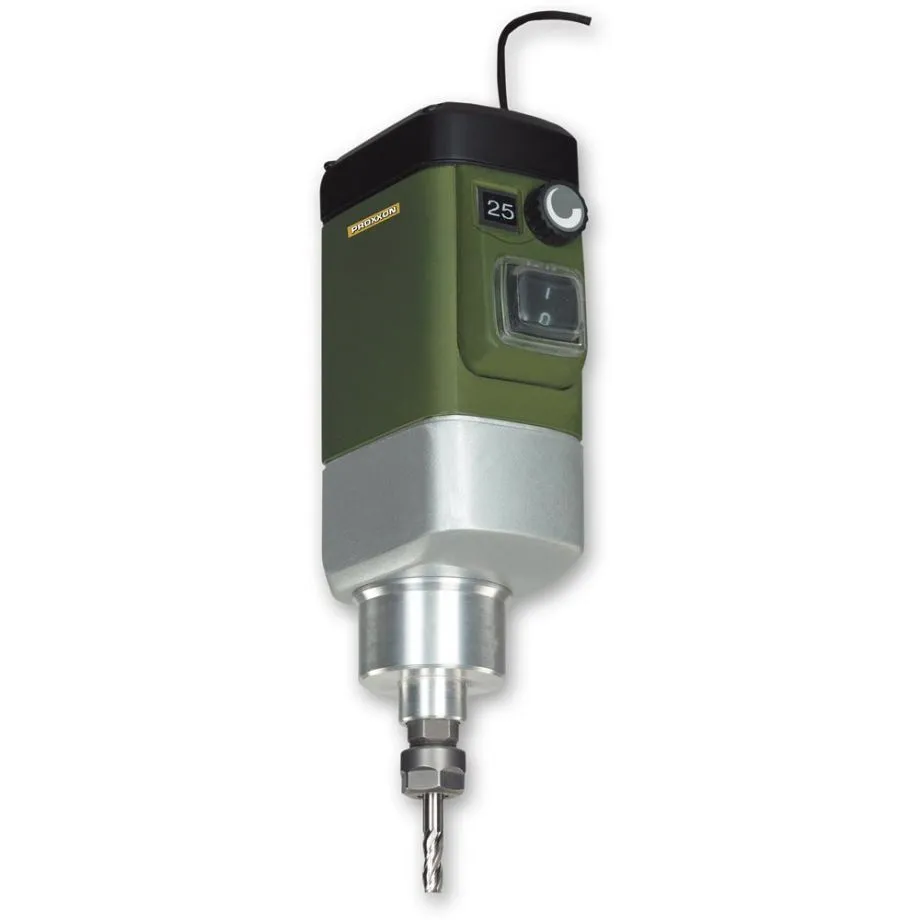

The Proxxon Universal milling system UF/E is a powerful, highly accurately machined motor unit. It produces high torque even at lower speeds. The unit is compact and lightweight at only 730g. The maintenance free brushless special motor has variable speed pre-selection from 10,000 to 30,000rpm with a digital speed display. The die-cast aluminium housing has two mounting options, a 20mm MICROMOT standard collar and 43mm European standard spindle collar. The triple ball bearing spindle guarantees high concentric accuracy and smooth running. An ideal companion to the Proxxon BFB 2000 Mill/Drill Stand

Supplied with three ER11 collets; sizes 2.5 – 3 and 6 mm.

Key Features

  • Maintenance-free, brushless DC-motor
  • Variable speed pre-selection 10,000rpm to 30,000rpm
  • Digital speed indication
  • Precisely machined die-cast aluminium housing
  • Triple ball-bearing spindle high concentric accuracy
  • Two mounting options: 43 mm and 20 mm
2 Year Warranty
More Information
Nett Weight 730 g
Power 250 W
Rating Light Trade
Spindle Speed 10,000 – 30,000 rpm (Var)
Voltage 230 V

£250.00.

In stock

The Proxxon Universal milling system UF/E is a powerful, highly accurately machined motor unit. It produces high torque even at lower speeds. The unit is compact and lightweight at only 730g. The maintenance free brushless special motor has variable speed pre-selection from 10,000 to 30,000rpm with a digital speed display. The die-cast aluminium housing has two mounting options, a 20mm MICROMOT standard collar and 43mm European standard spindle collar. The triple ball bearing spindle guarantees high concentric accuracy and smooth running. An ideal companion to the Proxxon BFB 2000 Mill/Drill Stand

Supplied with three ER11 collets; sizes 2.5 – 3 and 6 mm.

Key Features

  • Maintenance-free, brushless DC-motor
  • Variable speed pre-selection 10,000rpm to 30,000rpm
  • Digital speed indication
  • Precisely machined die-cast aluminium housing
  • Triple ball-bearing spindle high concentric accuracy
  • Two mounting options: 43 mm and 20 mm
2 Year Warranty
More Information
Nett Weight 730 g
Power 250 W
Rating Light Trade
Spindle Speed 10,000 – 30,000 rpm (Var)
Voltage 230 V
