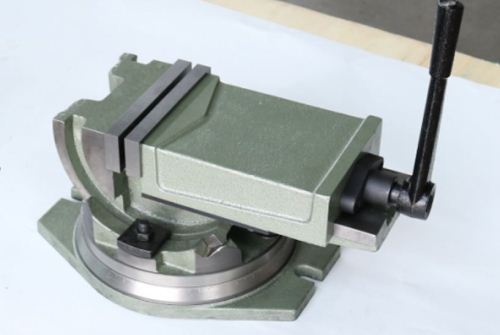

QHK-100– Precision Tilting Swivelling Milling Vice 100 mm
1.Manufactured from high quality cast iron.
2.Both parallelism and verticality about the two jaws are 0.025mm/100mm.
3.The vice can be adjusted and locked at random positions from the horizontal position
to the verticall position(0~90°) with swivelling base being rotated 360°.
4.It can be widely used for processing all kinds angels of surface.slots and holes.
5. The jaws are fully hardened and ground
Width of Jaw 100 mm
The mounting slots are 225 mm apart . They are 22 mm long and 15 mm wide
Height of Jaw 41 mm
Total height – 148 mm
Max Opening 100 mm
