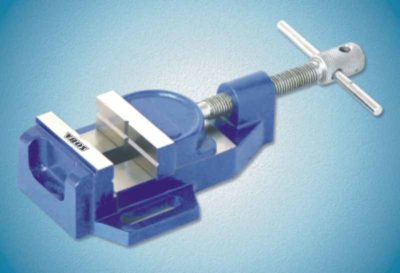

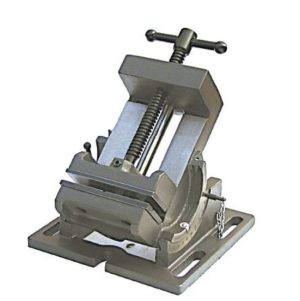

QK-D series tilting vices can be tilted to any position from 0~90 °
Use in your drilling machine for machining inclinable surfaces
Made by high quality Solid cast-iron
Base facilitates an endless combination of mounting options
Perfect for those difficult drill press applications

JAW WIDTH  4″(100mm)

JAW DEPTH  1-5/8″(46mm)

JAW OPENING  4″(102 mm)

BASE- 190 MM X 185 MM
HEIGHT WHEN NOT TILTED – 120 MM
4 MOUNTING SLOTS EITHER SIDE – 160 MM CENTRE TO CENTRE
2 ACROsS THE OTHER SIDE 170 MM CENTRE TO CENTRE
V JAW FOR ROUND MATERIAL
WEIGHT 6.9 KG
