SCT Cross Slide Milling Table

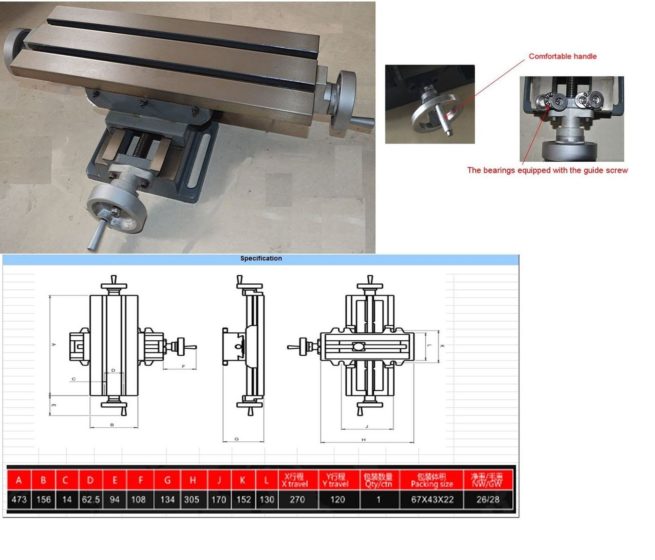

These rigid precision built slide tables are used for inspection and layout as well as various machining and positioning operations. • All tables are equipped with the comfortable handles with living sleeve that provide rapid positioning.
• The handles do not extend below the base to eliminate interference with the machine table.

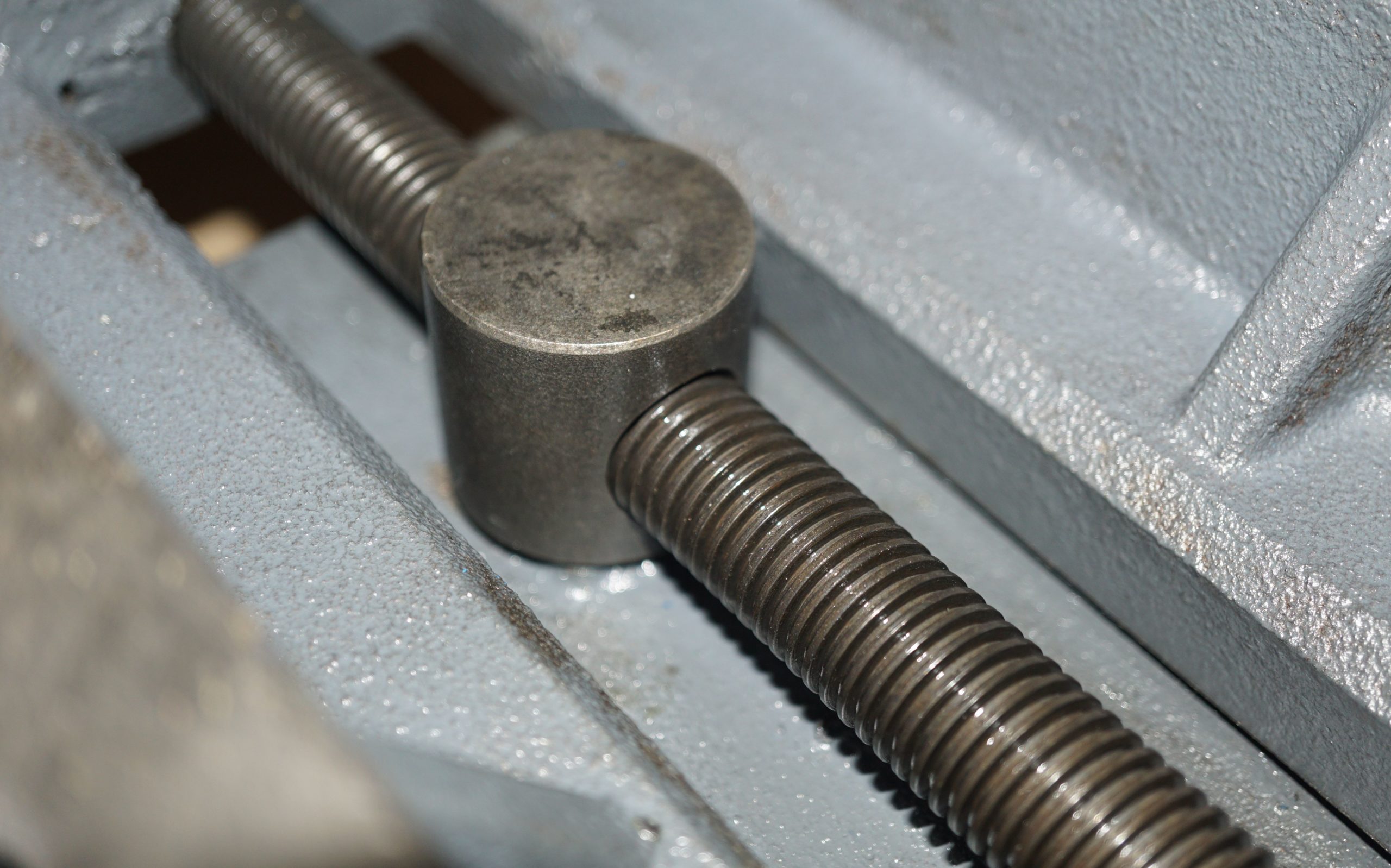

• There are bearings equipped with the guide screw for providing accurate and smooth operation
• Accuracy 0.06~0.08mm/200mm
• Parallelism 0.06~0.08mm/200mm
• Backlash 0.06mm

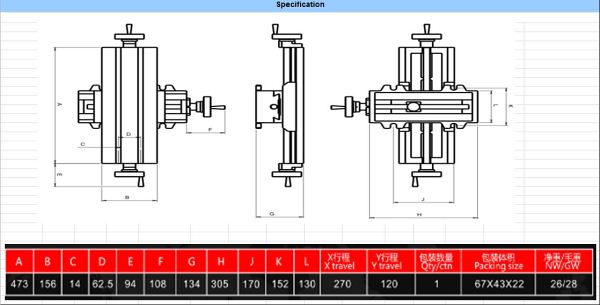

18 1/2″ x 6″ (Table size)
Base size 10 1/2″ x 8″ with 4 clamping slots
Total Height of Table is 5″ (from base to table)
Graduated Dials in Imperial
Tee-slot size 16mm at the top- 25 mm at the bottom
300mm/12″ of travel
2 Tee-slots across the bed
X Travel 270 mm
Y Travel – 120 mm
