Soba 4 5/16 ” / 115mm HV4 Rotary Table Set and Chuck
NEW – COMPLETE ROTARY TABLE SET – INCLUDES ROTARY TABLE , TAILSTOCK , DIVIDING PLATES SET & CLAMPING KIT PLUS A 4 JAW SELF CENTERING CHUCK !
CLICK THE IMAGE ON THE LEFT FOR A LARGER PICTURE

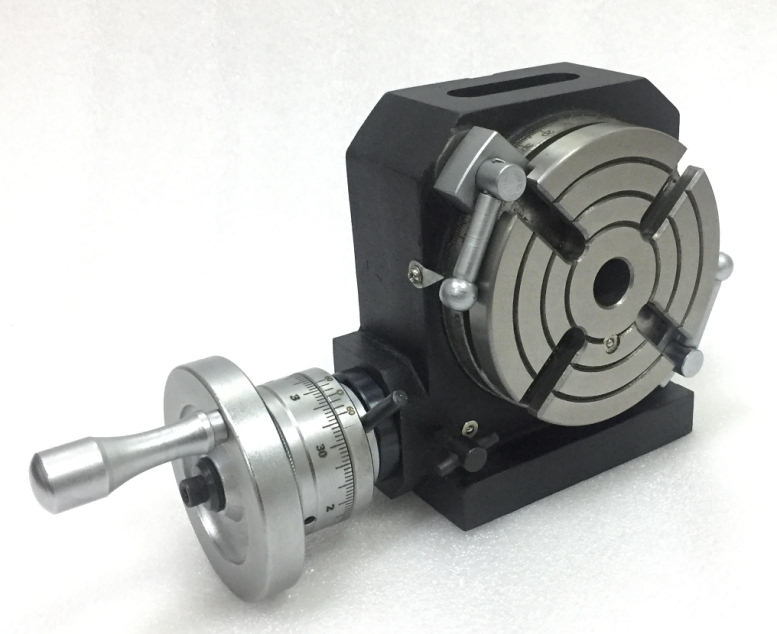

These tables have a totally ground finish which provides high precision and smooth rotation – everything you would expect from Shobha. The centre of the table is fitted to an inner conical Morse tapered sleeve MT2.
The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.. Table diameter – 110 mm – Table height – 80 mm – Centre height – 80mm – Centre sleeve – 2MT.3 T slots
Centre height from 80 to 110mm
Base size 130 x 95mm
A substantially made tailstock with centre height adjustable over the range 80 to 110mm, . The base size is 130 x 95mm and there are 15mm wide slots at the two ends for securing it to the machine table
This excellent dividing attachment can easily be fitted to the HV6 rotary table and includes three plates as follows.
A Plate – 15,16,17,18,19,20
B Plate – 21,23,27,29,31,33
C Plate – 37,39,41,43,47,49
Also included are all necessary screws,washers & handle etc. to fit.
This set is suitable for both the Vertex and Soba 6″ Rotary tables. The set comprises 4 x Tnuts with matching 3″ studs and nuts. 2 x 2″ stepped clamps and 2 x 1 3/4 slotted step clamps!
Exclusive to Chronos !
A Soba 80 mm Diameter 4 Jaw Self Centering Chuck on a mounting plate
