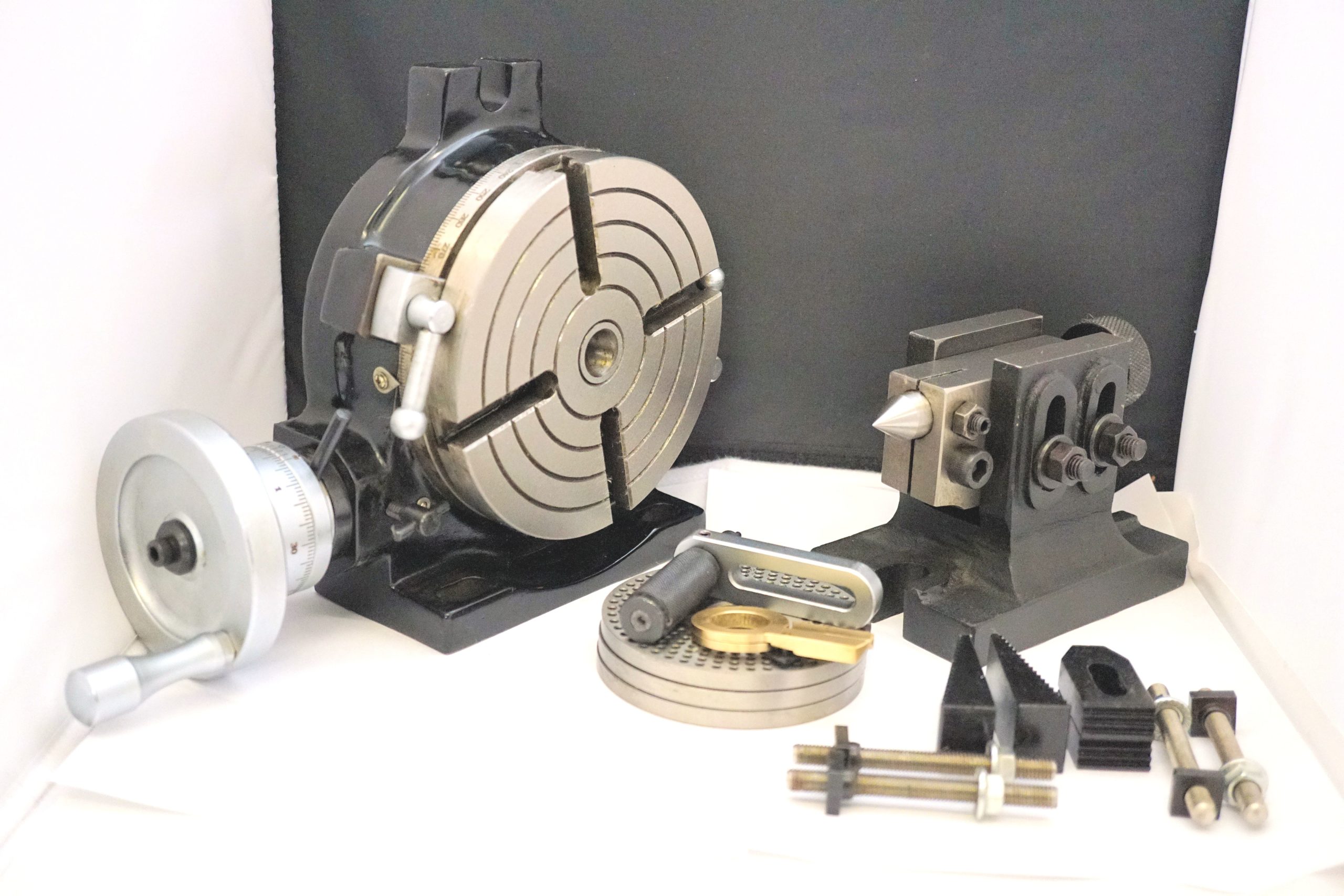

SOBA 6″ ROTARY TABLE SET C/W PLATES , TAILSTOCK & 4 JAW S/C CHUCK

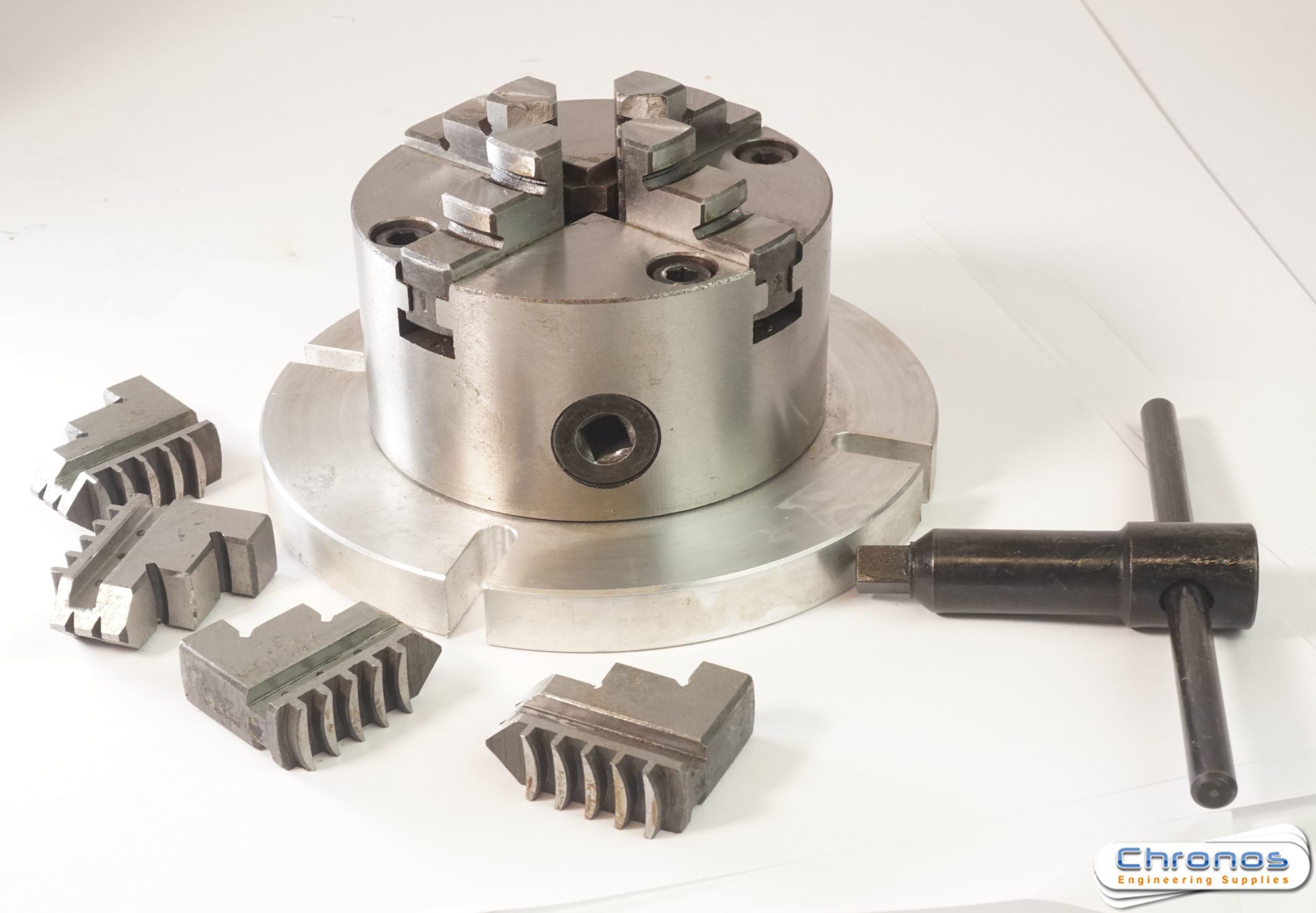

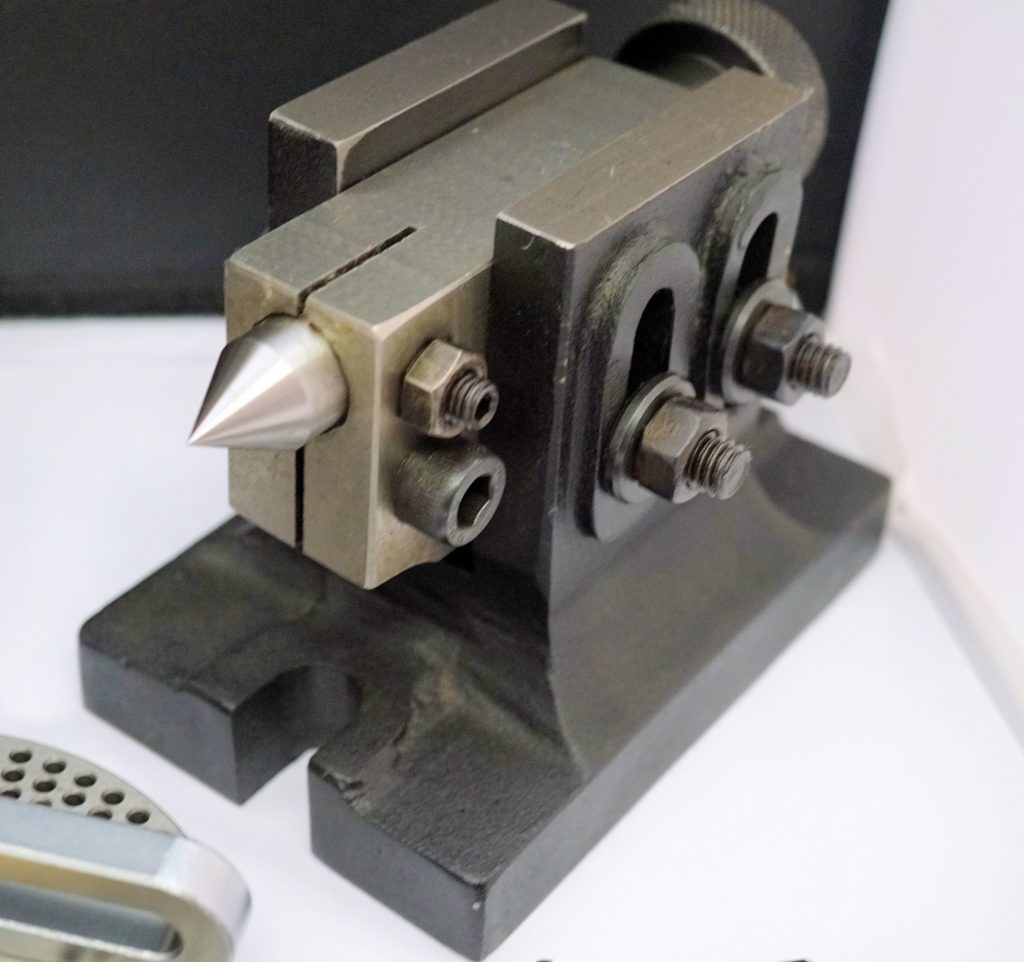

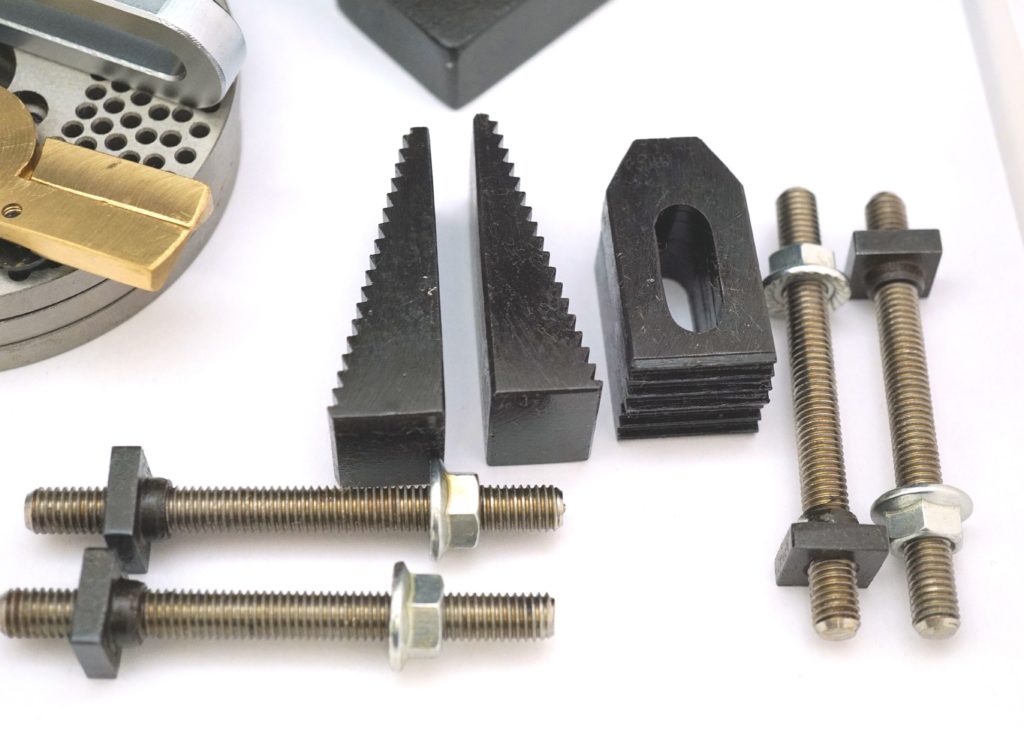

FANTASTIC OFFER- PRICE INCLUDES THE ROTARY TABLE , SET OF 3 DIV PLATES TAILSTOCK, AND A CLAMPING KIT- PLUS A 100 MM 4 JAW SELF CENTERING CHUCK

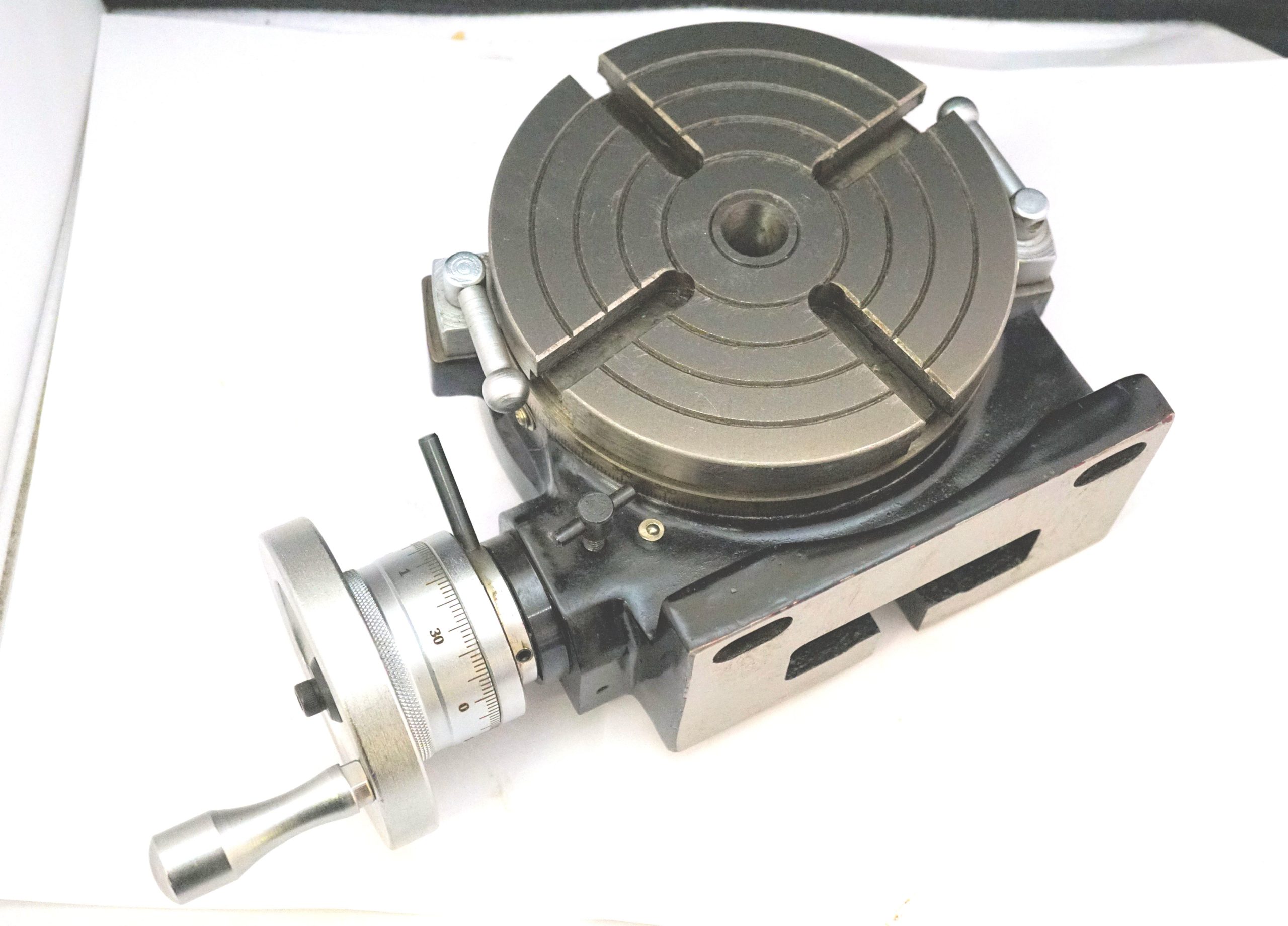

They have a totally ground finish which provides high precision and smooth rotation – The centre of the table is fitted to an inner conical Morse tapered MT2 sleeve.

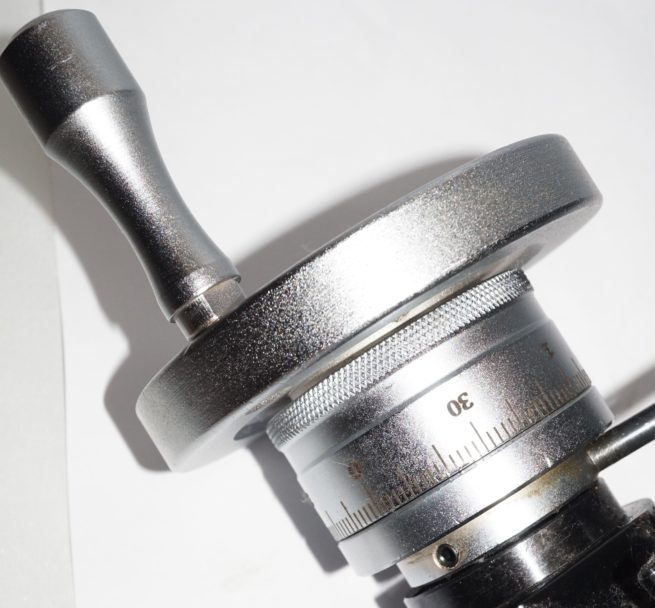

The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing. . Table diameter – 150 mm – Table height – 80 mm – Centre height – 105mm – Centre sleeve – 2MT.4 T slots. OUR TABLE IS SUPPLIED WITH AN 8 PAGE FULL MANUAL – NOT AVAILABLE FROM OTHER SUPPLIERS!
CLICK THE IMAGE ON THE LEFT FOR A LARGER PICTURE
