100mm Tilting Rotary Table

PRECISION TILTING ROTARY TABLE – NEW

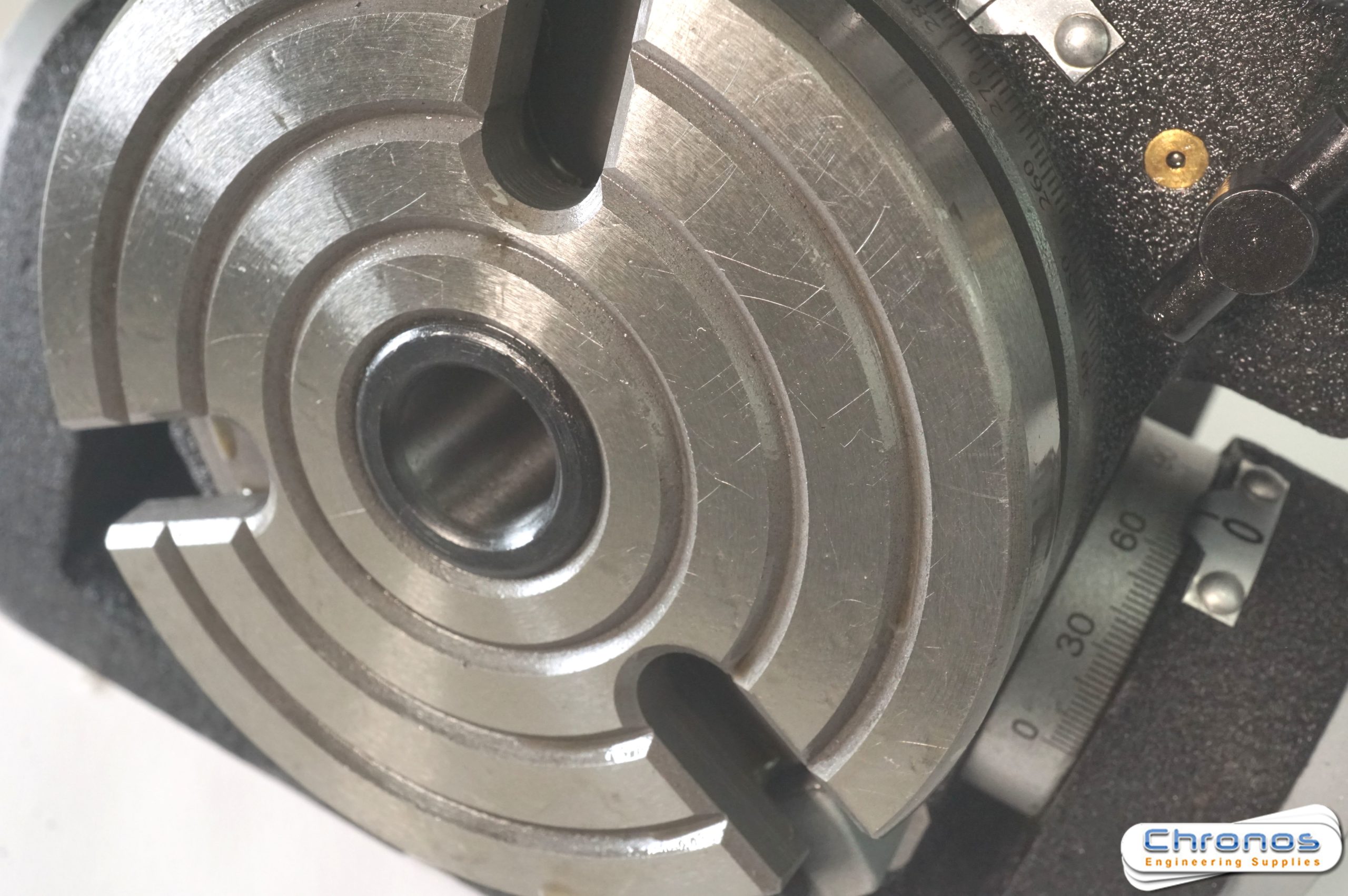

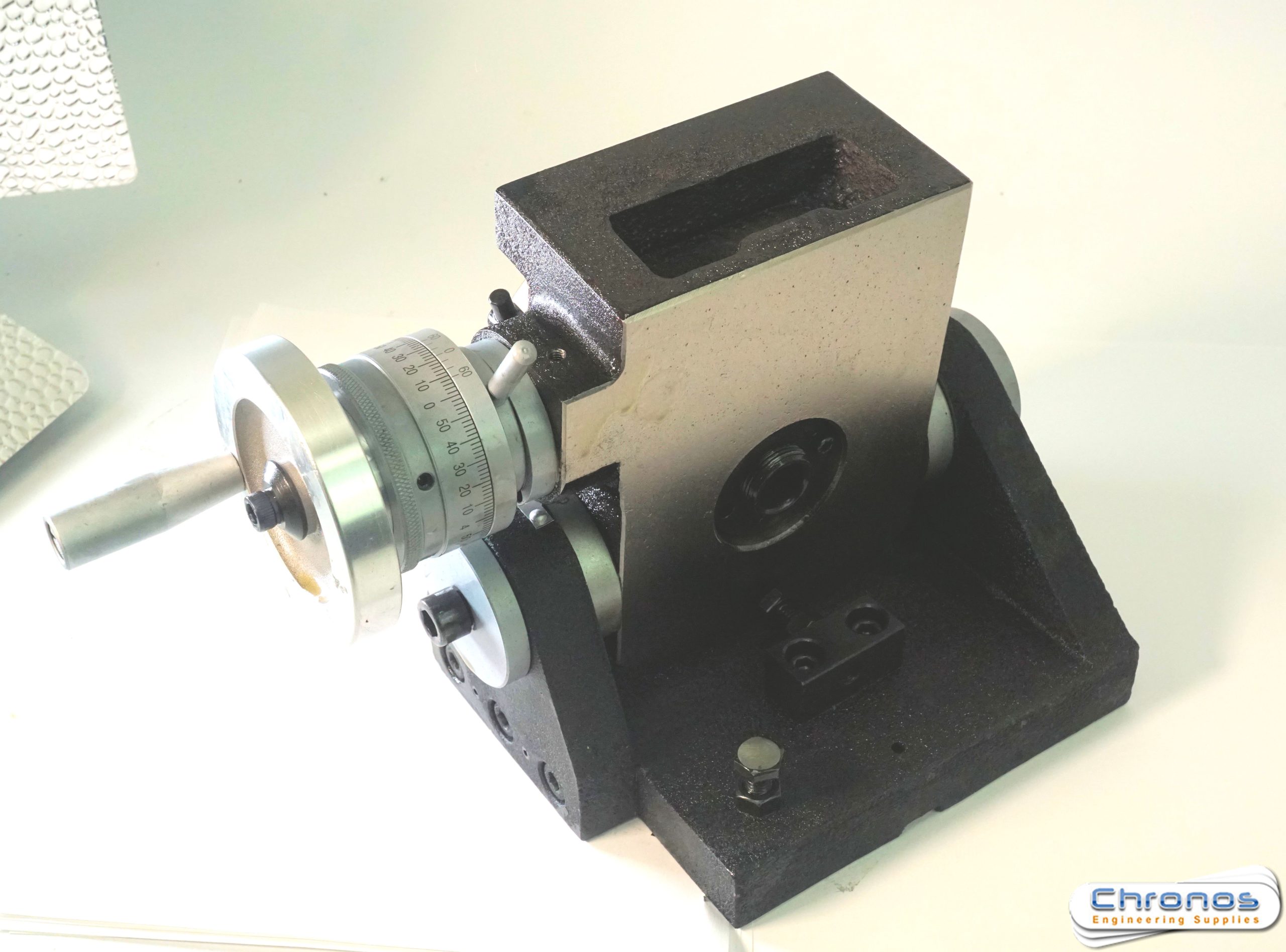

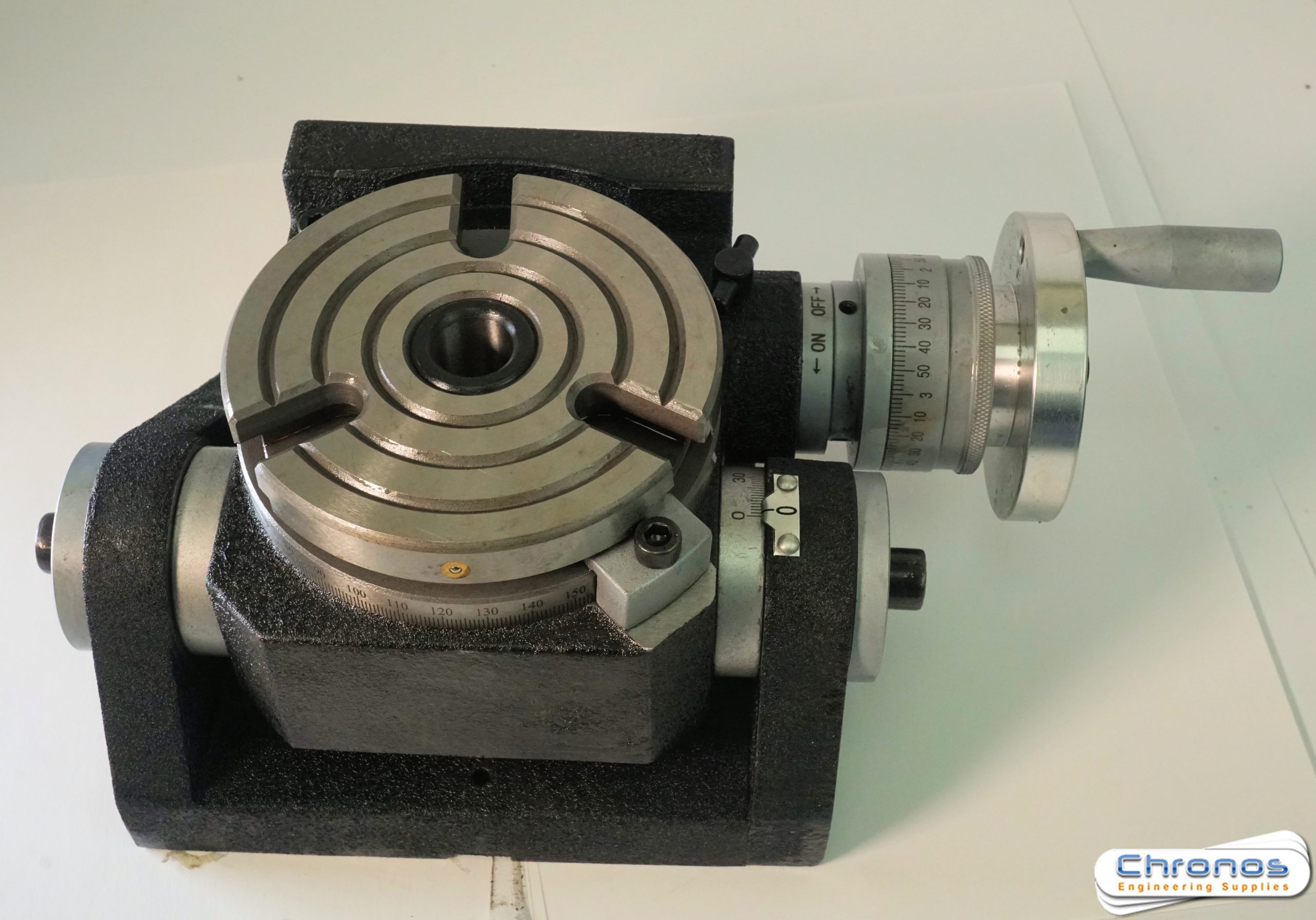

The TSK series tilting rotary table can be tilted and locked from 0 – 90 degrees any angle. Ideal for machining oblique surface and holes.
Graduated 360 degree around its circumference and driven by precision gear with 1:90 reduction ratio. One turn by handle moves table 4 degrees.
DUAL POSITIVE ACTION LOCKS

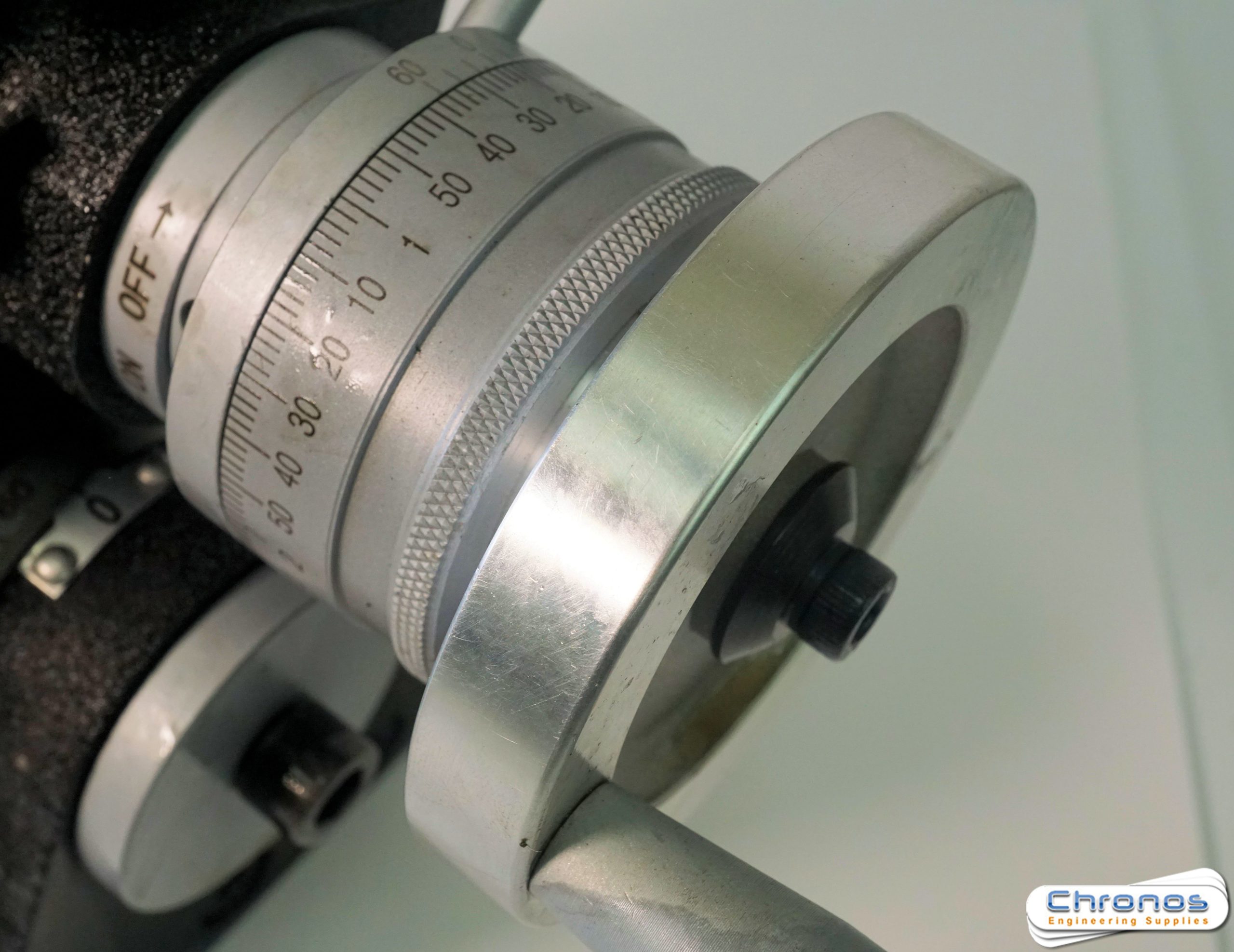

SATIN CHROME DIALS
LOW PROFILE
10 SECONDS VERNIER READING

TABLE DIA: 4″
CENTER BORE: 2MT

TSK100-Dimensional Drawing
