New ! SCT Rotary Table / Cross Slide Combination 6″ / 150 mm

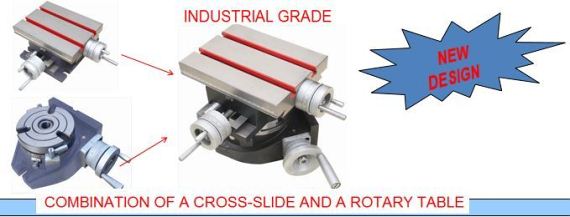

NEW ! A COMBINATION OF A CROSS SLIDE AND A ROTARY TABLE
Cross Slide Rotary Table
Rotary table size: 150mm

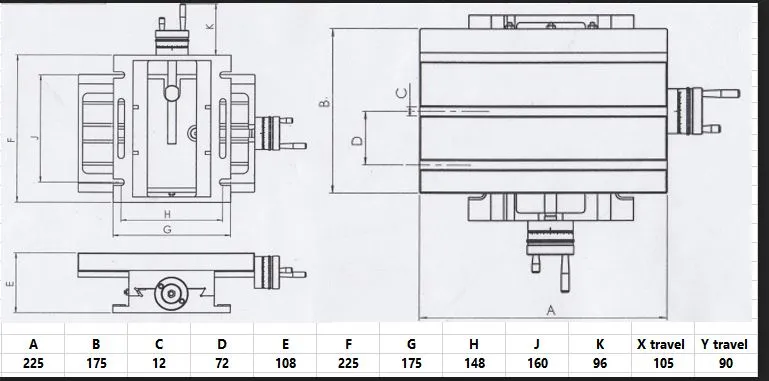

Cross-slide table size:225*175mm
This model is a combination of a cross-slide and rotary table built into one rugged unit, affording precision X,Y and rotary positioning .
A hardened and ground center locating hole which affords quick set-up as well as machine spindle location relative to the rotary table. / Precision hardened and ground cross feed screws are mounted in tapered roller bearings. Backlash is controlled by adjustable feed screw nuts. / Tapered gibs on cross slides. / Working surface, slides and dovetails are precision ground. / Quick-Set satin chrome cross slide dials are graduated in .001 in. and can be permanently locked if necessary. / Cross-Slide scales are graduated in .100 in increments with adjustable pointers. Rotary Table is graduated in one degree increments. Satin Chrome Dial graduated in one minute increments. / Non-influencing locks hold table rigid. / Quick method of disengaging worm from wormwheel. / Precision ball thrust bearings on wormshaft.
