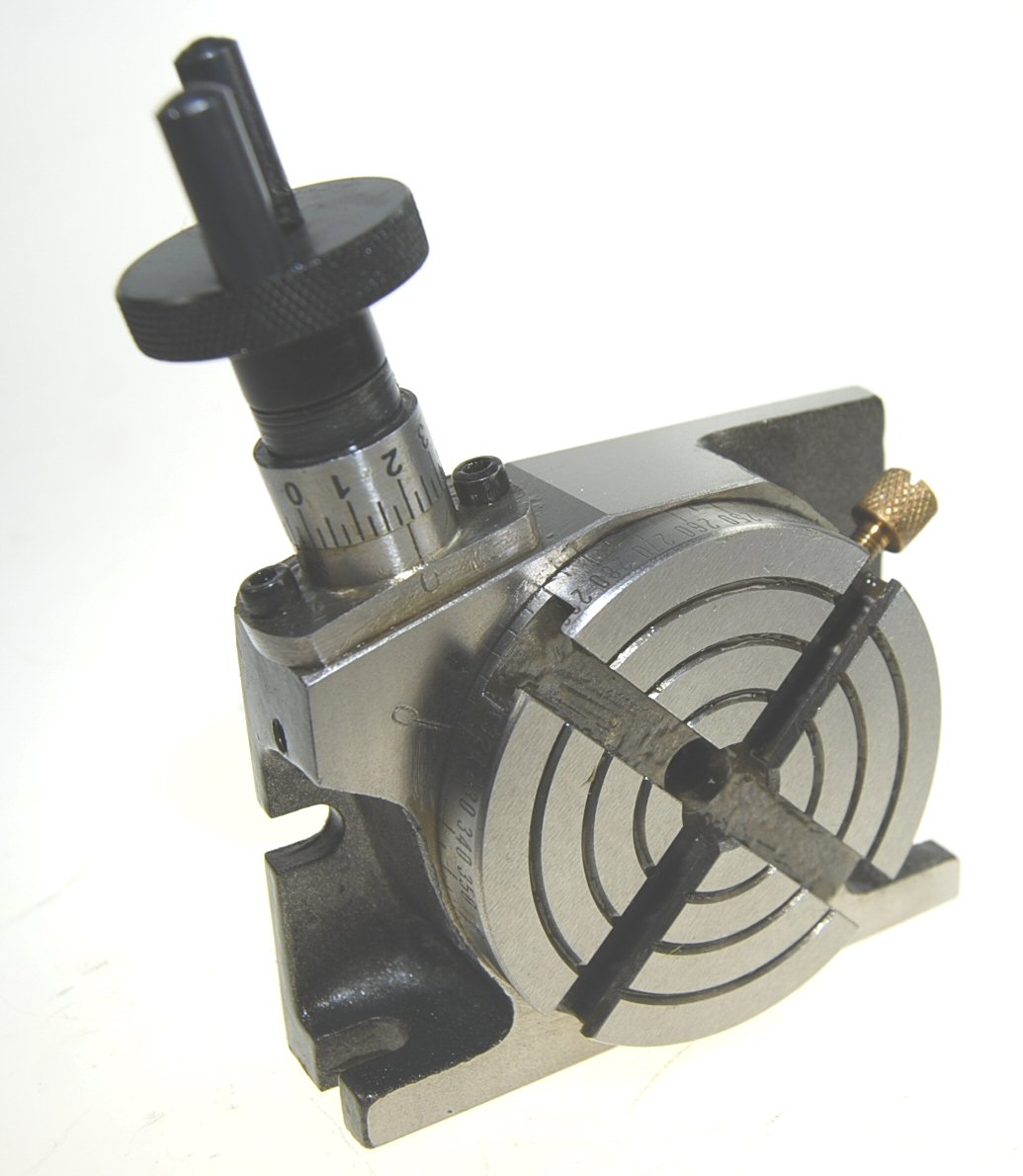

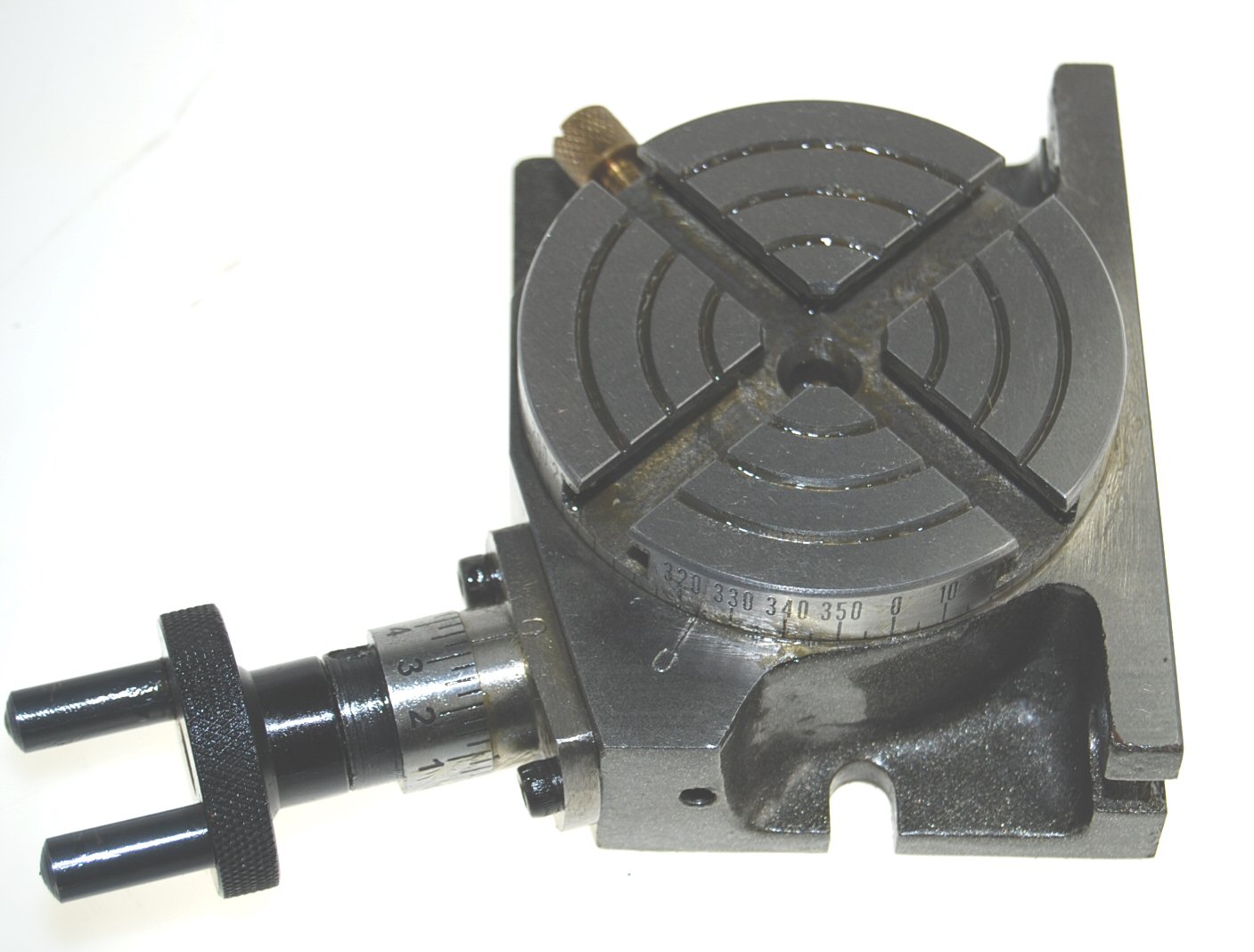

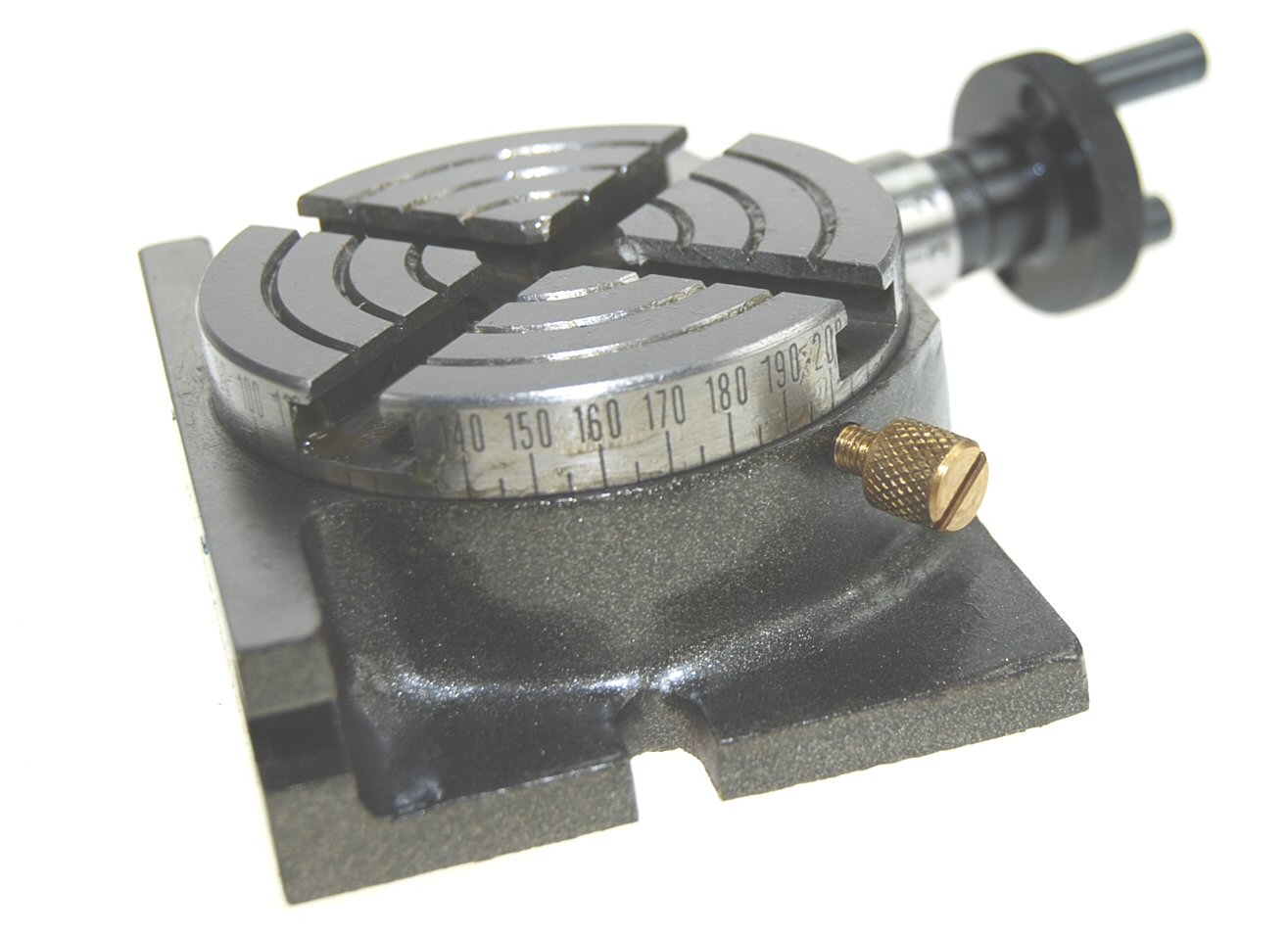

Soba 3″ Rotary Table with Clamping Kit- sorry out of stock

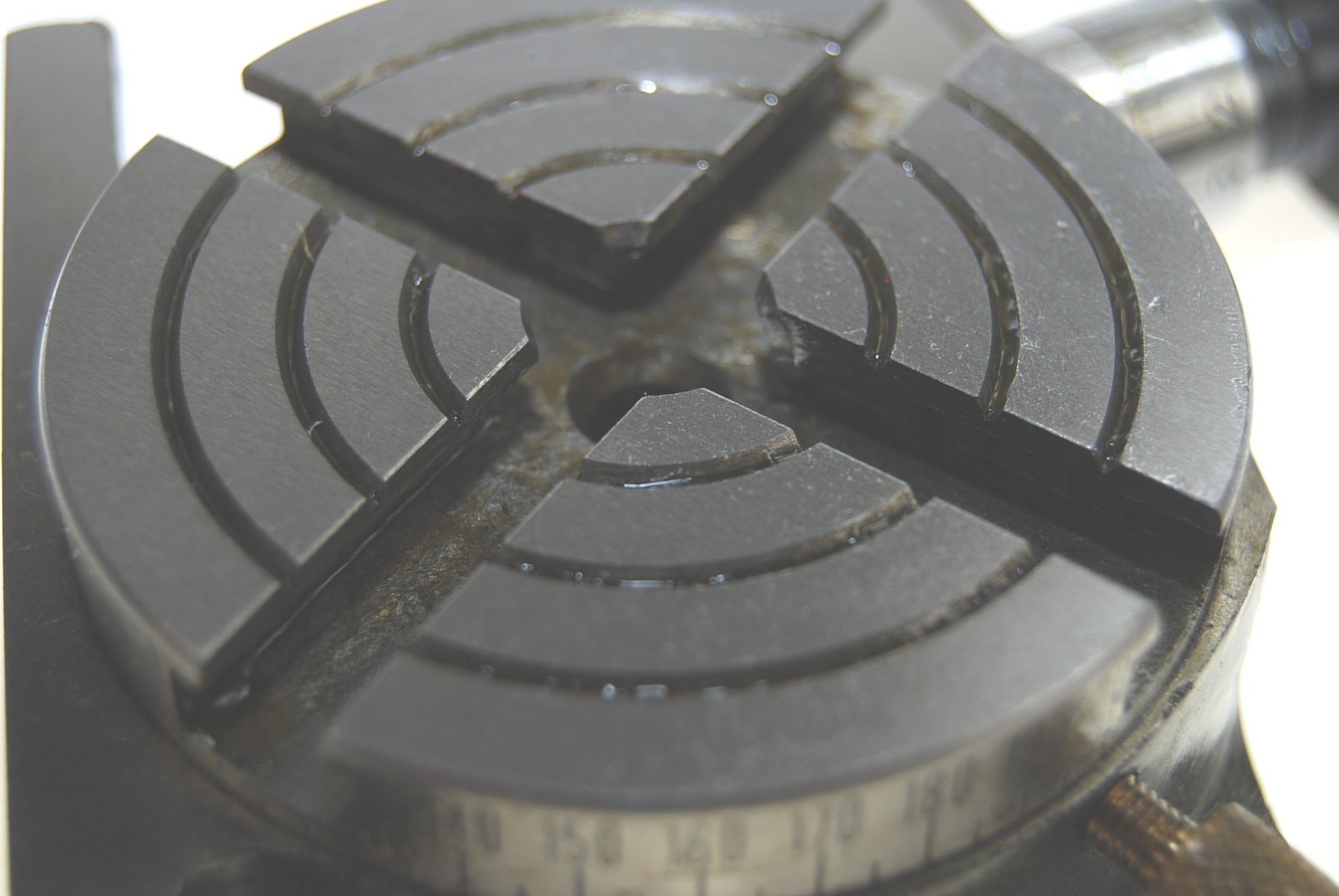

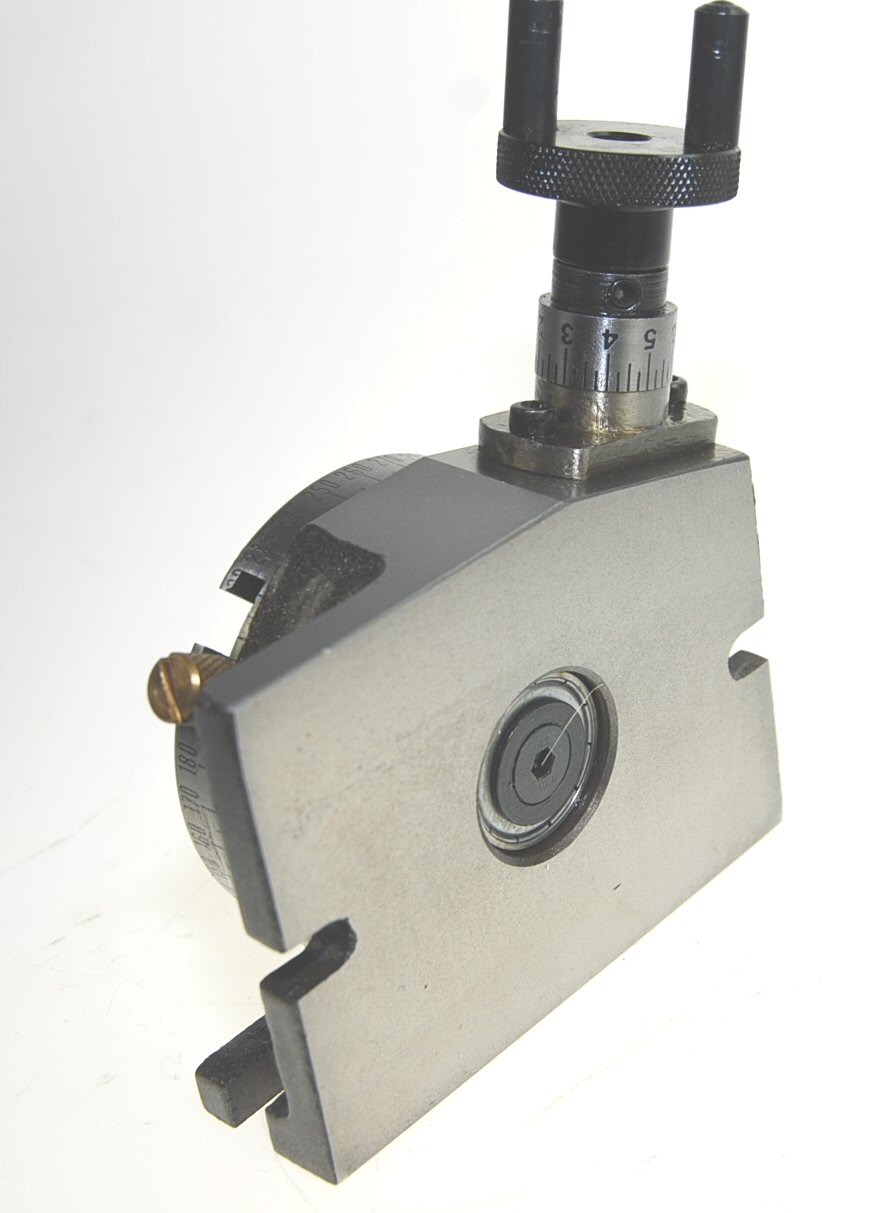

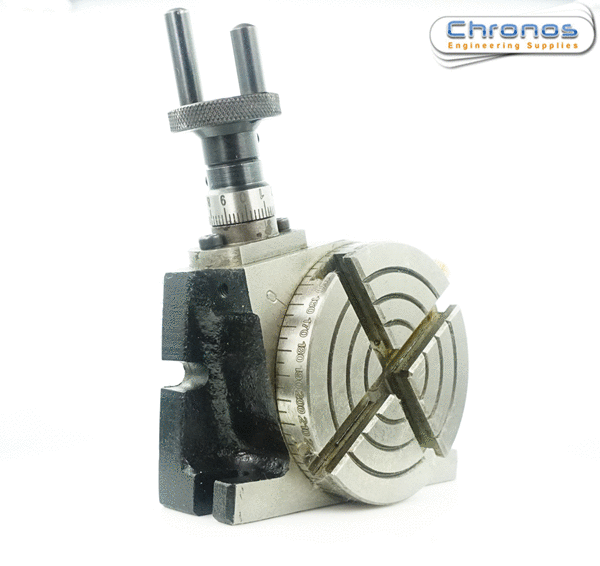

Overall height of table is 1 1/2″ – a useful feature if it is to be used with smaller milling attachments. The table can be locked in any position. Centre height in vertical position 1 1/2 in bringing the table within the range of most model engineering lathes & mills. The hand wheel scale which can be zeroed, is marked in degrees and 10 min divisions. The table is calibrated in 5 deg increments around the rim. Bronze worm wheel and steel worm with 36 to 1 ratio. Gear meshing is adjustable to take up wear. EXCLUSIVE TO CHRONOS

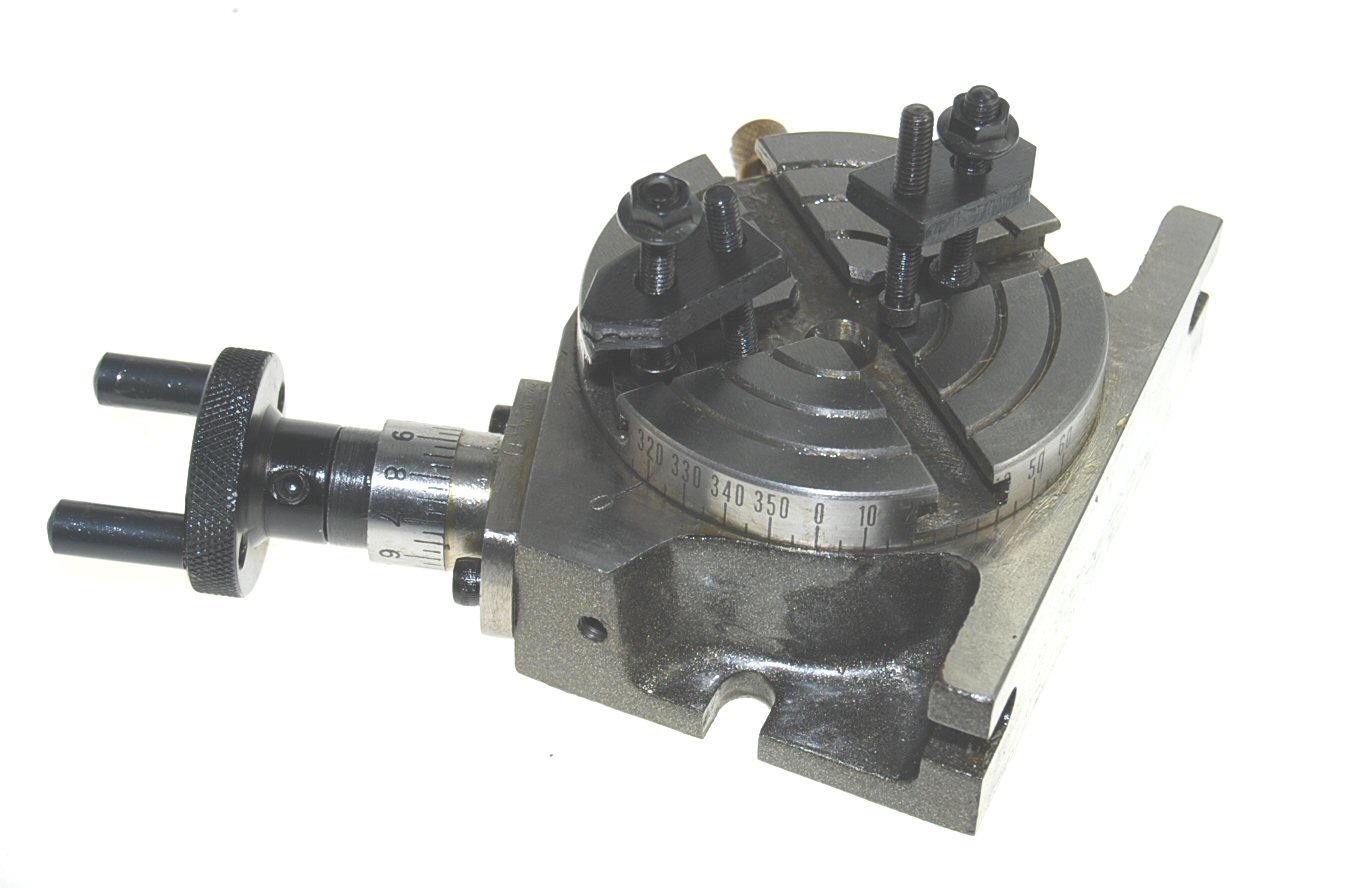

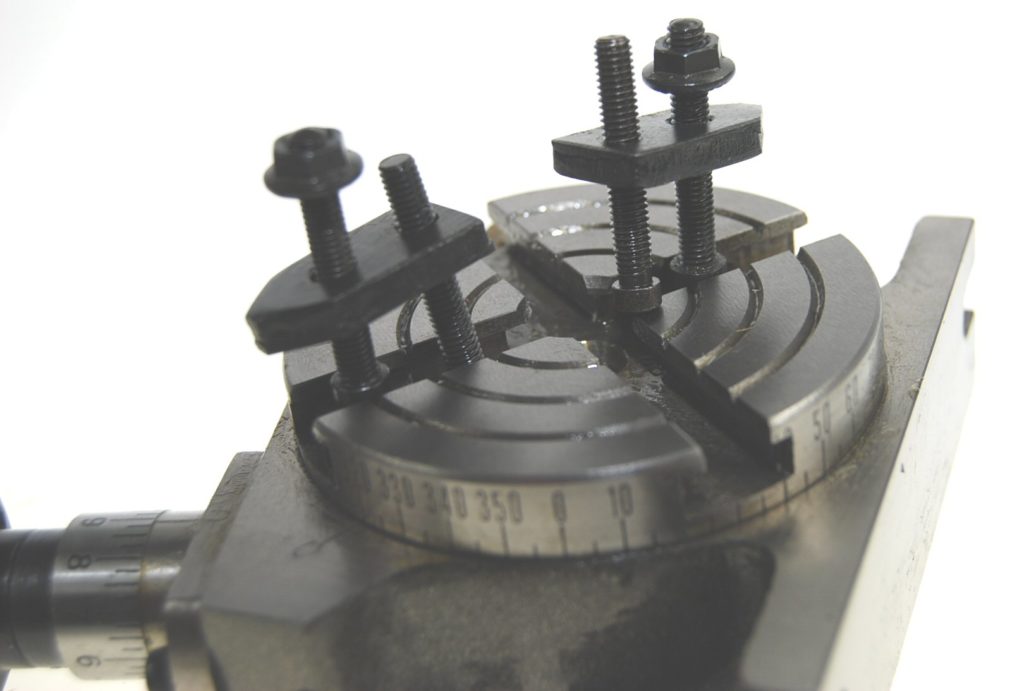

Clamping Kit also included
Out of stock
Linked Chronos Engineering Products...

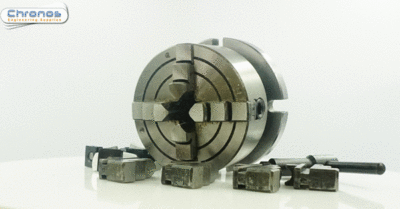

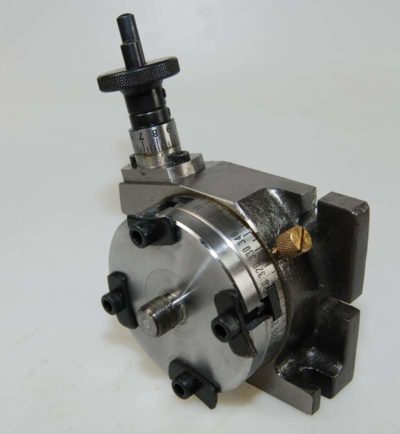

70 MM 4 Jaw Independent Chuck on Backplate for 3 & 4″ Rotary Tables£45.36. Add to basket Soba and Other Brand Rotary Tables and accessories
