ALSGS Power Feed Attachment For Milling Machines X Axis 240 V
NEW ! 240 V POWER FEED – STANDARD 3 PIN PLUG – NO TRANSFORMER REQUIRED

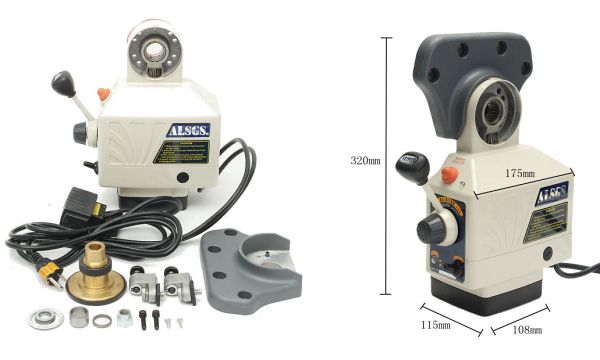

CLICK THE IMAGE ON THE LEFT FOR A LARGER PICTURE
These power table feeders are easily fitted to many of today’s popular milling machines especiall y Bridgeports etc .
Both left and right directional feed are possible and the units incorporate an overload cut out and reset control. The limit switches are fully adjustable to control the feed travel. .
Model R.P.M Max.R.P.M Max. Torque Voltage
SCT-AL510SX 0-200 200 650 in/lb 240v
Functions with low noise, large torque, & high speed, Easy convenient installation
and flexible operation,.
This power feed is designed to
install on the right side of a knee mill table to provide powered longitudinal movement of the table.
A. Limit Switch: Stops powered table movement
when either limit stop presses a plunger
on the switch.
B. Limit Stop: Activates the limit switch. Secure
these devices along the table to set the range
C. Rapid Movement Button: Moves the table
at the maximum speed in the direction selected.
D. Direction Lever: Starts, reverses, and stops
longitudinal table movement.
E. Speed Dial: Controls the speed that the table
moves—turn the dial clockwise to increase
F. Reset Button: When a current over 3.5
amps passes through the unit for more than
10 seconds, the internal circuit switch will cut
the power to the unit. I nvestigate and resolve
any problems, then use this button to reset
the internal circuit switch.
G. ON/OFF Switch: The master power switch
for the power feed.
H. Power Lamp: Lights when the power feed is
PRICE INCLUDES DELIVERY TO UK MAINLAND
