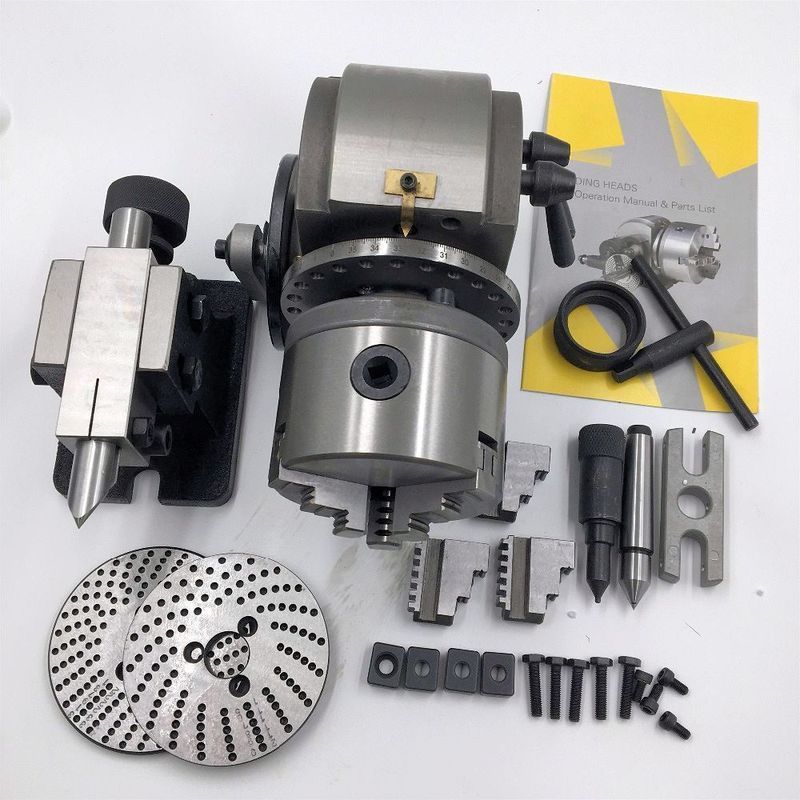

NEW ! BSO DIVIDING HEAD COMPLETE WITH
DIVIDING PLATES , TAILSTOCK & 5″ 3 JAW CHUCK
This semi-universal dividing head, is for dividing workpieces into equal partitions on your milling machine etc. By using dividing scale ring, vernier, locating pin, index plate and change gear, workpieces placed can be divided into equal partitions according to your requirements . It can be used for direct and indirect dividing. Able to complete gear, face and flute processing without need of accessories, however its whole construction is the same with the universal type. The 24 quick-dividing holes can complete 2, 3, 4, 6, 8, 12, 24 division indexing. 3 dividing plates are attached along with the dividing head for indirect dividing in any division indexing 2-50, 51-380 except prime numbers and certain other numbers.
Headstock Centre is 2 MT

BS0-DIVIDING HEAD MANUAL
