Multi Function Digital Readout Box 2 Axis- SORRY OUT OF STOCK

£115.34.

NEW ! DESIGNED FOR USE WITH OUR NEW RANGE OF GLASS OPTICAL SCALES

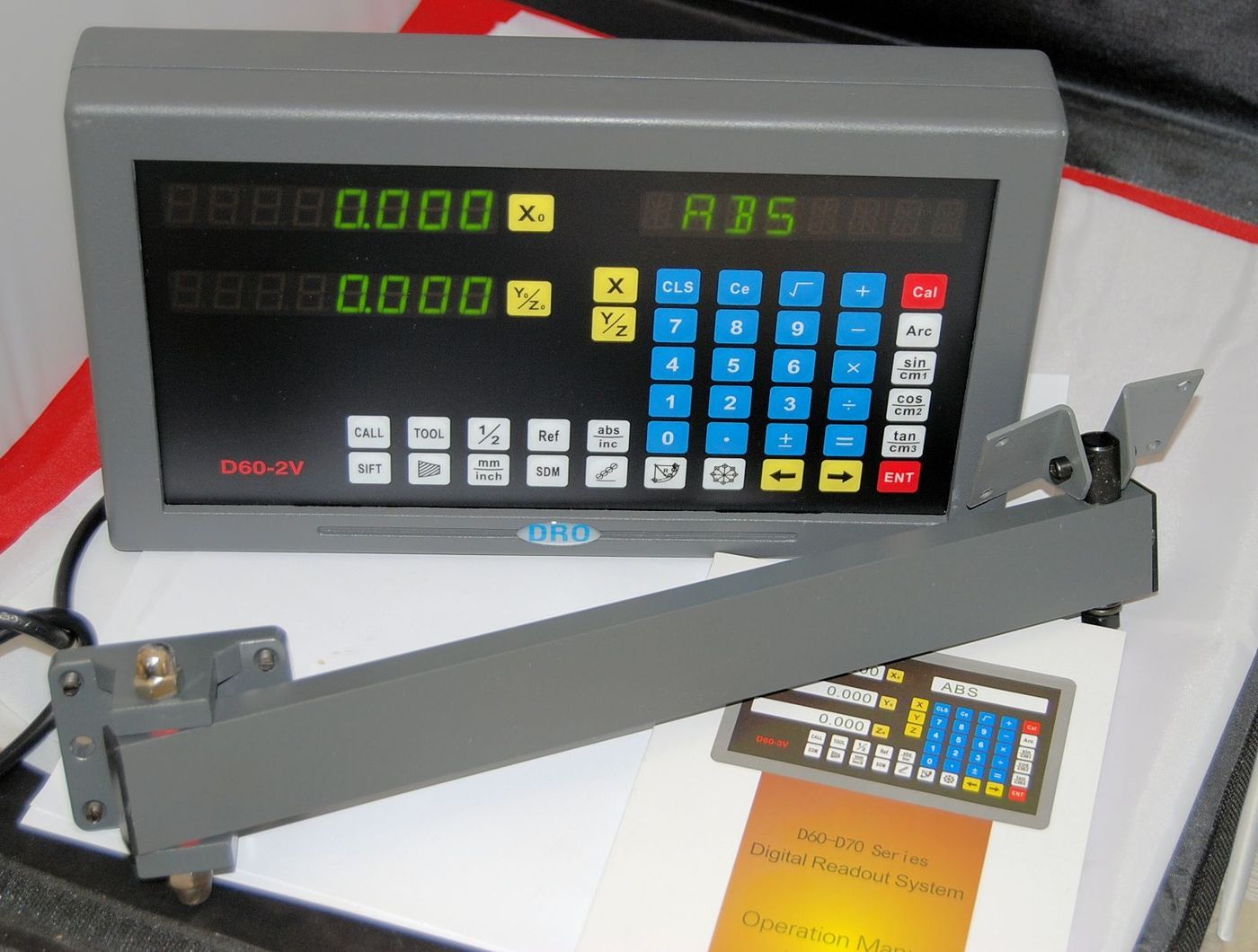

CLICK THE IMAGE ON THE LEFT FOR A BIGGER PICTURE
Two Axis Model – (milling/boring/lathe/grinding machine) X & Y Axis
Completely sealed from dust , coolant & swarf
Includes 107 page manual , Pivoting Mounting Bracket and Standard Three Pin UK Plug

Basic functions:
1) Zeroing Data Recovery
2) Power-down memory
3) linear compensation;
4) Input Coordinate
5) display Inch / metric.
6) Encoder selection
7) Resolution setting
8) Counting Direction Selection
9) ABS/INC Coordinate
10) 200 sets SDM Coordinate
11) Ref Ruler Storage Function
12) Calculator
13) non-linear compensation
14) Sleeping Function
15) 1/2 Function

• Power dissipation: 15W
• Working temperature – 10 – 60 C
• Storage temperature -30 – 70 C
• Coordinate Display 1 AXIS , 2 AXIS
• Display: 8 bit display with signed
• Input frequency: <5MHZ • Minimum resolution of angles:0.0001/pulse
• Operating keyboard: light touch buttons
• CE CERTIFICATE, ROHS REPORT, IP REPORT
• Linear scale grating space:0.04mm,0.02mm,0.01mm,power supply is +5V. The diifference between two and four TTL putput signal is 90°





User Manual

Out of stock

Chronos Product Code:  40135905 Category:
