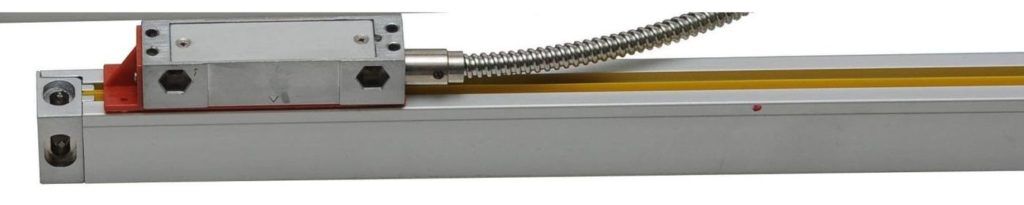

Linear Optical DRO Glass Readout Scale DC10 500 mm

£85.00

1 X 500 MM OPTICAL DRO READOUT SCALE

In General
500 mm MEASURING LENGTH
These new Digital readout systems are a great addition to your lathe or milling machine . They are very accurate and can be used in conjunction with our new 2 & 3 Axis readout displays

Complete with all mounting accessories for you to adapt to your particular machine and a comprhensive installation manual .

They scales are completely swarf and water proof
Specification
Linear glass optical.
Completely swarf and coolant proof.
Compact 18mm scale section, ideal for smaller lathes and mills.
Compact design so as to be unobtrusive when fitted
Working temperature: 10°C – 60°C.
Professional quality and includes all mouting accessories and cables
Easy to use and very accurate
Various sizes available
Compatible with a wide range of different lathes and milling machines.
Voltage – DC5V (DC10-K DC5V-36V
Output Signal TTL EIA-422-A
Biggest Working Speed – 20m/min (1UM) 60m/min(5UM)
Working Temperature 10°C – 60°C
Storage Temperature 30°C – 70°C
Grating System – The transmissive and infrared optical measuring system.the infrared Wave length is 800nm.
9.Reading head sliding system Vertical or 45‹five precision bearing system
10.Measuring LengthF50mm-3000mm
BELOW – WITH OPTIONAL READOUT BOX

DIFFERENT LENGTHS AVAILABLE

INSTALLATION HARDWARE


THIS LISTING IS FOR 1 X SINGLE SCALE UNIT 500 MM

DRO INSTALLATION MANUAL

Price includes delivery to the UK mainland (excl Scottish Highlands). You can add this product to the shopping basket and pay with a credit/debit card, or with PayPal.

Chronos Product Code:  40135130 Category:
