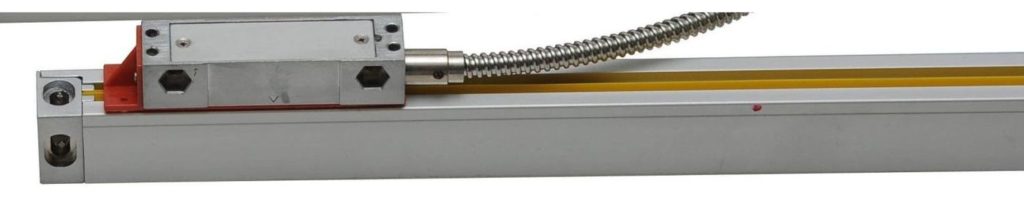

Linear Optical DRO Glass Readout Scale DC10 700mm
1 X 700 MM OPTICAL DRO READOUT SCALE
700 mm MEASURING LENGTH
These new Digital readout systems are a great addition to your lathe or milling machine . They are very accurate and can be used in conjunction with our new 2 & 3 Axis readout displays
Complete with all mounting accessories for you to adapt to your particular machine and a comprhensive installation manual .
They scales are completely swarf and water proof
Linear glass optical.
Completely swarf and coolant proof.
Compact 18mm scale section, ideal for smaller lathes and mills.
Compact design so as to be unobtrusive when fitted
Working temperature: 10°C – 60°C.
Professional quality and includes all mouting accessories and cables
Easy to use and very accurate
Various sizes available
Compatible with a wide range of different lathes and milling machines.
Voltage – DC5V (DC10-K DC5V-36V
Output Signal TTL EIA-422-A
Biggest Working Speed – 20m/min (1UM) 60m/min(5UM)
Working Temperature 10°C – 60°C
Storage Temperature 30°C – 70°C
Grating System – The transmissive and infrared optical measuring system.the infrared Wave length is 800nm.
9.Reading head sliding system Vertical or 45‹five precision bearing system
BELOW – WITH OPTIONAL READOUT BOX
DIFFERENT LENGTHS AVAILABLE
THIS LISTING IS FOR 1 X SINGLE SCALE UNIT 700 MM
