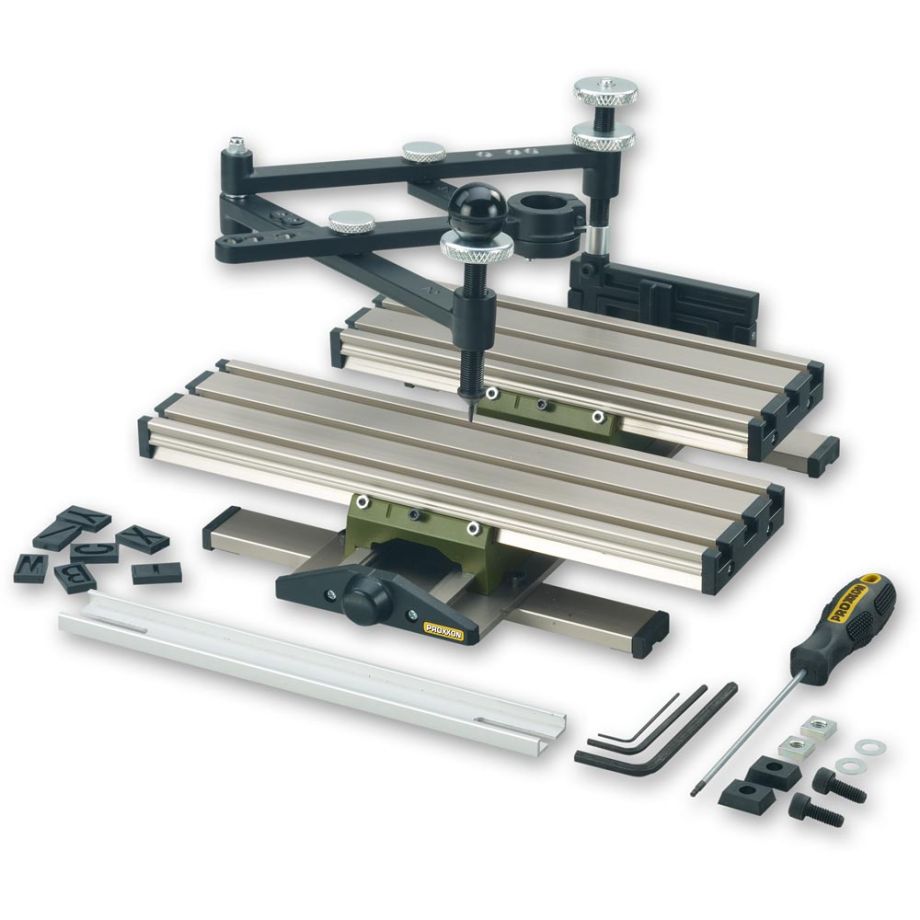

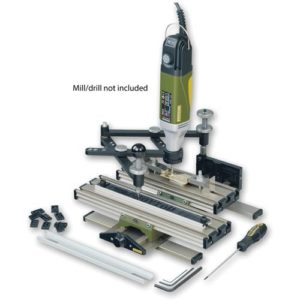

The Proxxon GE20 is a small engraving pantograph, suitable for nameplates, jewellery and other valuable objects. It can also be used with self-made stencils or commercially made templates (e.g. plants, animals or coats of arms). A maximum of 14 characters can be fastened in the guide bar or template holder. Template contours can be precisely followed by using the ball handled guide marker. During transfer, the lettering to be milled is scaled down to either a ratio of 2:1, 3:1, 4:1 or 5:1 by simply adjusting two screws. The workpiece is aligned and fixed on the movable guide block by means of clamping jaws (not supplied) or a vice. Supplied with two sets of letters from A to Z, hyphen, full stop and dash (a total of 52 pieces), three Allen keys: 1.5, 3.0 and 5.0mm as well as a 2.5mm HEX (ball head) screwdriver. A detailed instruction manual is also included.
Key Features
Used for engraving nameplates, jewellery and other objects
Four reduction ratios
Maximum of 14 characters
Template letters and tools included
Detailed instruction manual supplied
