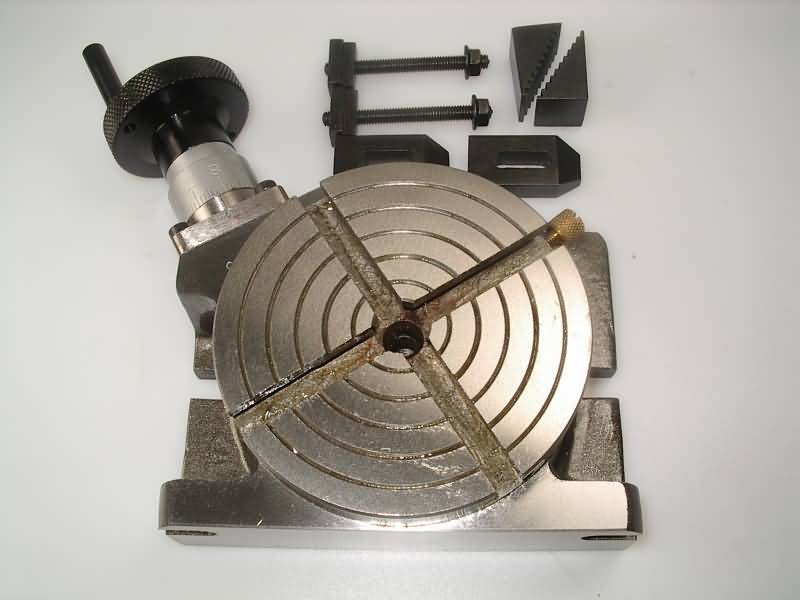

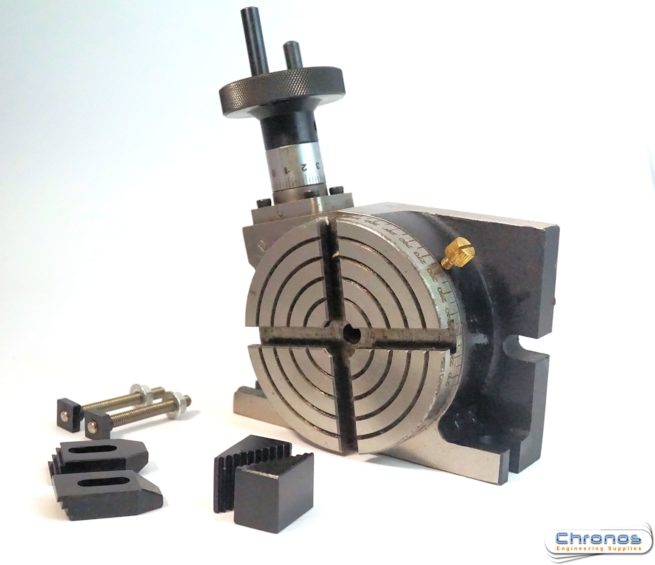

4 inch / 100 MM Rotary Table Complete With Clamping Kit
4 inch / 100 MM Rotary Table Complete With Clamping Kit (SKU: 110240)
Overall height of table under 2″ – a useful feature if it is to be used with smaller milling attachments.
The table can be locked in any position. Centre height in vertical position 2 1/16 in bringing the table within the range of most model engineering lathes & mills.

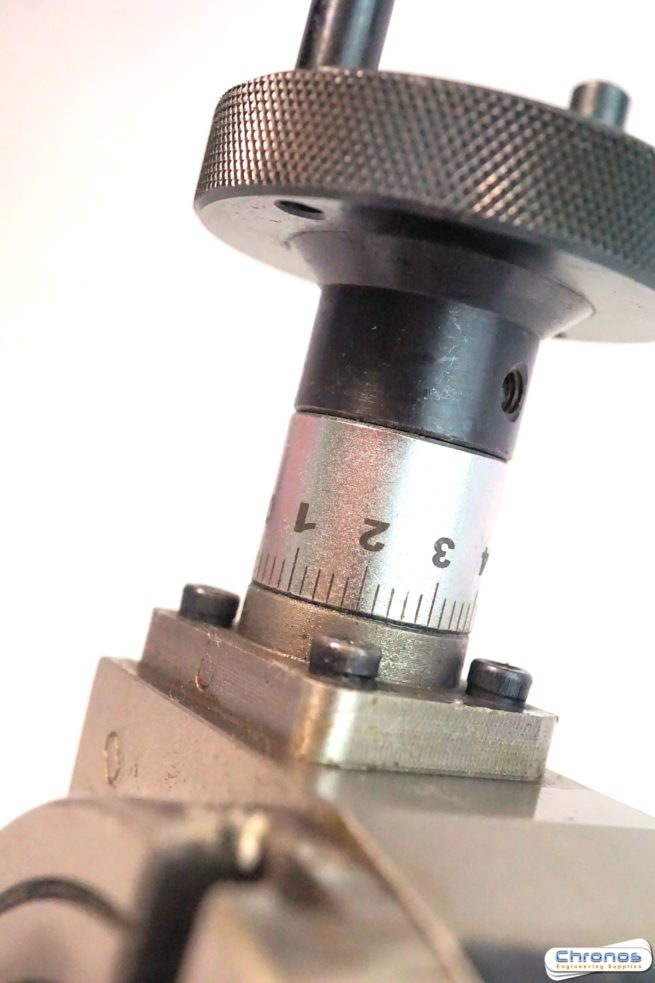

The hand wheel scale which can be zeroed, is marked in degrees and 10 min divisions. The table is calibrated in 5 deg increments around the rim. Bronze worm wheel and steel worm with 36 to 1 ratio.
Gear meshing is adjustable to take up wear
A set of suitable T nuts, studs and clamps is now included !
2 x Slotted Clamps 40mm x 20 mm
2 x 6mm Studs 50 mm long with nuts
2 x step clamps 25 x 15 mm
£62.40.
Overall height of table under 2″ – a useful feature if it is to be used with smaller milling attachments.
The table can be locked in any position. Centre height in vertical position 2 1/16 in bringing the table within the range of most model engineering lathes & mills.
The hand wheel scale which can be zeroed, is marked in degrees and 10 min divisions. The table is calibrated in 5 deg increments around the rim. Bronze worm wheel and steel worm with 36 to 1 ratio.
Gear meshing is adjustable to take up wear
A set of suitable T nuts, studs and clamps is now included !
2 x Slotted Clamps 40mm x 20 mm
2 x 6mm Studs 50 mm long with nuts
2 x step clamps 25 x 15 mm
