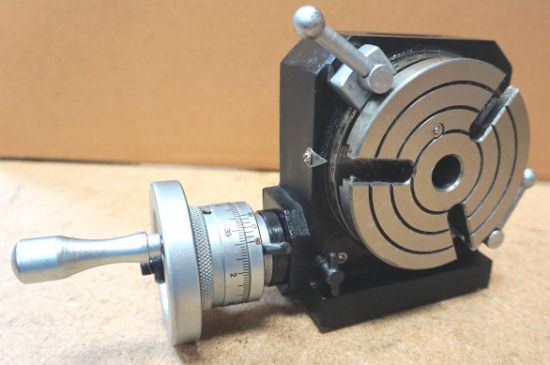

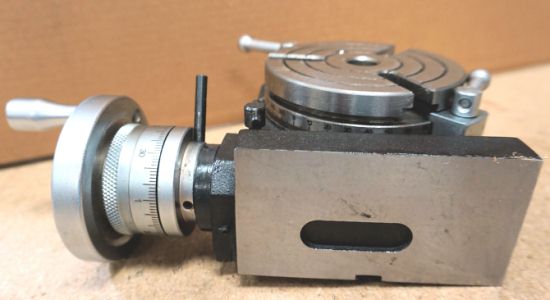

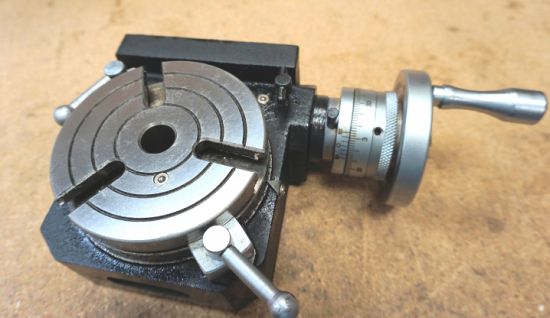

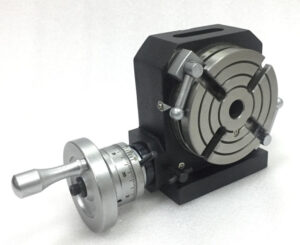

Soba 4″ Rotary Table HV4 Type

£78.57 (£94.28 incl VAT)

These tables have a totally ground finish which provides high precision and smooth rotation The centre of the table is fitted to an inner conical Morse tapered sleeve MT2.
The worm gear ratio is 90:1 i.e. one revolution of the hand wheel = 4′ of rotation of the table and the vernier scale is calibrated to 10 sec.
The hardened and ground worm gear incorporate a quick release system for manual indexing.. Table diameter – 110 mm – Table height – 80 mm – Centre height – 80mm – Centre sleeve – 2MT.3 T slots
CLICK THE IMAGE ON THE LEFT FOR A LARGER PICTURE


PRICE INCLUDES DELIVERY TO UK MAINLAND

Chronos Code: SHHV4 Category:

Soba 4″ Rotary Table HV4 Type from Chronos Engineering Supplies

Please like our Facebook page and share this product with friends. If you have any questions about this product, use our live chat facility. Just leave a message if we are offline stating “Soba 4″ Rotary Table HV4 Type”. Please remember to leave your email address so we can reply.

Additional Information

Weight 6 kg
