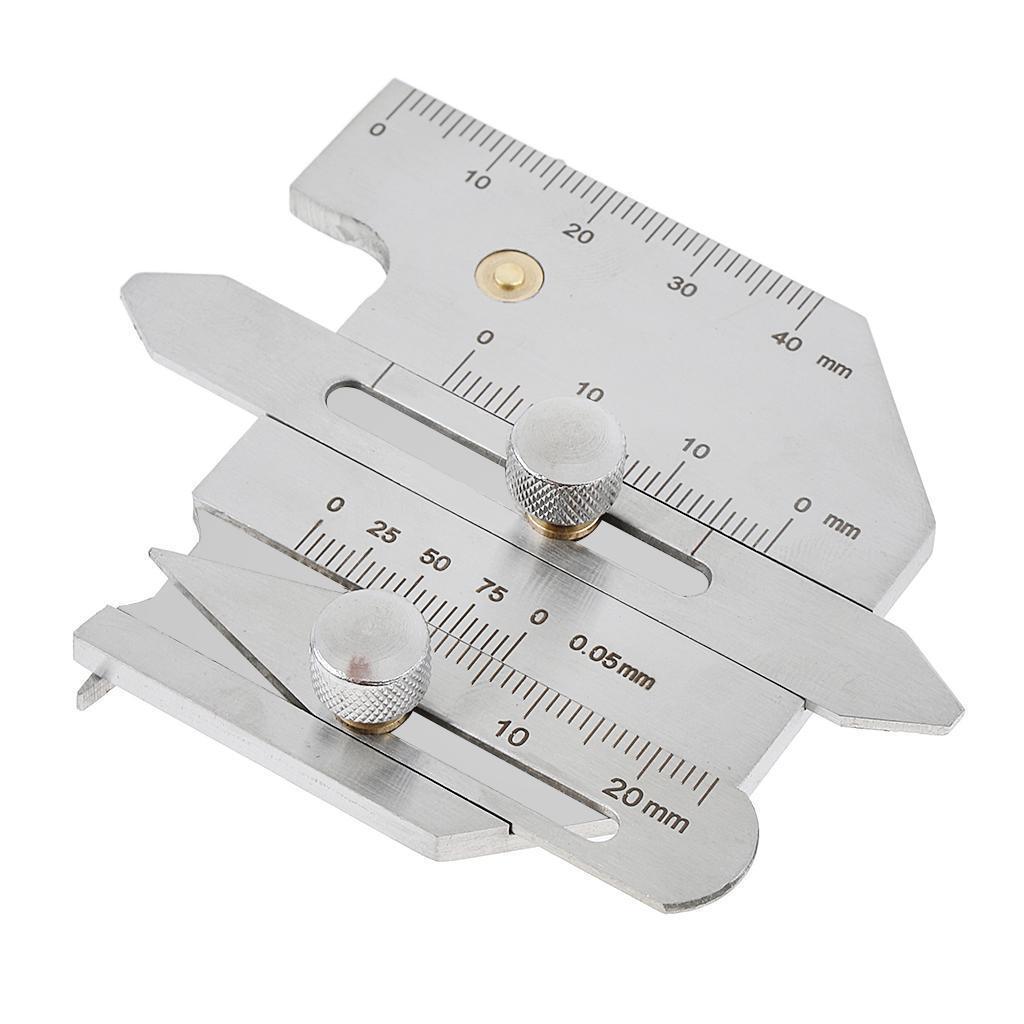

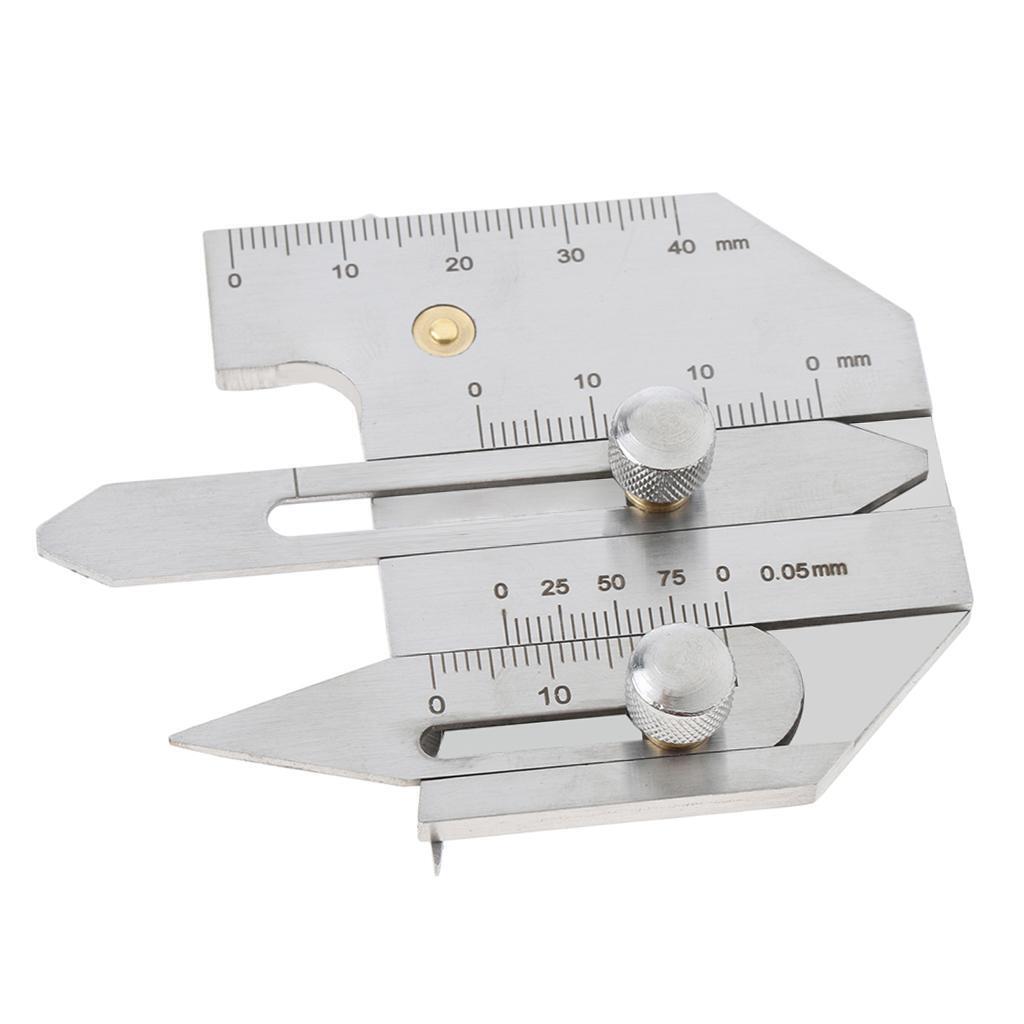

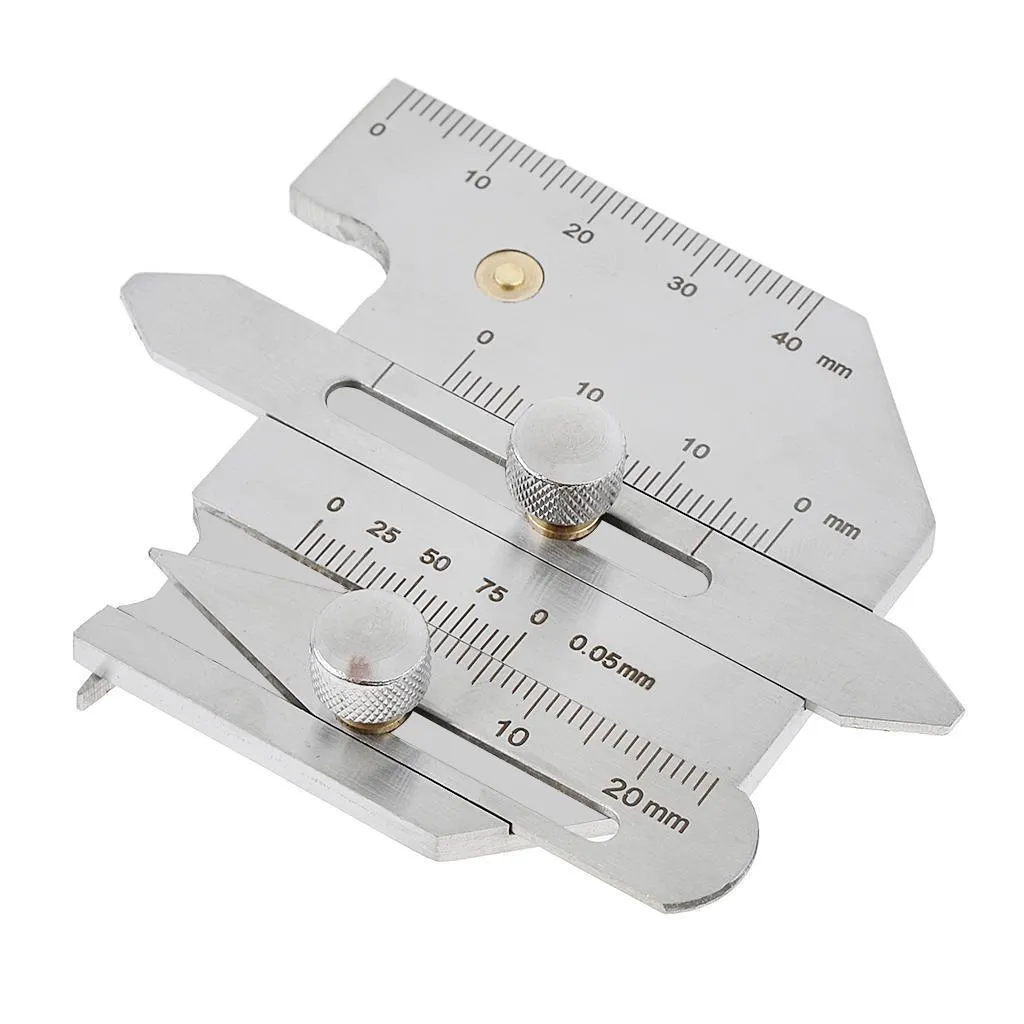

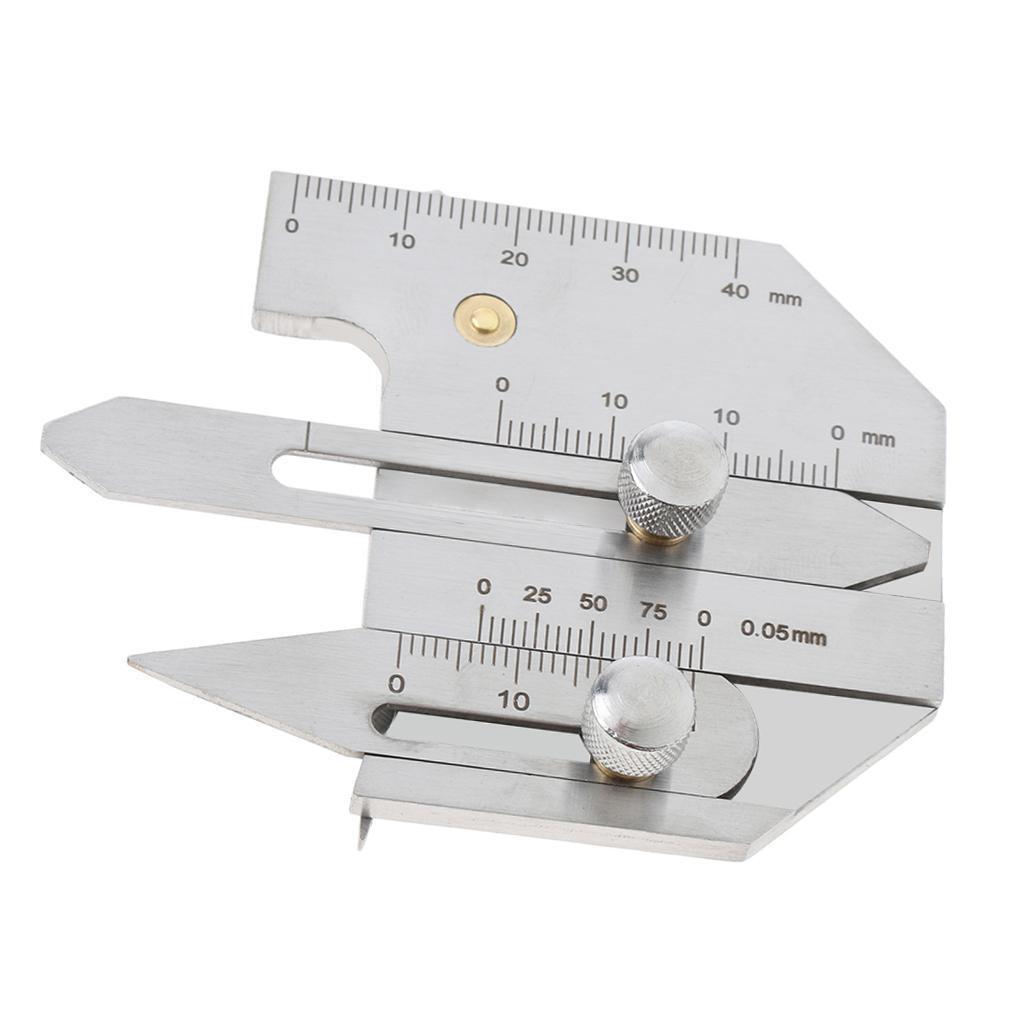

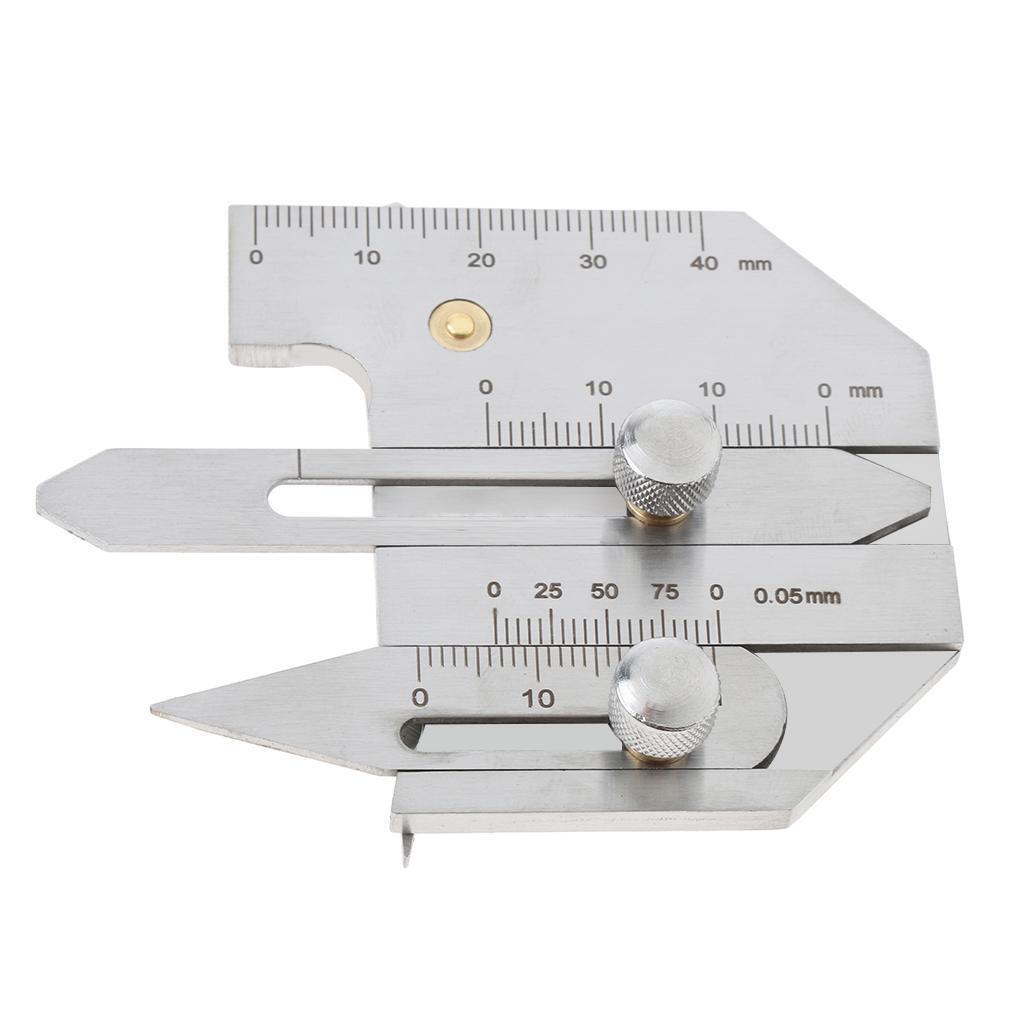

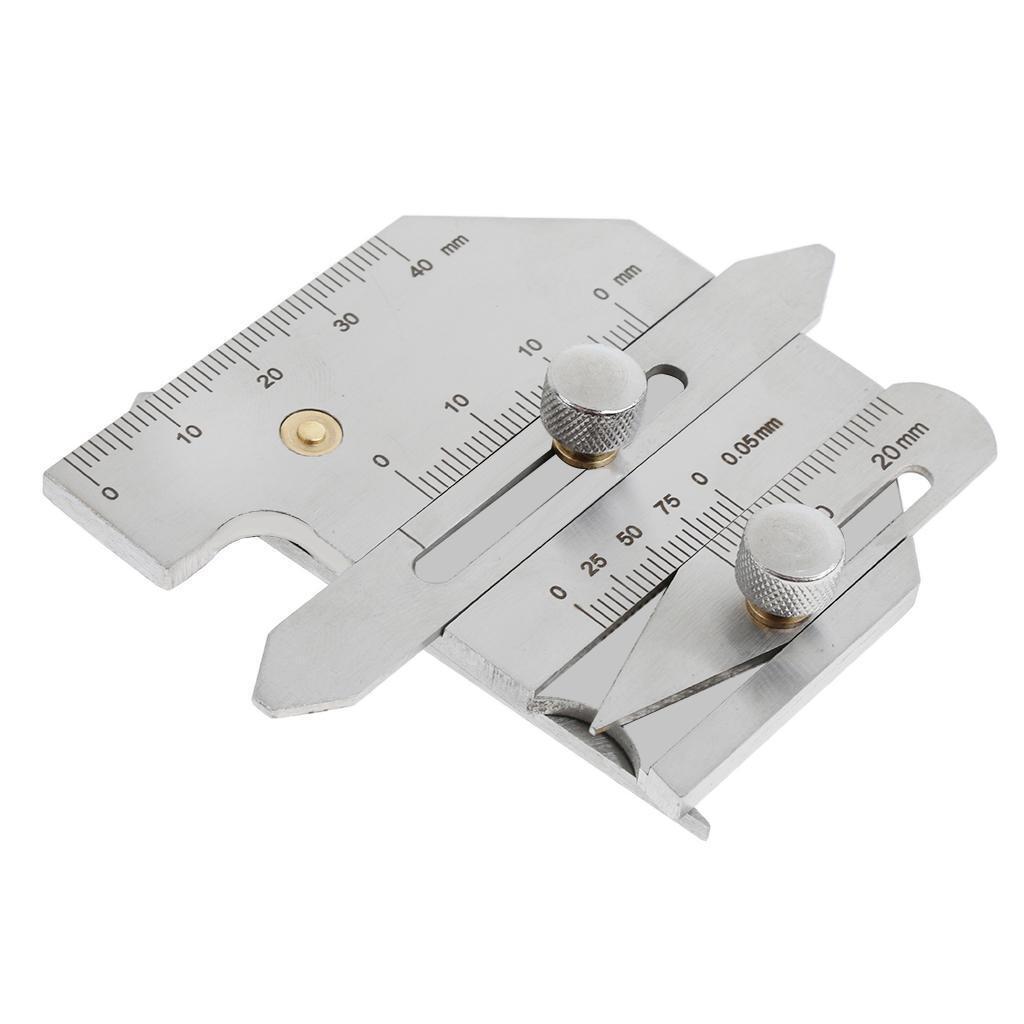

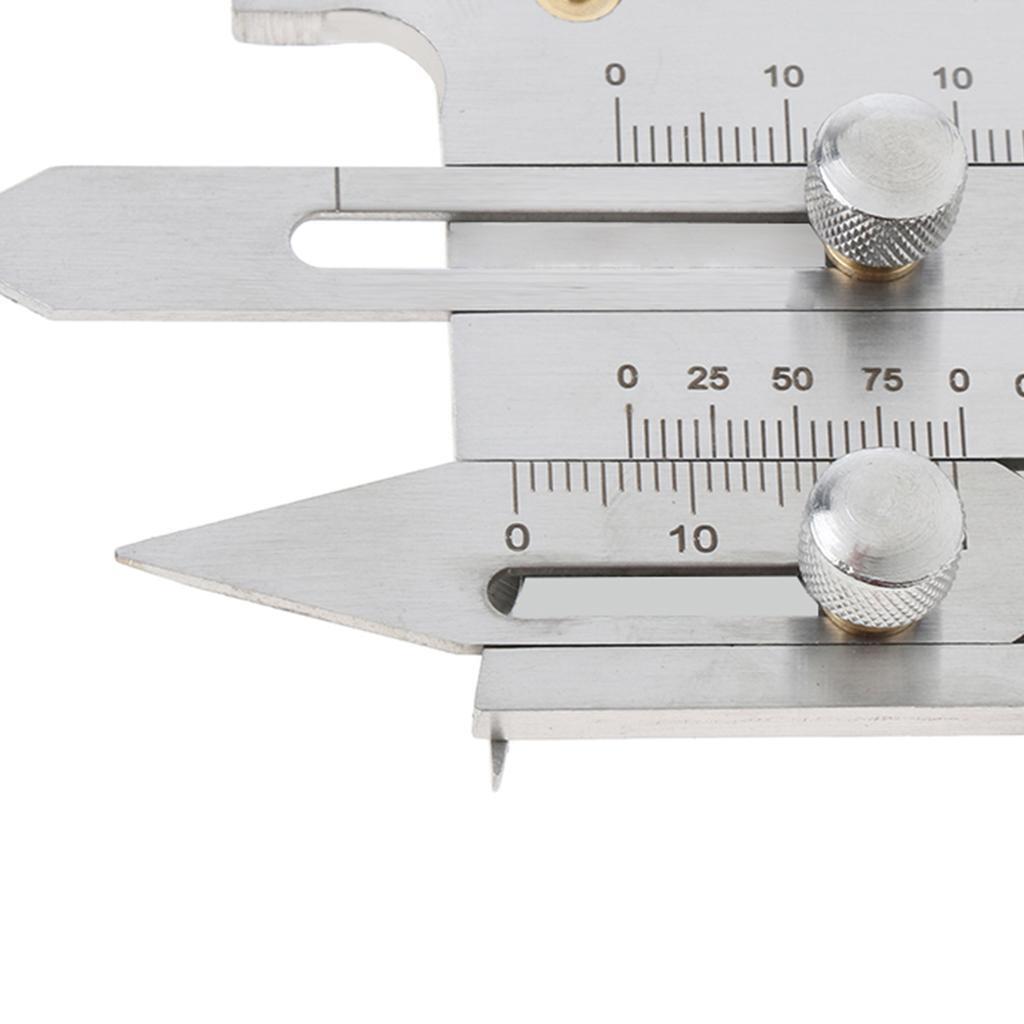

Welding Gauge Model 40 HJC-40
Made of stainless steel
Portable and compact s,easy to use with a wide range of applications
Suitable for measuring the height,bevel angle,width ,gap and undercut depth of welds..
“They are suitable for manufacturing boilers, bridges, chemical machinery, and ships and for inspecting the welding quality of pressure vessels.
Complete with storage box and instructions
The thickness of welding 40mm
Height of flat and fillet weld 12mm
The thickness of fillet weld 15mm
Width of weld seam 40mm

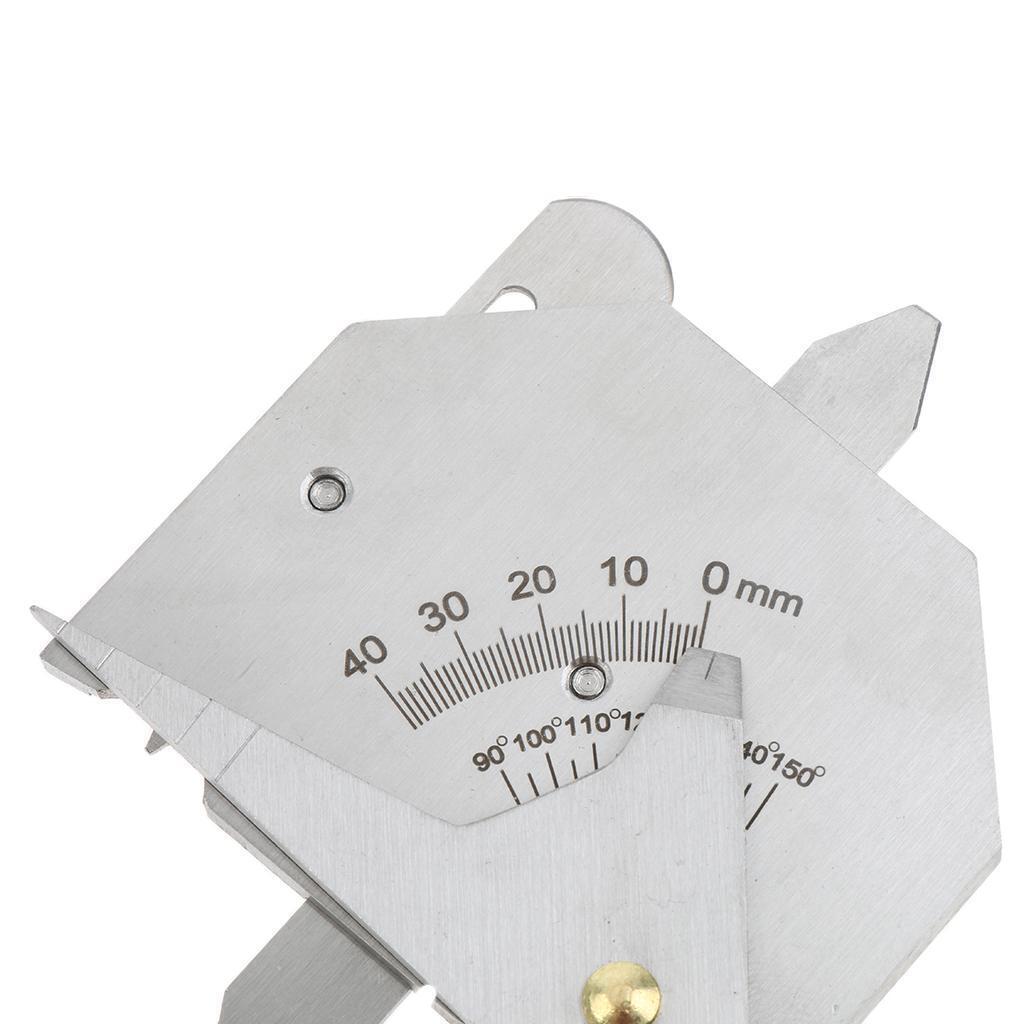

Bevelangle of weldment 90~150°
Undercut depth of weld seam 0~5mm
Gap size 0.5~5mm
Accuracy 0.2 mm
