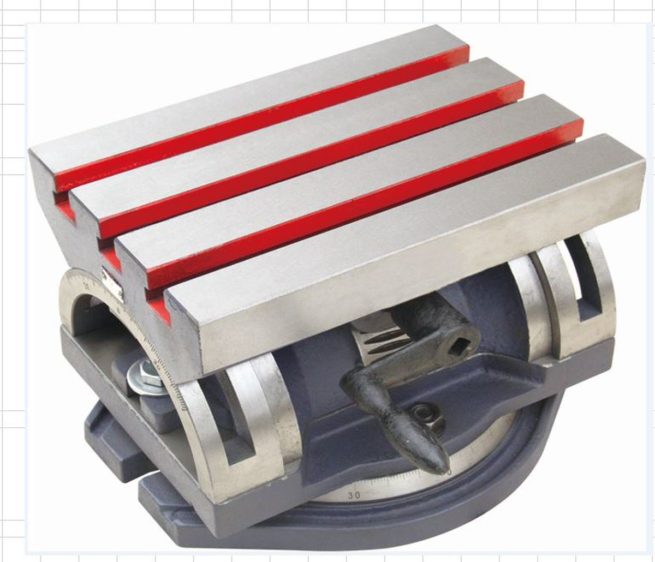

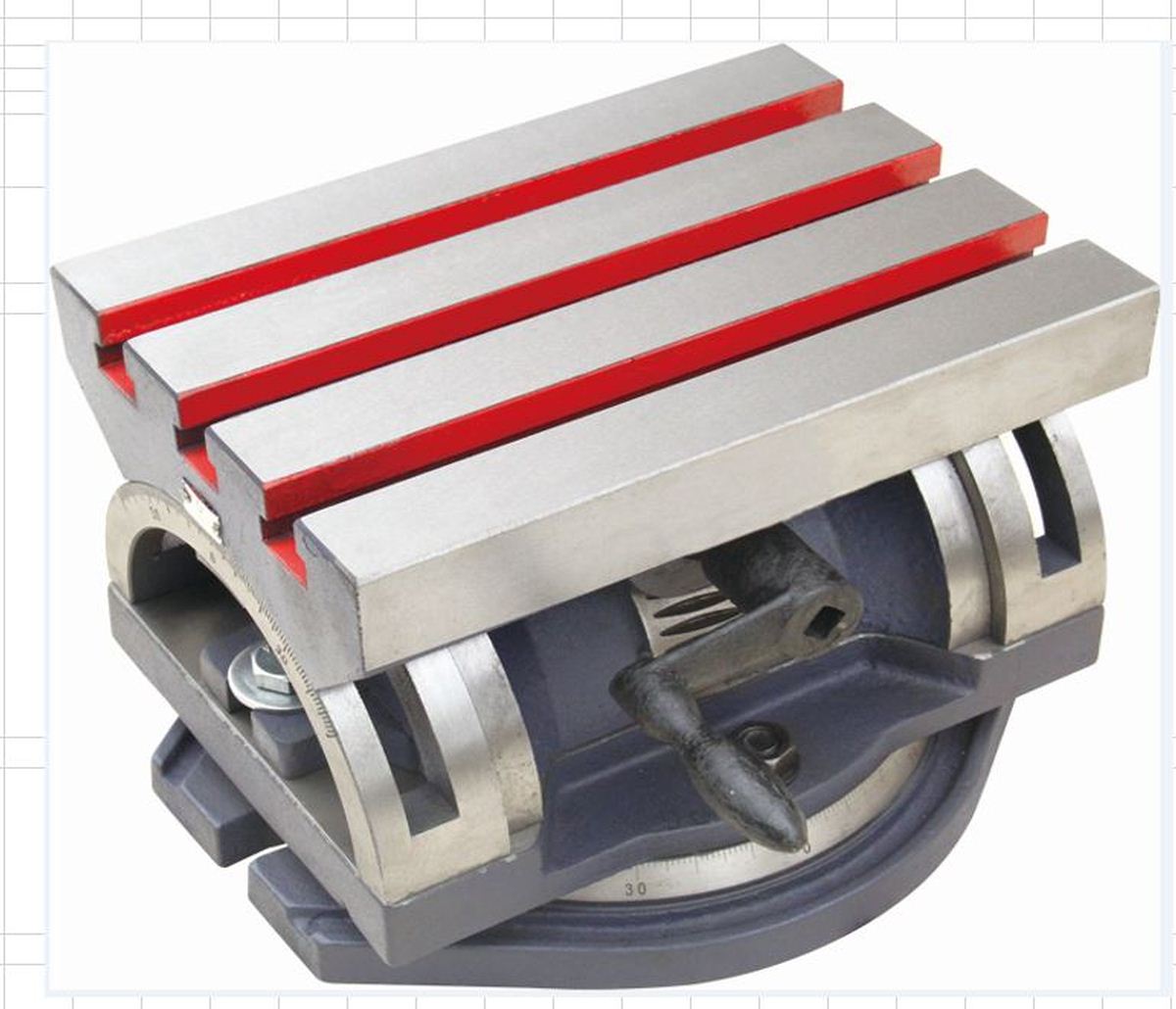

Adjustable Angle Plate with Swivel base 255 x 200mm


Perfect for setting work at any angle during milling or other operations.
2 screw lock setting.saves setup time.
Range-45°to+45°.Graduated in degress for setting purposes.
With swivel base

Angle settings on any machine with no problem, adjustable 45 degress both sides, made of cast iron, low plate height and bigger working space, it includes a swivel base so you can rotate the plate any angle you want. 1. Heavy duty closed grain Cast Iron body.
2. Accurately Machined T-Slots.
3. Ideal for 3 axis jobs on Milling, Drilling, Grinding, Shaping and Jig Boaring, 3 axis movement allows table to be adjusted at any angle. 4.2 screw lock setting.saves setup time.

A 255 mm
B 180 mm
C 50 mm
D 200 mm
E 16 mm
F 124 mm

Weight 39 KG

Price includes delivery to the UK mainland (excl Scottish Highlands). You can add this product to the shopping basket and pay with a credit/debit card, or with PayPal.

Chronos Product Code:  41069012 Category:
